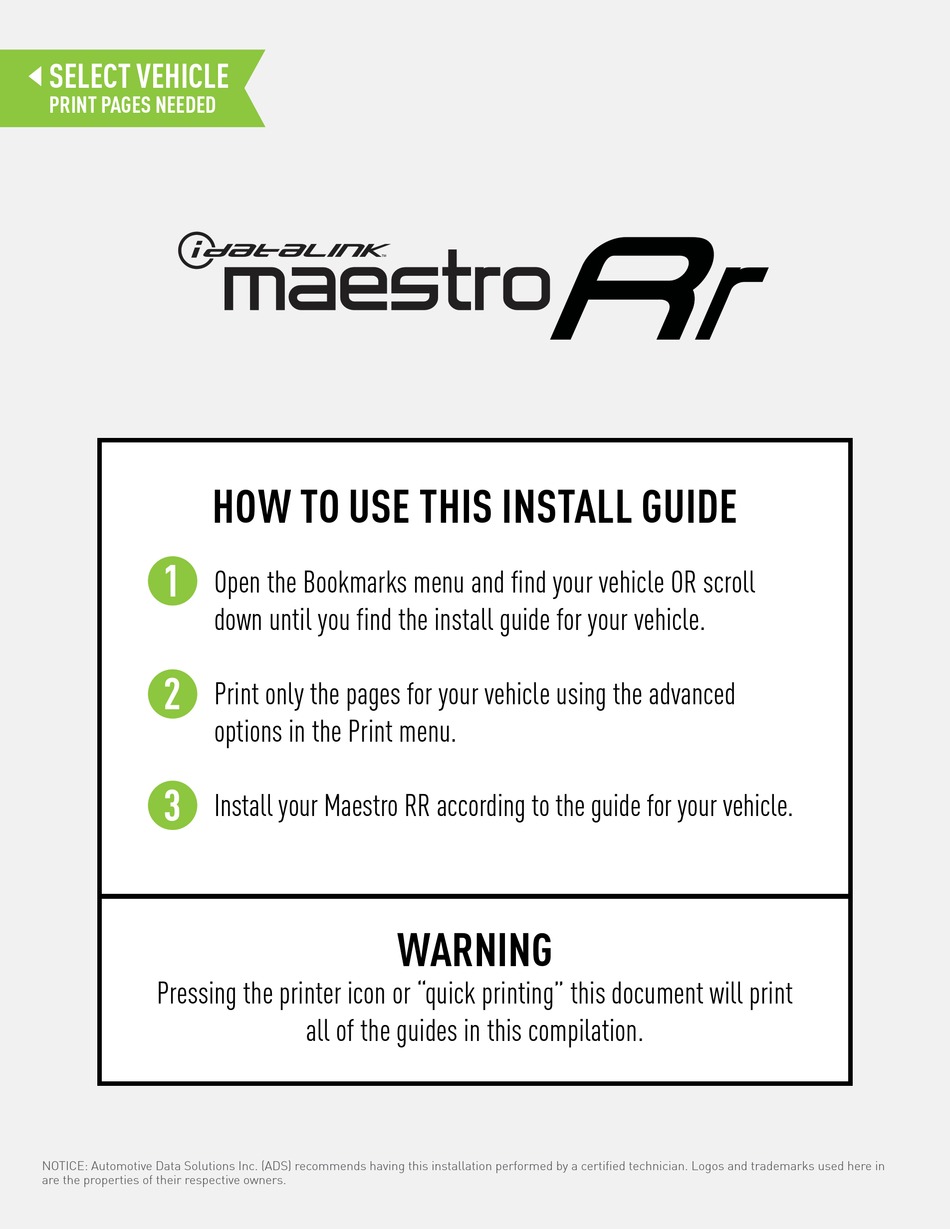

NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certiﬁ ed technician. Logos and trademarks used here in

are the properties of their respective owners.

AVERTISSEMENT

WARNING

all of the guides in this compilation.

TION

Need help?

Do you have a question about the Maestro RR and is the answer not in the manual?

Questions and answers

Summary of Contents for iDataLink Maestro RR

Page 1 Print menu. inscrivant dans les paramètres d’impression (menu PRINT). Install your Maestro RR according to the guide for your vehicle. Installez le Maestro RR en vous référant au guide de votre véhicule. AVERTISSEMENT WARNING En appuyant sur l’icône d’impression ou sur “impression rapide”, tous les Pressing the printer icon or “quick printing”...
Page 2 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 3 Base 2012-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 4 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 5 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 24 pin Yellow/Orange (DATA) Behind radio SWI Feed 24 pin Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 6 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 7 Base 2006-2011 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 8 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 9 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 20 pin White (DATA) Behind radio SWI Feed 20 pin White/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 10 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 11 Base 2007-2010 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 12 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 13 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 20 pin Green (DATA) Behind radio SWI Feed 20 pin Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 14 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 15 Base 2011-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 16 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 17 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 18 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 19 Base 2007-2012 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 20 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 21 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 20 pin Green (DATA) Behind radio SWI Feed 20 pin Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 22 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 23 Base 2010-2015 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 24 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 25 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 20 pin Brown (DATA) Behind radio SWI Feed 20 pin Black/Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 26 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 27 Fe Base 2007-2009 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 28 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 29 (DATA) OBDII connector, under driver side dash CanL 16 pin (DATA) OBDII connector, under driver side dash SWI 1 20 pin Blue (DATA) Behind radio SWI Feed 20 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 30 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 31 Fe Base 2010-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 32 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 33 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 20 pin Blue (DATA) Behind radio SWI Feed 20 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 34 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 35 Base 2006-2010 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 36 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 37 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 38 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 39 Base 2011-2014 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 40 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 41 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 42 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 43 Base 2010-2014 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 44 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 45 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 24 pin Blue (DATA) Behind radio SWI Feed 24 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 46 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 47 Veloster Base 2012-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 48 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 49 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 24 pin Gray (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 50 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 51 Veracruz Base 2007-2008 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 52 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 53 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 24 pin Blue (DATA) Behind radio SWI Feed 24 pin Blue/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 54 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 55 Veracruz Base 2009-2013 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 56 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 57 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 20 pin Blue (DATA) Behind radio SWI Feed 20 pin Blue/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 58 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 59 Kia amanti Base 2007-2009 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 60 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 61 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 24 pin Pink (DATA) Behind radio SWI Feed 24 pin Brown/Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 62 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 63 Kia amanti JBl 2007-2010 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 64 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 65 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 12 pin Yellow/Black (DATA) Behind radio SWI Feed 12 pin Brown Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 66 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 67 Kia Borrego Base 2008-2009 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 68 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 69 (DATA) OBDII connector, under driver side dash CanL 16 pin White (DATA) OBDII connector, under driver side dash SWI 1 06 pin Blue/Black (DATA) Behind radio SWI Feed 06 pin Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 70 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 71 Kia Forte Base 2010-2013 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 72 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 73 OBDII connector, under driver side dash CanL 16 pin White (DATA) OBDII connector, under driver side dash SWI 1 20 pin Green (DATA) Behind radio SWI Feed 20 pin Brown/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 74 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 75 Kia Forte Base 2014-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 76 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 77 OBDII connector, under driver side dash CanL 16 pin Brown (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 78 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 79 Kia Forte Koup Base 2010-2013 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 80 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 81 OBDII connector, under driver side dash CanL 16 pin White (DATA) OBDII connector, under driver side dash SWI 1 20 pin Green (DATA) Behind radio SWI Feed 20 pin Brown/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 82 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 83 Kia Forte Koup Base 2014-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 84 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 85 OBDII connector, under driver side dash CanL 16 pin Brown (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 86 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 87 Kia optima Base 2006-2010 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 88 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 89 OBDII connector, under driver side dash CanL 16 pin Black (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 90 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 91 Kia optima Base 2011-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 92 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 93 OBDII connector, under driver side dash CanL 16 pin Yellow (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 94 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 95 Kia rio Base 2008-2011 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 96 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 97 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 20 pin Red/Orange (DATA) Behind radio SWI Feed 20 pin Yellow/Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 98 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 99 Kia rio Base 2012-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 100 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 101 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 24 pin Pink (DATA) Behind radio SWI Feed 24 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 102 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 103 Kia rio5 Base 2008-2011 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 104 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 105 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 20 pin Red/Orange (DATA) Behind radio SWI Feed 20 pin Yellow/Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 106 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 107 Kia rio5 Base 2012-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 108 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 109 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 24 pin Pink (DATA) Behind radio SWI Feed 24 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 110 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 111 Kia rondo Base 2007-2011 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 112 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 113 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 24 pin White (DATA) Behind radio SWI Feed 24 pin White/Black Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 114 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 115 Kia sedona Base 2009-2012 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 116 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 117 (DATA) OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 20 pin Blue/Black (DATA) Behind radio SWI Feed 20 pin Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 118 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 119 Kia sorento Base 2011-2013 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 120 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 121 (DATA) OBDII connector, under driver side dash CanL 16 pin (DATA) OBDII connector, under driver side dash SWI 1 20 pin Blue (DATA) Behind radio SWI Feed 20 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 122 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 123 Kia sorento Base 2014-2015 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 124 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 125 (DATA) OBDII connector, under driver side dash CanL 16 pin (DATA) OBDII connector, under driver side dash SWI 1 24 pin Blue (DATA) Behind radio SWI Feed 24 pin Orange Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 126 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 127 Kia soul Base 2010-2011 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 128 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 129 OBDII connector, under driver side dash CanL 16 pin Blue (DATA) OBDII connector, under driver side dash SWI 1 20 pin Orange (DATA) Behind radio SWI Feed 20 pin Blue Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 130 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 131 Kia soul Base 2012-2013 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 132 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 133 (DATA) OBDII connector, under driver side dash CanL 16 pin (DATA) OBDII connector, under driver side dash SWI 1 24 pin Orange (DATA) Behind radio SWI Feed 24 pin Blue Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 134 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 135 Kia soul Base 2014-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 136 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 137 OBDII connector, under driver side dash CanL 16 pin Brown (DATA) OBDII connector, under driver side dash SWI 1 24 pin Brown (DATA) Behind radio SWI Feed 24 pin Green Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 138 PROGRAMMED FIRMWARE None ADS-RR(SI)-HYU01-DS iDatalink Maestro RR Radio Replacement Interface iDatalink Compatible Radio NOTICE: Automotive Data Solutions Inc. (ADS) recommends having this installation performed by a certified technician. Logos and trademarks used here in are the properties of their respective owners.
Page 139 Kia sportage Base 2011-2016 WELCOME TABLE OF CONTENTS Wiring Diagram Congratulations on the purchase of your iDatalink Maestro RR Radio replacement solution. You are Vehicle Wire Reference Chart now a few simple steps away from enjoying your new car radio with enhanced features.
Page 140 STEP 3 CONNECT TO AFTERMARKET RADIO GRAY/RED - ACCESSORY (+) INPUT YELLOW YELLOW YELLOW - 12V (+) INPUT BLACK BLACK BLACK - GROUND STEP 4 MAESTRO RR MODULE NOT CONNECTED NOT CONNECTED Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
Page 141 OBDII connector, under driver side dash CanL 16 pin Orange (DATA) OBDII connector, under driver side dash SWI 1 24 pin Blue (DATA) Behind radio SWI Feed 24 pin Gray Behind radio Automotive Data Solutions Inc. © 2016 ADS-RR(SI)-HYU01-DS maestro.idatalink.com...
