Performance Tool W89100 Owner's Manual

CHAIN BREAKER
Stock Number W89100
OWNER'S MANUAL
Please read these instructions carefully
and retain them for future use.
On occasion, after printing of our literature is completed, our manufacturers may make
changes and/or modifications to merchandise which will not be reflected in this manual.
Although we strive to maintain complete and accurate information, it is possible in some
instances, that the product may differ slightly from printed specifications. Illustrations are
intended for reference only. Actual merchandise may vary. Wilmar is not responsible for
typographical errors.
IMPORTANT SAFETY INFORMATION
WARNING!
READ, UNDERSTAND AND FOLLOW ALL INSTRUCTIONS AND WARNINGS BEFORE
OPERATING THIS TOOL. FAILURE TO DO SO MAY RESULT IN PERSONAL INJURY
AND/OR PROPERTY DAMAGE AND WILL VOID WARRANTY.
CAUTION: To prevent personal injury, wear eye protection that
meets ANSI Z87.1 and OSHA standards.
Prevent equipment damage:
Do not use power tools or pipe extensions with this tool, hand
tighten only.
To ensure longer life clean and lubricate threads before each use.
It may be necessary to grind the rivet head on #520 and larger
chains.
WARNING: This product and its packaging contain a chemical
known to the State of California to cause cancer, birth defects, or
other reproductive harm.
WARNING: The warnings, cautions, and instructions discussed in
this instruction manual cannot cover all possible conditions and
situations that may occur. It must be understood by the opera-
tor that common sense and caution are factors which cannot be
built into this product, but must be supplied by the operator. Read
and understand all of the instructions provided in the instruction
manual of this product, as well as, any other tool (s) used with this
product.

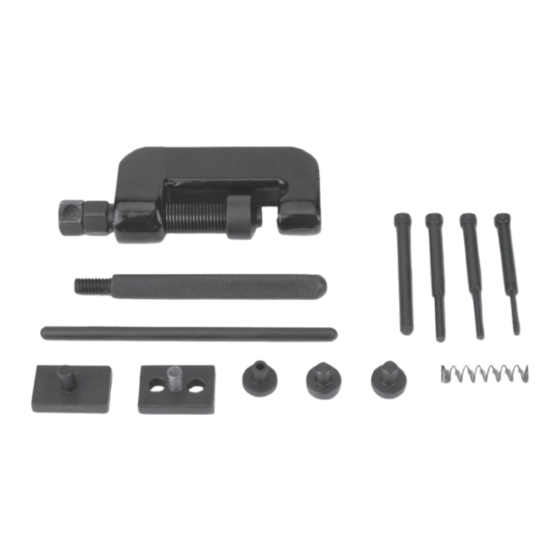

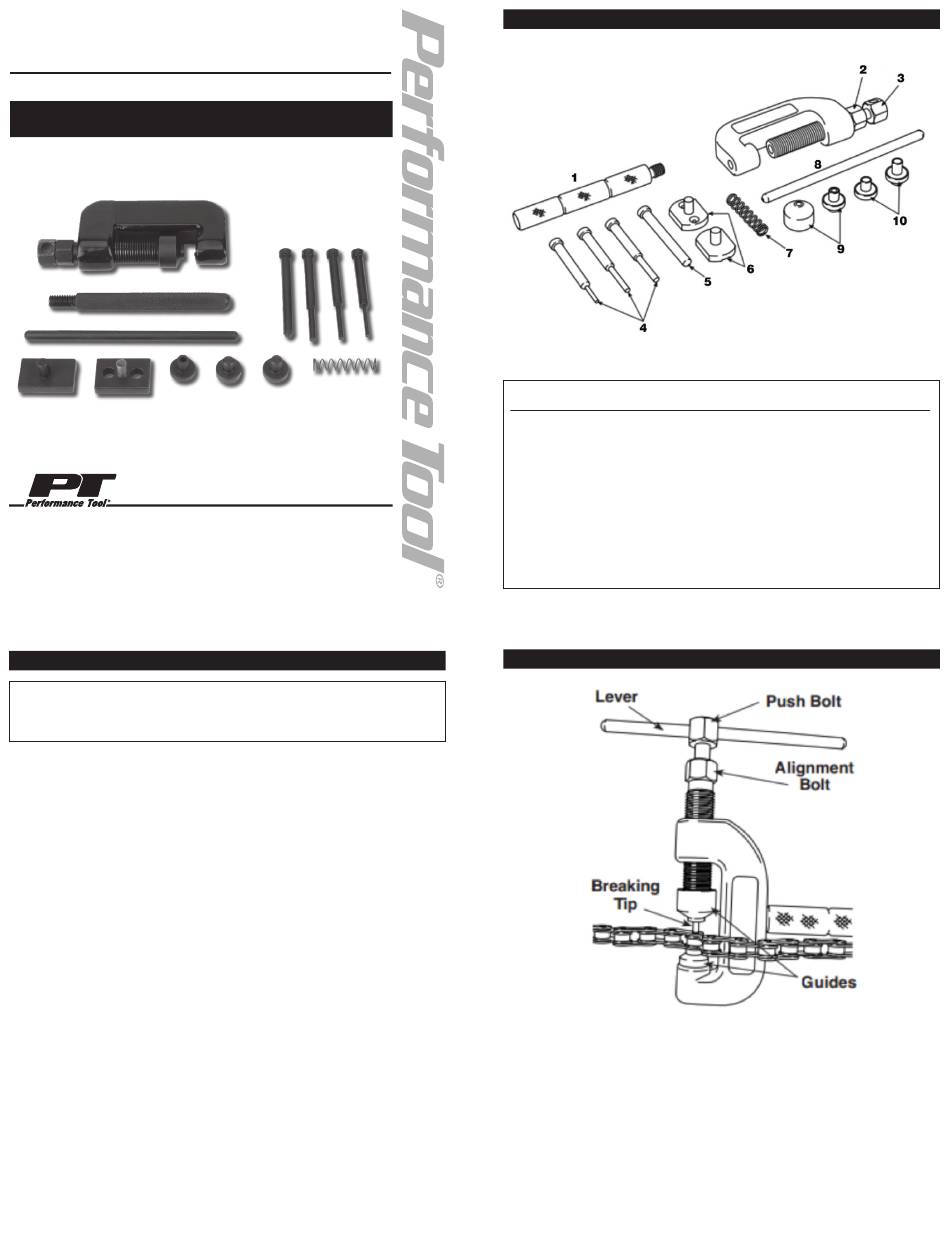

PACKAGE CONTENTS
# Description
1 Handle
2 Alignment Bolt
3 Push Bolt
4 Breaking Tips
5 Rivet Tip
6 Press Plate
7 Spring
8 Lever
9 Guide
10 Anvil
BREAKING YOUR CHAIN
1. Start by assembling the tool, thread the alignment bolt into the
C-frame.
2. Match the breaking tip that best fits your application.
3. Insert the breaking tip into the spring, and slide them both into
the alignment bolt.
4. Thread the push bolt into the alignment bolt above the tip.
5. Position the tool over the chain, be sure the breaking tip aligns
with the chain pin.
6. Tighten the push bolt by hand using the slide handle or a
14-mm wrench.
7. Pushes the chain pin completely out of the chain and through
the hole in the C-frame.
1
Qty.
1
1
1
3
1
2
1
1
2
2
2
3
