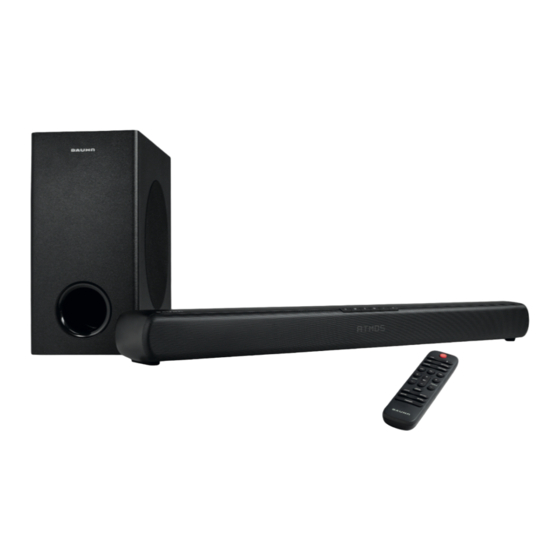

- Page 1 User Manual 2.1 DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER P64172...
-
Page 2: Table Of Contents
Contents Contents About this user manual ................... 5 Explanation of symbols ..................5 Proper use ....................... 7 Safety information ..................8 Setting up the device safely ................8 Power supply ..................... 10 Handling batteries .................... 10 Ambient temperature ..................12 Faults ........................12 Package contents ................... 13 Device overview .....................14 Front view ......................14 Rear view ......................15... - Page 3 Contents Setting the volume....................29 Muting the soundbar ..................29 Selecting equaliser setting ................29 Setting the treble and bass ................29 Setting Vertical Surround sound ..............30 Playback control in USB/Bluetooth® mode ...........30 Selecting folders for MP3 fi les ................30 Maintenance ....................31 Cleaning ......................31 Storing the devices when not in use .............32 Troubleshooting .....................32 Declaration of conformity ................33...
-
Page 4: About This User Manual
About this user manual About this user manual Thank you for choosing our product. We hope you enjoy using it. Read the safety instructions carefully before using the device for the fi rst time. Note the warnings on the device and in the user manual. Always keep the user manual close to hand. - Page 5 About this user manual Read the user manual and observe its instructions. Protection class II Electrical appliances in protection class II are electrical appliances that permanently have double and/or reinforced insulation and do not have any connection options for a protective earth. The housing of an electrical appliance in protection class II that is enclosed in insulated material can partially or fully act as the additional or reinforced insulation.
-
Page 6: Proper Use
Proper use Proper use The device is used to play back audio signals. The soundbar is designed for connecting to televisions. Other devices such as portable CD or MP3 players, computers/notebooks, smartphones and stereo systems can also be connected. The device is only intended for private use and not for industrial/ commercial use. -
Page 7: Safety Information
Safety information Safety information WARNING! Risk of injury due to improper handling. − This device is not intended to be used by people (including children) with reduced physical, sensory or mental capacity or with a lack of experience and/or knowledge unless they use the device under the supervision of a person responsible for their safety or if they have been given instructions about how to use the device safely. - Page 8 Safety information − Do not use the device in areas where there is a risk of explosion. This includes e.g. fuel pumps, fuel storage areas or areas in which corrosive agents are processed. This device should also not be used in areas where the air is contaminated with particles (e.g.
-
Page 9: Power Supply
Safety information Power supply WARNING! Risk of injury due to electric shock! There is a risk of electric shock due to live wires. − The power points must be located near the device and be easily accessible. Lay the cord in such a way that no-one can step on it or trip over it. - Page 10 Safety information WARNING! Risk of chemical burns! The remote control contains two batteries. If these batteries are swallowed, they can cause severe internal chemical burns within 2 hours that may lead to death. − If you suspect that batteries may have been swallowed or entered any part of the body, immediately seek medical attention.
-
Page 11: Ambient Temperature
Safety information − Do not short-circuit batteries. − Do not throw batteries into a fi re. − Ensure the correct polarity (+/-) when inserting the batteries. − Remove fl at batteries from the device. − If you are not going to use the device for an extended period, remove the batteries. -
Page 12: Package Contents
Package contents Package contents DANGER! Risk of choking and suffocation! There is a risk of choking and suffocation through swallowing or inhaling small parts or plastic wrap. − Keep packaging away from children. − Do not allow children to play with the packaging material. −... -
Page 13: Device Overview
Device overview Device overview Front view Standby LED Display Control buttons Switch on the soundbar / switch to standby mode Select audio source Quick press: Select Bluetooth audio source Press and hold: Put soundbar in Bluetooth pairing mode, disconnect active Bluetooth connection Mute / unmute soundbar Decrease volume Increase volume... -
Page 14: Rear View
Device overview Rear view Attachment points for wall brackets Connections 13 14 Connection socket for power cord (100–240 V 50/60 Hz) COAXIAL Coaxial input socket for TV and other audio output devices OPTICAL Optical input socket for TV and other audio output devices USB port (5 V 500 mA) for playing MP3 fi... -
Page 15: Subwoofer (Rear View)
Device overview HDMI OUT Output for ARC/eARC-compatible TV and other audio output devices TV eARC/ARC HDMI 1 Input for DVD player and other audio output devices HDMI 2 Input for DVD player and other audio output devices Subwoofer (rear view) Connection socket for power cord (100–240 V 50/60 Hz) Pairing LED... -
Page 16: Remote Control
Device overview Remote control Switch on the soundbar / switch to standby mode Select Bluetooth audio source OPT/COA Select Optical / Coaxial audio input HDMI eARC Select HDMI eARC audio input Mute / unmute soundbar TREBLE +/- Increase / decrease treble VERTICAL Switch Vertical... -
Page 17: Preparation For Use
Preparation for use BASS +/- Increase / decrease bass Play previous / next track, fast rewind / forward within a track Start / pause playback In Bluetooth pairing mode: Restore Bluetooth connection to the last paired device HDMI 1/2 Select HDMI 1 / HDMI 2 audio input Select USB audio input Select AUX audio input Preparation for use... -
Page 18: Setting Up / Mounting Soundbar
Preparation for use Setting up / mounting soundbar You have the option of using the soundbar either on a horizontal surface (Fig. 2 Version A) or mounted on a wall using the supplied wall bracket (Fig. 2 version B). Version A – using soundbar on a horizontal surface NOTICE! Risk of damage! There is a risk that the devices may be damaged if not set up... - Page 19 Preparation for use Version B – fi xing soundbar onto a wall WARNING! Risk of injury due to electric shock! There is a risk of electric shock due to live wires. − Select a suitable location to mount the device and make sure that you do not damage concealed electrical wires or installation cables when drilling.
-
Page 20: Connecting External Devices
Connecting external devices − Insert a plug into each of the drill holes and screw the wall brackets into the wall as shown in Fig. 4. Make sure that the slots for hanging the soundbar are pointing up, as shown opposite. −... -
Page 21: Connecting External Device Via Aux
Connecting external devices Connecting external device via AUX Audio cable with 2 × 3.5 mm diameter jacks To connect an audio output device to the soundbar via the device’s headphone out socket, you need an audio cable with 2 × 3.5 mm diameter jacks (included). −... -
Page 22: Connecting An External Device Via The Coaxial Socket
Connecting external devices If you do not hear an audio signal, switch the audio output format to PCM mode (Pulse Code Modulation) on your audio output device. Connecting an external device via the coaxial socket Digital amplifi ers or televisions with coaxial digital output can be connected to the soundbar via the COAXIAL socket. -
Page 23: Connecting Television Via Hdmi Arc/Hdmi Earc
Connecting external devices HDMI eARC (Enhanced Audio Return Channel) Since HDMI standard 2.1, signifi cantly higher bandwidths and speeds are possible with eARC for audio and video transmission. In order to use HDMI eARC functions, all connected components must support HDMI eARC. -
Page 24: Connecting Usb Storage Devices
Setting up the soundbar Also consult the user manuals for your external devices. Connecting USB storage devices It is possible to play MP3 fi les from an external USB Flash drive via the USB port. Proceed as follows to connect a USB storage device: −... -
Page 25: Switching On The Soundbar / Switching To Standby Mode
Setting up the soundbar Switching on the soundbar / switching to standby mode − Press the button on the remote control or on the soundbar to switch on the soundbar. The soundbar switches on and starts up. This process takes a few seconds; during this time the display fl... -
Page 26: Connecting An External Device Via Bluetooth
Connecting an external device via Bluetooth® Connecting an external device via Bluetooth® Bluetooth operation allows the wireless reception of audio signals from an external Bluetooth-capable audio output device. Make sure that the distance between the two devices is no more than 8 metres. Only one Bluetooth device can ever be connected to the soundbar at the same time. -
Page 27: Operation
Operation − To restore the Bluetooth connection to the most recently paired device, press the button on the remote control. You will hear the announcement “PAIRED” from the soundbar as soon as the connection is restored. BT appears on the display. If you have connected the soundbar to a Bluetooth device that supports the A2DP profi... -
Page 28: Setting The Volume
Operation Setting the volume − Set the desired playback volume using the +/- buttons on the remote control or using the + buttons on the soundbar: • + : Increase volume • - : Decrease volume The current volume setting is shown on the display Muting the soundbar −... -
Page 29: Setting Vertical Surround Sound
Operation Setting Vertical Surround sound Activate vertical surround sound to output the sound not only horizontally but also vertically through the soundbar. This function provides you with room-fi lling sound without the need for additional speakers in the room. You can set vertical surround sound using the VERTICAL SURROUND button the remote control. -
Page 30: Maintenance
Maintenance Maintenance WARNING! Risk of injury due to electric shock! − Never try to open or repair the devices yourself. There is a risk of electric shock. Please contact our Service Centre if you are having technical problems with your device. -
Page 31: Storing The Devices When Not In Use
Storing the devices when not in use Storing the devices when not in use − If you are not going to use the devices for an extended period, disconnect them from mains power and store them in a cool, dry place. −... -
Page 32: Declaration Of Conformity
Declaration of conformity Declaration of conformity MEDION AG hereby declares that the product P64272 (MD 44272) conforms to all relevant Australian requirements. Trademark information The HDMI logo and High-Defi nition Multimedia Interface are registered trademarks of HDMI Licensing LLC. The Bluetooth® word mark and logos are registered trademarks of Bluetooth SIG Inc. and are used by the manufacturer under licence. -
Page 33: Technical Data
Technical data Technical data General data Mains connection 100–240 V ~ 50/60 Hz Connections: 1 × 3.5 mm jack audio input 1 × digital audio input (optical) 1 × digital audio input (coaxial) 1 × HDMI (eARC/ARC) with CEC 2 × HDMI Mains cable connection Supported Dolby formats: Dolby Digital, Dolby Digital Plus, Dolby... -
Page 34: Privacy Statement
Privacy statement Bluetooth® Specifi cation: V4.2, Class II Profi les: A2DP, AVRCP Max. transmission power: -1.2 dBm Frequency: 2402 MHz ~ 2480 MHz Range: Max. 8 m (depending on ambient conditions) Privacy statement Dear customer, We wish to inform you that we, MEDION AG, Am Zehnthof 77, D-45307 Essen, Germany process your personal data as a data controller. -
Page 35: Service Information
Service information Service information Please contact our Customer Service team if your device ever stops working the way you want or expect it to. There are several ways for you to contact us: • In our Service-Community, you can meet other users, as well as our staff, and you can exchange your experiences and pass on your knowledge there. -
Page 36: Legal Notice
Legal Notice Legal Notice Copyright © 2021 Date: 17.03.2021 All rights reserved. Version.: V7.0 This user manual are protected by copyright. Mechanical, electronic and any other forms of reproduction are prohibited without the written permission of the manufacturer. Copyright is owned by the distributing company: MEDION AG Am Zehnthof 77 45307 Essen... -
Page 37: Warranty Details
2.1 DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER Warranty Details REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion. -
Page 38: Repair And Refurbished Goods Or Parts Notice
2.1 DOLBY ATMOS SOUNDBAR WITH WIRELESS SUBWOOFER Repair and Refurbished Goods or Parts Notice REGISTER YOUR PURCHASE AT www.aldi.com.au/en/about-aldi/product-registration/ TO KEEP UP-TO-DATE WITH IMPORTANT PRODUCT INFORMATION Unfortunately, from time to time, faulty products are manufactured which need to be returned to the Supplier for repair. - Page 40 Customer Service Hotline. Made in China BAUHN is a registered trademark of ALDI Stores DISTRIBUTED BY: ALDI STORES 1 SARGENTS ROAD MINCHINBURY NSW 2770 www.aldi.com.au...
