Page 1: User Manual

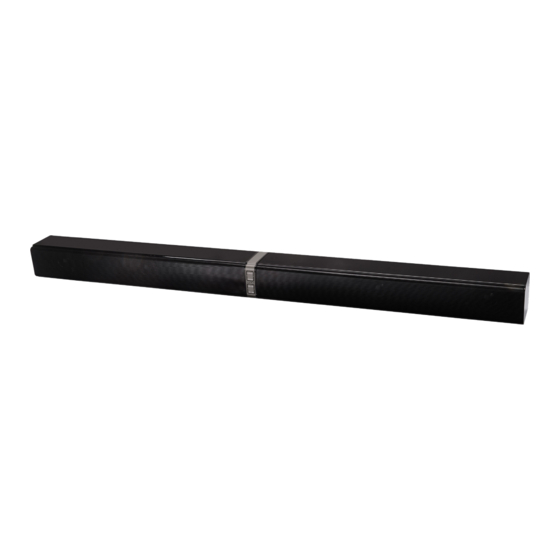

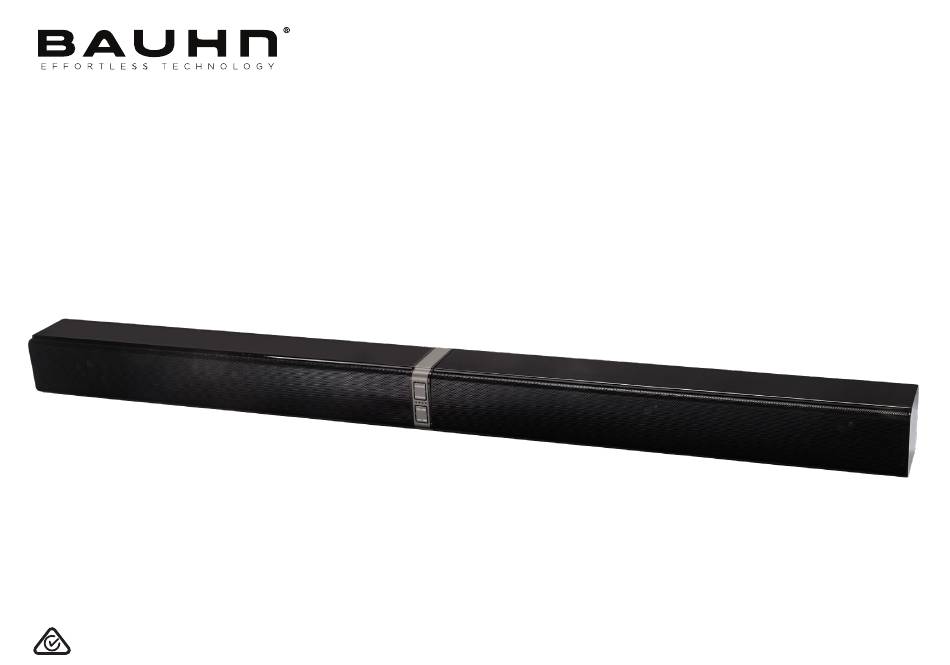

2.0 Channel Soundbar with Bluetooth Wireless Technology ® MODEL: ASB-0120 User Manual... -
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new Bauhn product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Operation General Operation Unpack and Prepare NFC Operation What's in the box Bluetooth ® Important Tips Pairing Bluetooth Devices ® Installation Bluetooth Playback ® Wall mounting instructions Troubleshooting Connect to power Controls and Connections Specifications Get to know your Soundbar Compliance and Rear Ports on the Soundbar Responsible Disposal... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new Soundbar, check you have everything: A. 2.0 Channel Soundbar B. Remote Control C. Wall Mount Bracket (2) D. Base Stand (2) E. RCA to 3.5mm Audio Cable F. 3.5mm to 3.5mm Audio Cable G. AC Adaptor H. -
Page 5: Important Tips
Important Tips • Place the soundbar on a level surface. • Place the soundbar away from any source that may generate heat or vibrations. • Make sure there is enough space around the soundbar for airflow. • The remote control works up to 6 metres away from the soundbar. •... -
Page 6: Installation
Installation This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Horizontal Vertical Place on a secure, flat surface. Attached the included Place on a secure, flat surface. Make sure the soundbar rubber feet to the base and make sure no other area of is standing on its rubber feet (on the left and right sides the bottom of soundbar is touching the surface. - Page 7 • Wall-mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall.
-
Page 8: Wall Mounting Instructions
Wall mounting instructions Fix the supplied wall-mounting brackets to the bracket fixing holes on the back of the soundbar with the supplied short screws. Use a pencil to make drill hole marks on the wall for the anchors. Make sure the marks are 667mm level before drilling. - Page 9 Slide the soundbar onto the screws which are fixed to the wall. Make sure the soundbar is secure and attached firmly to the wall. Insert plastic anchors into the holes and push in until they are flush with the wall. Drive the screws into the plastic anchors and tighten until the screw head is approximately 3mm from the wall.
-
Page 10: Connect To Power
Connect to power Make sure the power switch is switched off at the power outlet until you have finished connecting your cables. Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. 10 | UNPACK AND PREPARE... -
Page 11: Controls And Connections
Controls and Connections Get to know your Soundbar NFC (Near Field Communication) Sensor. 2. Speakers. /MODE: Press to turn on. Press to select your preferred input source. Press and hold to put in Standby mode. 4. PAIR / : Press to pair your Bluetooth device. Press to select the play or pause function (in Bluetooth / USB mode only). -
Page 12: Rear Ports On The Soundbar
Rear Ports on the Soundbar Before connecting the AC adapter, ensure you have completed DC 18V 2A all other connections. POWER Connect the AC adapter to the soundbar DC IN socket first, then plug in the AC adapter to the mains supply socket. The ARC (Audio Return Channel) function allows you to send HDMI (ARC) audio input from an ARC-compliant TV to an ARC-compliant... - Page 13 Rear Ports on the Soundbar HDMI (ARC) To use the ARC function, make sure the soundbar's TO TV (ARC) socket is connected via HDMI cable (not included) to the HDMI (ARC) socket of your ARC compliant TV. Then just use your TV remote control to adjust the volume output (VOL +/–...
-
Page 14: Remote Control
Remote Control Setup To activate the battery and use the remote control, pull out the plastic tab that separates the battery from the contacts inside the compartment. Battery Replacement Battery Replacement If the remote control unit is no longer working even If the remote control unit is no longer working even when it is operated near the soundbar, you will need to when it is operated near the soundbar, you will need to... - Page 15 Precautions When Using Batteries • Do not use old and new batteries together. • Do not use different types of batteries (e.g. Manganese and Alkaline batteries) together. • Remove the batteries from the remote if you do not intend to use it for a long time. •...
-
Page 16: Using The Remote Control
Using the Remote Control To use the remote, point it towards the remote sensor at the front of the soundbar. The remote will not operate if its path is blocked. The remote has a range of up to about 6 metres from the soundbar at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 17: Remote Overview
Tempo 修改： 1. 对调了USB跟HDMI的按键位置，需要软件相应调整； Remote overview 2. 调整了Optical， AUX 和蓝牙按钮的丝印； Note: 实际每个按钮的位置不受改文件约束，工厂根据实际位置进行调整。以前订 实际长度过长，导致下方凸出遥控磨具，需要将下方剪切0.5mm 以确保能完全贴合 : Switch the unit to ON or Standby. MUTE : Mute/Unmute. EQ : Select a preset sound effect. USB : Switch to USB playback mode. VOL + : Increase the volume level. : In Bluetooth or USB mode, skip : In Bluetooth or USB mode, skip to to the next track. -
Page 18: Operation
Operation NFC Operation Pair your NFC enabled mobile device directly with this unit with just a single tap. General Operation Activate NFC on your mobile device. Function Action Switch the soundbar to Bluetooth mode. 3 Tap the mobile device on the icon of the unit. -
Page 19: Bluetooth
Activate Bluetooth on your compatible device, and set it mode automatically. to search for compatible devices. Select 'ASB-0120' from the list of found devices. Note: Only one playback unit can be connected to If a mobile phone on which you are playing music the speaker. -
Page 20: Bluetooth ® Playback
Bluetooth Playback ® Function Action Increase the volume Press the VOL button on the unit or on the remote. Decrease the volume Press the VOL button on the unit or on the remote. Play/Pause Press on the remote. Skip/Rewind Press on the remote to skip tracks. -
Page 21: Troubleshooting
Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the AC adapter is properly connected. No power • Ensure that there is power at the AC outlet. • Press the button on the soundbar or remote to turn the unit on. • Use the remote control closer to the unit. Aim directly at the sensor on the front of the unit. Remote control •... - Page 22 Problem Solution • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. • In the TV or external device setting menu, turn on the ARC function and the CEC function. •...
-
Page 23: Specifications
AC adapter – output power DC 18V 2A rating Speaker output 2 x 15W RMS Remote control operation range Up to 6 metres, 30 degrees Bluetooth pairing name ASB-0120 For Technical Support: Bluetooth pairing password 0000 Ph: 1300 886 649 Bluetooth version W: www.tempo.org DC 5V, 500mA (for playback only, not USB output E: info@tempo.org... -
Page 24: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 60065 to ensure the safety of the materials and can usually be recycled. Please ensure product. -
Page 25: Warranty Information
Warranty Information Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 26: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 27 Notes...
- Page 28 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
