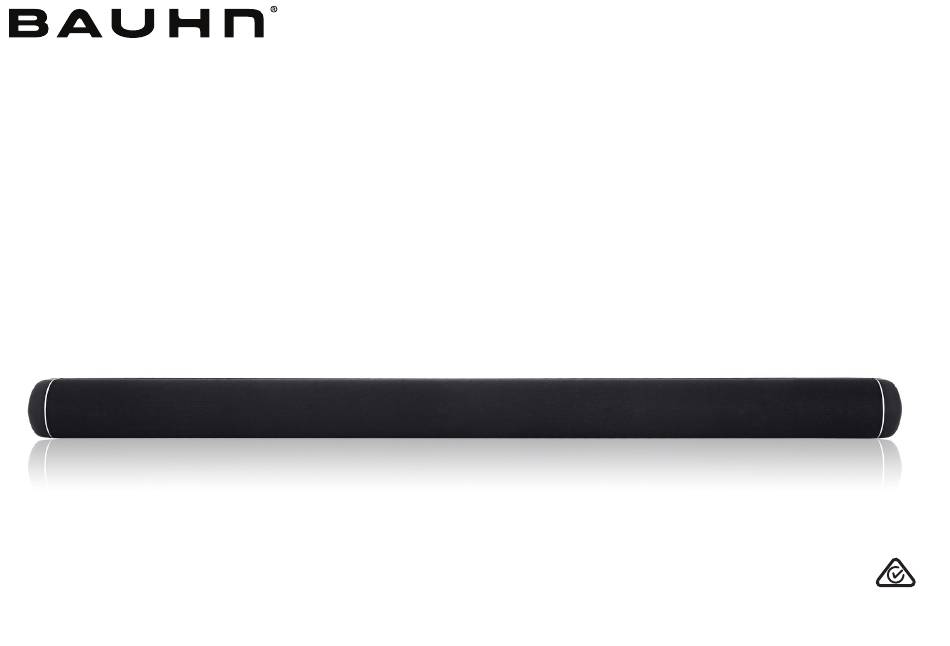

- Page 1 2.0 Channel Soundbar MODEL: AFSB-0920-B User Manual...
-
Page 2: Welcome
Welcome Congratulations on your purchase! This manual tells you all you need to know about using your new BAUHN product. ® Please take special note of any important safety and usage information presented with the symbol. All products brought to you by BAUHN are manufactured to the highest standards of performance and safety and, ®... -
Page 3: Table Of Contents
Contents Welcome Operation General Operation Unpack and Prepare Bluetooth ® What's in the box Pairing Bluetooth Devices ® Important Tips Bluetooth Playback ® Installation - Free Standing Troubleshooting Installation - Wall Mounted Wall Mounting Instructions Specifications Connect to Power Compliance and Responsible Disposal Controls and Connections Warranty Information Get to know your Soundbar... -
Page 4: Unpack And Prepare
Unpack and Prepare What's in the box Before setting up your new Soundbar, check you have everything: A. 2.0 Channel Soundbar B. Remote Control C. AAA Activ Energy Batteries D. 3.5mm to 3.5mm Audio Cable E. Optical Audio Cable F. AC Power Adaptor G. -
Page 5: Important Tips
Wall Mount Installation Kit The illustration below shows the contents of the wall mount installation kit. These are the parts you will need when wall mounting the soundbar. Some parts are not shown at the same scale. Note: If you choose to wall mount the soundbar, you will find that a standard HDMI cable will not fit properly. Please contact our After Sales Support on 1300 886 649 and we will provide you with a HDMI adaptor. -
Page 6: Installation - Free Standing
Installation - Free Standing This soundbar can sit free-standing on a surface, or it can be mounted to a wall. Place on a secure, flat surface. Make sure the soundbar is standing on its rubber pads (on the left and right sides of the soundbar) and no other area of the bottom of the soundbar is touching the surface. -
Page 7: Installation - Wall Mounted
Installation - Wall Mounted Wall mounting instructions are on the following pages. • Wall mounted installation must be carried out by qualified personnel only. Incorrect assembly can result in severe personal injury and property damage! If you intend to install this product yourself, you must check for installations such as electrical wiring and plumbing, which may be hidden inside or behind the wall. -
Page 8: Wall Mounting Instructions
Wall Mounting Instructions Fix the supplied wall-mounting brackets to the bracket fixing holes on the back of the soundbar with the supplied short screws. Affix the brackets as shown in the illustration (left). Note: The 2 inner screws on each side of the soundbar needs to be pushed through. - Page 9 Slide the soundbar onto the fixed screws. Make sure that the soundbar is secure and attached firmly to the wall. For a concrete or brick wall: Insert the supplied plastic anchors into the holes and push in until they are flush with the wall. Drive the supplied long screws into the plastic anchors and tighten until the screw head is approximately 3mm from the wall.
-
Page 10: Connect To Power
Connect to Power Make sure the power switch is switched off at the power outlet until you have finished connecting your cables. Rear view Don't forget to plug in the soundbar to the power outlet. Leave the power switched off until installation is finished. -
Page 11: Controls And Connections
Controls and Connections Get to know your Soundbar LED status indicator: • Red: Standby mode Front view • White: HDMI (ARC) mode • Cyan: OPTICAL mode • Green: AUX mode Remote control sensor • Purple: COAXIAL mode • Yellow : USB mode •... -
Page 12: Rear Ports On The Soundbar
Rear Ports on the Soundbar OPTICAL COAX HDMI (ARC) DC IN Connect an Optical audio cable (included) to the OPTICAL OUT OPTICAL SOUND socket of your device (e.g. TV, DVD player) and the OPTICAL socket on the soundbar. Connect a Coaxial cable (not included) to the COAXIAL OUT socket COAXIAL SOUND of your device (e.g. - Page 13 Rear Ports on the Soundbar HDMI (ARC) To use the ARC function, make sure the soundbar's HDMI (ARC) socket is connected via a HDMI cable (not included) to the HDMI (ARC) socket of your ARC compliant TV. Then just use your TV's remote control to adjust the volume output (VOL +/–...
-
Page 14: Remote Control
Remote Control Setup Insert two AAA size batteries according to the polarity markings (+ / -) inside the compartment. Make sure the batteries are correctly aligned and properly pushed into AAA size place. batteries included Precautions When Using Batteries • Do not use old and new batteries together. •... -
Page 15: Using The Remote Control
Using the Remote Control To use the remote control, point it towards the remote control sensor at the front of the soundbar. The remote control will not operate if its path is blocked. The remote control has a range of up to about 6 metres from the soundbar at an angle of up to 30 degrees to either side of the sensor, as illustrated below. -
Page 16: Remote Control Overview
Remote Control Overview (POWER): Switch the soundbar On or : Switch to Bluetooth mode ® Standby : Skip to the next track ARC: Switch to HDMI (ARC) mode : Start or pause playback : Increase the volume level : Press to choose the movie sound effect : Skip to the previous track : Decrease the volume level... -
Page 17: Operation
Operation General Operation Function Action Press the (POWER/SOURCE) button on the right side of the soundbar, or Turn the Soundbar On (POWER) button on the press the remote control. Press and hold the (POWER/ SOURCE) button on the soundbar or Turn the Soundbar Off press the (POWER) button on the... -
Page 18: Bluetooth
® mode automatically. it to search for compatible devices. Select 'BAUHN AFSB-0920' from the list of found devices. If a mobile phone on which you are playing music Note: Only one playback unit can be connected to receives a call, the music will be interrupted. -
Page 19: Bluetooth ® Playback
Bluetooth Playback ® Function Action Increase the Volume Press the button on the soundbar or the button on the remote control. Decrease the Volume Press the button on the soundbar or the button on the remote control. Play/Pause Press the button on the remote control. -
Page 20: Troubleshooting
Troubleshooting If you have problems with the soundbar, check below for advice. If you don't find a solution here, contact After Sales Support on 1300 886 649. Problem Solution • Ensure that the AC power adaptor is properly connected. • Ensure that there is power at the DC outlet. No power •... - Page 21 Problem Solution • Make sure the input source is set to ARC; the LED will be white. • Make sure your TV or external device supports ARC function and connect the HDMI cable to the ARC port of the TV or external device. •...
-
Page 22: Specifications
For Technical Support: Bluetooth pairing operation ® Up to 10 metres Ph: 1300 886 649 range – distance W: www.tempo.org Bluetooth pairing name BAUHN AFSB-0920 ® E: info@tempo.org Bluetooth pairing password 0000 ® Distributed by Tempo (Aust) Pty Ltd, Bluetooth version ®... -
Page 23: Compliance And Responsible Disposal
Compliance and Responsible Disposal Packaging Compliance The packaging of your product has been This product complies with the Australian Safety selected from environmentally friendly Standard AS/NZS 62368-1 to ensure the safety of the materials and can usually be recycled. Please ensure product. -
Page 24: Warranty Information
Warranty Information The product is guaranteed to be free from defects in workmanship and parts for a period of 12 months from the date of purchase. Defects that occur within this warranty period, under normal use and care, will be repaired, replaced or refunded at our discretion, solely at our option with no charge for parts and labour. -
Page 25: Repair And Refurbished
Repair and Refurbished Goods or Parts Notice Unfortunately, sometimes faulty products are manufactured, which need to be returned to the supplier for repair. Please be aware that if your product is capable of retaining user-generated data (such as files stored on a computer hard drive, telephone numbers stored on a mobile telephone, songs stored on a portable media player, games saved on a games console or files stored on a USB memory stick) during the process of repair, some or all of your stored data may be lost. - Page 26 Notes...
- Page 27 Notes...
- Page 28 Warranty returns Should you for any reason need to return this product for a warranty claim, make sure to include all accessories with the product. Product does not work? If you encounter problems with this product, or if it fails to perform to your expectations, please contact our After Sales Support Centre on 1300 886 649 before returning it to the store for a refund.
