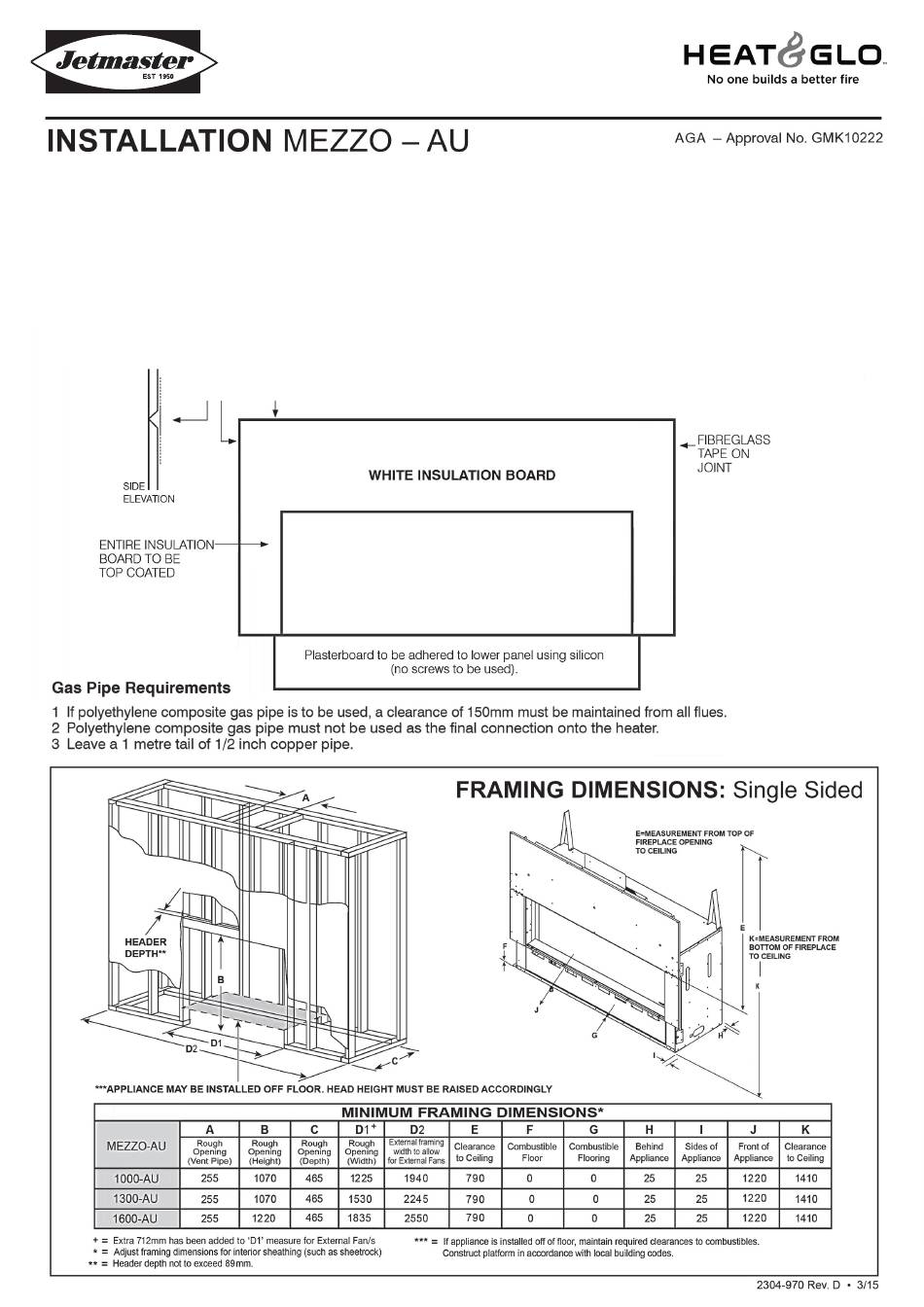

Jetmaster HEAT & GLO MEZZO-AU Installation

NOTE - Unit must be installed (and gas connected) prior to plaster sheeting.
• Position unit into framed opening with minimum clearances as per specifications on following pages. Frame opening
height is from the bottom of unit. This unit is designed to be raised from the floor.
• Run flues in accordance with the options in the installation manual.
• Butt join plasterboard and white insulation board at top of heater. USING ONLY FIBREGLASS TAPE finish insulation
board to plasterboard as per normal plasterboard procedures. Ensure that top coat finish extends down to top of
heater, as indicated in diagram below. Insulation board will remain exposed as part of the finished plaster face.
• Unit should always be operated with External Fan in the ON position. Failure to run the fan may result in hairline cracks
appearing in the plaster above the unit.
V-JOINT TO PLASTERBOARD & WHITE INSULATION BOARD, BUTT JOIN EACH AND BACK FILL WITH BASE COAT.
OVERLAY JOIN WITH FIBREGLASS TAPE AS FIRST JOINT, THEN TROWEL BASE AND TOP COAT OVER.
