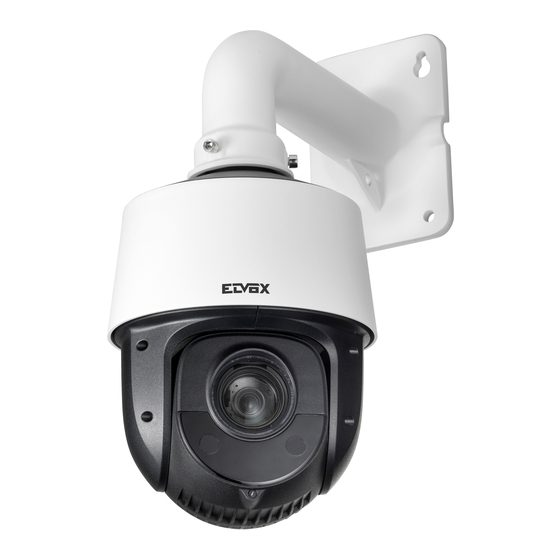

Vimar ELVOX CCTV 46235.015B Installation And Operation Manual

Vimar ELVOX CCTV 46235.015B Installation And Operation Manual

Graphic user interface (gui) for ip speed dome
Hide thumbs Also See for ELVOX CCTV 46235.015B:

Advertisement

Quick Links

Installation and operation manual
Graphic User Interface (GUI) for IP Speed Dome

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ELVOX CCTV 46235.015B and is the answer not in the manual?

Questions and answers

Summary of Contents for Vimar ELVOX CCTV 46235.015B

  • Page 1 Installation and operation manual Graphic User Interface (GUI) for IP Speed Dome...
  • Page 2 Graphic User Interface (GUI) for IP Speed Dome Cautions - Please use the specified power supply to connect. - Do not attempt to disassemble the camera; in order to prevent electric shock, do not remove screws or covers. - There are no user-serviceable parts inside. Please contact the nearest service center as soon as possible if there is any failure.
  • Page 3: Table Of Contents

    Graphic User Interface (GUI) for IP Speed Dome Contents 1 Introduction .................................3 2 IE Remote Access ..............................3 2.1 LAN ................................3 2.1.1 Access through IP-Tool ........................3 2.1.2 Directly Access through IE ......................4 2.2 WAN .................................6 3 Remote Preview ..............................8 4 Menu Setup ................................13 4.1 System Information ..........................13 4.2 System Setup ............................13 4.2.1 Auto PT Flip ...........................14...
  • Page 4 Graphic User Interface (GUI) for IP Speed Dome 5.4.2 Alarm In ............................34 5.4.3 Alarm Out ............................35 5.4.4 Alarm Server ..........................36 5.4.5 Smart Tracking ..........................37 5.4.6 Line Crossing Detection .........................39 5.4.7 Intrusion ............................40 5.4.8 Region Entrance ..........................41 5.4.9 Region Exiting ..........................42 5.4.10 Target Counting ..........................43 5.4.11 Face Comparison .........................43 5.5 Network Configuration ..........................47...
  • Page 5: Introduction

    SoC (System on chip), etc to ensure this system more stable and reliable. Complete manuals and CVM CCTV Manager, Iptool e Diskcalculator software are available to download in the Product info sheet section of www.vimar.com website. Main characteristics: - CMOS progressive scan - HD network video output - H.265/H.264 image compression format...
  • Page 6: Directly Access Through Ie

    Graphic User Interface (GUI) for IP Speed Dome For example, the IP address of your computer is 192.168.1.4. So the IP address of the camera shall be changed to 192.168.1.X. After modification, please input the password of the administrator and click “Modify” button to modify the setting.
  • Page 7 Graphic User Interface (GUI) for IP Speed Dome 1 - Set the IP address of the PC and make sure the network segment should be as the same as the default settings of the IP camera. Open the network and share center. Click “Local Area Connection” to pop up the following window. Select “Properties”...
  • Page 8: Wan

    Graphic User Interface (GUI) for IP Speed Dome 2 - Open the IE browser and input the default address of IP-CAM and confirm. The IE browser will download Active X control automatically. 3 - After downloading Active X control, the login dialog box will pop up. 4 - Input the default username and password and then enter to view.
  • Page 9 Graphic User Interface (GUI) for IP Speed Dome Router Setup 4 - Open the IE browser and input its WAN IP and http port to access.  Access through PPPoE dial-up Network connection You may access the camera through PPPoE auto dial-up. The setting steps are as follow: 1 - Go to Config Network Config Port menu to set the port number.
  • Page 10: Remote Preview

    Graphic User Interface (GUI) for IP Speed Dome  Access through static IP Network connection. The setting steps are as follow: 1 - Go to Config Network Config Port menu to set the port number. 2 - Go to Config Network Config IP Address menu to set the IP address.
  • Page 11 Graphic User Interface (GUI) for IP Speed Dome The descriptions of the icon on the remote preview interface: Icon Description Icon Description Original size Color abnormal indicator Fit correct scale Abnormal clarity indicator Auto (fill the window) Scene change indicator Full screen Line crossing indicator Sensor alarm indicator (only some...
  • Page 12 Graphic User Interface (GUI) for IP Speed Dome The descriptions of the control panel are as follows: Icon Description Icon Description Click it to rotate dome Click it to rotate dome diagonally Icon Description Icon diagonally up-left up-right Icon Icon Description Description Icon...
  • Page 13: Menu Setup

    Graphic User Interface (GUI) for IP Speed Dome 4 Menu Setup On the PTZ control panel of IE remote preview interface, call Preset 95 and click . This will take you to see the following main menu setup. ATTENTION: All the following menus and sub-menus may vary depending on the camera model. Refer to the menu of your PTZ model.
  • Page 14: Auto Pt Flip

    Graphic User Interface (GUI) for IP Speed Dome 4.2.1 Auto PT Flip Select Auto PT Flip and then click to set up the menu on the right; click button to select On/Off. If “On” is selected, please click button to return to the menu on the left and click button to select Exit.
  • Page 15: North Setup

    Graphic User Interface (GUI) for IP Speed Dome 4.2.4 North setup Go to System Setup North Setup, the following screen will open: PICTURE BELOW 1- choose the position by clicking on the direction buttons. 2- Select STORE to save the position. 4.2.5 New Password and Change Password - New Password Enter the password by clicking...
  • Page 16: Camera Control

    Graphic User Interface (GUI) for IP Speed Dome 4.3.1 Camera Control After you select Camera Control, you will see the following menu. (BLC): When the background light is so stronger that the foreground is dark, the brightness of the whole image will improve thereby enhancing the visibility of the foreground image if the BLC function is enabled.
  • Page 17: Lens Setup

    Graphic User Interface (GUI) for IP Speed Dome - WB Setup Go to WB Setup menu as shown below: (WB Mode): White Balance Mode. There are two options you can choose including auto and manual. You can select the mode according to different lighting condition. (MWB Red Gain):The operation is effective in manual mode.
  • Page 18: Day & Night Setup

    Graphic User Interface (GUI) for IP Speed Dome 4.3.4 Day & Night Setup Day & Night Mode includes three modes: Auto, Night, Day and Time. - Auto: Camera will automatically switch the mode between day and night as per the ambient illumination. - Night:The camera will be night mode at all time.
  • Page 19: Cruise Setup

    Graphic User Interface (GUI) for IP Speed Dome 4- Press iris – to switch menu mode and PTZ mode. And then set the position of the preset by clicking the direction buttons. 5- Set the title by clicking button. 6- Save the setting. 4.4.2 Cruise Setup Go to Dome Function Cruise Setup menu as below:...
  • Page 20: Grouping Setup

    Graphic User Interface (GUI) for IP Speed Dome 4.4.3 Grouping Setup Go to Dome Function Grouping Setup as below: Go to “Edit Grouping” menu as shown below. 8 cruises can be set in a group. CRU 1 stands for Cruise 1, CRU 2 stands for Cruise 2 and so on. “Run Grouping” means to run the cruises in order.
  • Page 21: Track Setup

    Graphic User Interface (GUI) for IP Speed Dome 4.4.5 Track Setup Go to Dome Function Track Setup menu as shown below: This function is used to memorize the operation to PTZ, zoom and focus so that repeating operation progress can be realized by running track.
  • Page 22: Home Position

    Graphic User Interface (GUI) for IP Speed Dome 4.4.7 Home Position Go to System Setup Home Position menu as shown below: The setting steps: 1 - Enable the home position function and select the preset which should be set in advance. 2 - Then select delay time (range from 007s to 180s) and exit the menu.
  • Page 23: Load Default

    Graphic User Interface (GUI) for IP Speed Dome 4.6 Load Default There are three menus, including master reset, master clear and system reboot. (Master Reset): Restore the camera state and active menu to factory default but do not clear those parameters such as preset, cruise.
  • Page 24: Local Config

    Graphic User Interface (GUI) for IP Speed Dome Click “Date and Time” to set the time mode. 5.1.3 Local Config Go to Config System Local Config. You can set the storage path of the captured pictures and video records. It is also possible to enable or disable the display of bitrate in recorded files. Also, here you can enable or disable "Local Smart Snapshot Storage".
  • Page 25 Graphic User Interface (GUI) for IP Speed Dome - Schedule Recording Settings 1. Go to Config System Storage Record to go to the interface as shown below. 2. Set record stream, pre-record time, cycle writing. Pre Record Time: Set the time to record before the actual recording begins. 3.
  • Page 26 Graphic User Interface (GUI) for IP Speed Dome Set the format, resolution and quality of the image saved on the SD card and the snapshot interval and quantity and the timing snapshot here. Snapshot Quantity: The number you set here is the maximum quantity of snapshots. The actual quantity of snapshots may be less than this number.
  • Page 27: Image Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.2 Image Configuration Image Configuration includes others submenus: Settings camera parameters, Video/Audio, OSD Configuration e Video Mask. 5.2.1 Camera parameters Many parameters of the camera can be set in above sub-menu, such as Color, Level, HLC, Sharpness, Wide Dynamic, 3D DNR, GAMMA, Fog, White Balance, Day Night Mode, Focus, Zoom and so on.
  • Page 28 Graphic User Interface (GUI) for IP Speed Dome Brightness: set the brightness level of the camera's image. Contrast: set the color difference between the brightest and darkest parts. Hue: set the total color degree of the image. Saturation: set the degree of color purity. The purer the color is, the brighter the image is. Sharpness: set the resolution level of the image plane and the sharpness level of the image edge.
  • Page 29: Video Stream

    Graphic User Interface (GUI) for IP Speed Dome 5.2.2 Video Stream The following interface will be displayed by clicking Config Image Video/Audio. In this interface, you can set the resolution, frame rate, bitrate type, video quality and so on subject to the actual network condition.
  • Page 30: Osd Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.2.3 OSD Configuration Go to Image OSD interface as shown below. Set time stamp, device name, device status language, OSD content and picture overlap here. After enabling the corresponding display and entering the content, drag them to change their position. Then click “Save” to save the settings.
  • Page 31: Ptz Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.3 PTZ Configuration 5.3.1 PTZ and Password Setting - PTZ Setting Go to Config Setting. This will let you see the following submenu. In this submenu, PTZ title, date, auto PTZ flip, language, menu keeping time can be set. - Password Setting If the password is set, you must input the password every time you go to the menu of the PTZ by calling preset NO.
  • Page 32: Alarm Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.4 Alarm Configuration Alarm configuration includes four submenus: Motion Detection, Alarm In, Alarm Out and Alarm Server. 5.4.1 Motion Detection To set motion detection: 1 - Go to Config Alarm Motion Detection to set alarm trigger. Check “Enable Alarm”...
  • Page 33 Graphic User Interface (GUI) for IP Speed Dome Move the “Sensitivity” scroll bar to set up the motion track sensitivity. Check “Add”, click “Draw” button and move mouse to select the motion detection area; Select “Erase” and move the mouse to clear motion detection area. After that, click “Save”...
  • Page 34: Alarm In

    Graphic User Interface (GUI) for IP Speed Dome 5.4.2 Alarm In To set sensor alarm (alarm in): Go to Config Alarm Alarm In interface as shown below. 1 - Enable alarm and set the alarm type, alarm holding time and sensor name. 2 - Set alarm trigger options.
  • Page 35: Alarm Out

    Graphic User Interface (GUI) for IP Speed Dome 5.4.3 Alarm Out This function is only available for some models. Go to Config Alarm Alarm Out. Alarm Out Mode: Alarm linkage, manual operation, day/night switch linkage and timing are optional. Alarm Linkage: Having selected this mode, select alarm out name, alarm holding time at the “Alarm Holding Time” pull down list box and alarm type.
  • Page 36: Alarm Server

    Graphic User Interface (GUI) for IP Speed Dome 5.4.4 Alarm Server Go to “Alarm configuration” “Alarm Server” interface as shown below. You may input the alarm server address and port. When the alarm happens, the camera will automatically transfer the alarm event to the alarm server.
  • Page 37: Smart Tracking

    Graphic User Interface (GUI) for IP Speed Dome 5.4.5 Smart Tracking The tracking option is available for line crossing detection, region entrance and exiting and intrusion detection. Smart Tracking: When people or vehicle cross the alarm line or intrude or exit the predefined area, the PTZ camera will automatically track them and the target image will be automatically zoomed in and centered on the screen until the target disappears on the screen.
  • Page 38 Graphic User Interface (GUI) for IP Speed Dome...
  • Page 39: Line Crossing Detection

    Graphic User Interface (GUI) for IP Speed Dome 5.4.6 Line Crossing Detection Line Crossing: Alarms will be triggered if the target crosses the pre-defined alarm lines. Go to Config Event Line Crossing interface as shown below. - Detection Configuration: 1. Enable line crossing detection and select the snapshot type and the detection target. Save Panoramic Picture: If it is enabled, the detected panoramic pictures will be captured and saved to the SD card when the targets cross the alarm line.
  • Page 40: Intrusion

    Graphic User Interface (GUI) for IP Speed Dome 2. Set the alarm line number and direction. Up to 4 lines can be added. Multiple lines cannot be added simultaneous- Direction: A<->B, A->B and A<-B optional. This indicates the direction of someone or a vehicle crossing over the alarm line.
  • Page 41: Region Entrance

    Graphic User Interface (GUI) for IP Speed Dome 2. Set the alarm area number on the right side. Up to 4 alarm areas can be added. 3. Set the detection area by clicking the buttons of area (1) and then click “Lock” to lock the area. Note: The PTZ will not be controlled if you click “Lock”...
  • Page 42: Region Exiting

    Graphic User Interface (GUI) for IP Speed Dome 5. Set the schedule of Region Entrance detection. For more information, see the "Analysis video" manual. 5.4.9 Region Exiting Region Exiting: Alarms will be triggered if the target exits from the pre-defined areas. Go to Config Event Region Exiting interface as shown below.
  • Page 43: Target Counting

    Graphic User Interface (GUI) for IP Speed Dome 5.4.10 Target Counting This function is to calculate the number of the people or vehicles crossing the alarm line through detecting, tracking and counting the shapes of the people or vehicles. 1. Go to Config Event Target Counting as shown below.
  • Page 44 Graphic User Interface (GUI) for IP Speed Dome Note: To save images to the local PC, please enable the local smart snapshot storage first (Config System Local Config). To save images to the SD card, please install an SD card and enable “Trigger Snap” first. 3.
  • Page 45 Graphic User Interface (GUI) for IP Speed Dome Click “Modify” to change people information and click “Delete” to delete this face picture. 6. Set face comparison trigger options. Click “Comparison and Linkage” to go to the following interface. Deduplication Period: In the set period, delete the repeated comparison results. Similarity threshold: When the similarity of the captured face picture and the face picture added into the face database exceeds the similarity threshold, alarms will be triggered.
  • Page 46 Graphic User Interface (GUI) for IP Speed Dome - Face Match View After all face comparison settings are set successfully, enter the live view interface. Click to view the captured face pictures and face comparison information. Area (1): captured face pictures; area (2): face comparison area - View the comparison details In area (2), click the compared face picture to bring up the following window.
  • Page 47: Network Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.5 Network Configuration 5.5.1 TCP/IPv4 Go to Config Network TCP/IPv4. There are two ways for network connection. - Use IP address. There are two options for IP setup: obtain an IP address auto by DHCP protocol and use the following IP address.
  • Page 48: Central Server

    Graphic User Interface (GUI) for IP Speed Dome HTTP Port: The default HTTP port is 80. It can be changed to any port which is not occupied. Data Port: The default data port is 9008. Please change it as required. RTSP Port: The default port is 554.
  • Page 49 Graphic User Interface (GUI) for IP Speed Dome Create domain name. After you successfully request your domain name, you will see your domain in the list. 3. Input the username, password, domain you apply for in the DDNS configuration interface. 4. Click “Save” button to save the settings.
  • Page 50: Snmp

    Graphic User Interface (GUI) for IP Speed Dome 5.5.5 SNMP To get camera status, parameters and alarm information and remotely manage the camera, you can set the SNMP function. Before using the SNMP, please download the SNMP software and set the parameters of the SNMP, such as SNMP port, trap address.
  • Page 51: 802.1X

    Graphic User Interface (GUI) for IP Speed Dome 5.5.6 802.1x If it is enabled, the camera’s data can be protected. When the camera is connected to the network protected by the IEE802.1x, user authentication is needed. To use this function, the camera shall be connected to a switch supporting 802.1x protocol. The switch can be reckoned as an authentication system to identify the device in a local network.
  • Page 52: Rtsp

    Graphic User Interface (GUI) for IP Speed Dome 5.5.7 RTSP Go to Config Network RTSP. Select “Enable” to enable the RTSP function. Port: Access port of the streaming media. The default number is 554. RTSP Address: The RTSP address (unicast) format that can be used to play the stream in a media player. Multicast Address Main stream: The address format is “rtsp://IP address: rtsp port/profile1?transportmode=mcast”.
  • Page 53: Upnp

    Graphic User Interface (GUI) for IP Speed Dome 5.5.8 UPnP If you enable this function, you can quickly access the camera via LAN and you don’t need to configure the port mapping when the camera is connected to the WAN via the router. Go to Config Network UPnP: Select “Enable UPNP”...
  • Page 54: Ftp Setting

    Graphic User Interface (GUI) for IP Speed Dome Sender Address: sender’s e-mail address; User name and password: sender’s user name and password; SMTP Address: The SMTP IP address or host name. Select the secure connection type at the Secure Connection pull down list according to user’...
  • Page 55: Https

    Graphic User Interface (GUI) for IP Speed Dome 5.5.11 HTTPS HTTPs provides authentication of the web site and protects user privacy. Go to Config Network HTTPS as shown below. There is a certificate installed by default as shown above. Enable this function and save it. Then the device can be accessed by entering https://IP: https port via the web browser (eg.
  • Page 56 Graphic User Interface (GUI) for IP Speed Dome Click the "Create" button to create a private certificate. Enter the country (only two letters available), domain (IP address / device domain), validity date, password, province / state, region and so on. Then click "OK" to save the settings.
  • Page 57: Security Configuration

    Graphic User Interface (GUI) for IP Speed Dome 5.6 Security Configuration 5.6.1 User Configuration Go to Config Security. Add user: 1 - Click “Add” button to pop up the following textbox. 2 - Input user name in “User Name” textbox. 3 - Input letters or numbers in “Password”...
  • Page 58: Online User

    Graphic User Interface (GUI) for IP Speed Dome Modify user: 1 - Select the user you need to modify password and physical address in the user configuration list box. 2 - The “Edit user” dialog box pops up by clicking “Modify” button. 3 - Input old password of this user in the “Password”...
  • Page 59: Block And Allow List

    Graphic User Interface (GUI) for IP Speed Dome 5.6.3 Block and Allow List Go to Config Security Block and Allow Lists. Setting steps are as follows: Check “Enable IP address filtering” check box. Select “Block the following IP address”, input IP address in the IP address list box and click “Add” button. The opera- tion step of “Allow the following IP address”...
  • Page 60: Maintenance

    Graphic User Interface (GUI) for IP Speed Dome 5.7 Maintenance 5.7.1 Backup & Restore Go to Config Maintenance Backup & Restore. - Import & Export Setting: You can import or export the setting information from PC or to device. 1 - Click “Browse” to select save path for import or export information on PC. 2 - Click “Import Setting”...
  • Page 61: Reboot Device

    Graphic User Interface (GUI) for IP Speed Dome 5.7.2 Reboot Device Go to Config Maintenance Reboot. Click “Reboot” button to reboot the device. 5.7.3 Upgrade Go to Config Maintenance Upgrade. In this interface, you can upgrade the system. 1 - Click “Browse” button to select the save path of the upgrade file 2 - Click “Upgrade”...
  • Page 62: Search

    Interfaccia Grafica Utente (GUI) per Speed Dome IP 6 Search 6.1 Video Search Click Search to go to the interface as shown below. Videos were recorded locally to the PC can be played in this interface. 1 - Choose “Record”—“Local”. 2 - Set search time: Select the date and choose the start and end time.
  • Page 63: Image Search

    Interfaccia Grafica Utente (GUI) per Speed Dome IP The descriptions of the buttons are shown as follows. Button Description Play button. After pausing the video, click this button to continue playing Pause button Stop button Speed down Speed up The status icon of playing Full screen.
  • Page 64 Interfaccia Grafica Utente (GUI) per Speed Dome IP 1 - Set time: Select date and choose the start and end time. 2 - Choose “Picture”—“SD Card”. 3 - Click " " (Search) button to search the picture. 4 - Double click a filename or select a filename to view captured pictures. 5 - Clic to return to the previous interface.
  • Page 65: Sd Card Video Search

    Interfaccia Grafica Utente (GUI) per Speed Dome IP 6.3 SD card video search Click Search Video SD Card Recording to go to the interface as shown below. You can search the record saved in the SD card. 1 - Choose “Record”—“SD Card”. 2 - Set search time: Select the date and choose the start and end time.
  • Page 66 Interfaccia Grafica Utente (GUI) per Speed Dome IP The time table can be shown in 24H/12H/2H/1H format by clicking the corresponding buttons. Video clip and download- 1 - Search the video files according to the above mentioned steps. 2 - Select the start time by clicking on the time table. 3.
  • Page 67: Faq

    Graphic User Interface (GUI) for IP Speed Dome 7 FAQ 1 - Q: I forget the password. How can I do? Reset the system to the factory default setting or contact the dealer. Default IP: 192.168.226.201 User name: admin Password: 123456 2 - Q: The devices can’t connect through IE browser.
  • Page 68 Graphic User Interface (GUI) for IP Speed Dome 5 - Q:Why does the device fail to sound? The audio input device is not connected. Please connect and try again. The audio function is not enabled at the cor- responding channel. Please check AUDIO item to enable this function. Appendix: Preset Description Call NO.90 Preset Run track 1...
  • Page 69 Graphic User Interface (GUI) for IP Speed Dome...
  • Page 70 Viale Vicenza, 14 36063 Marostica VI - Italy 49401712A0_EN 00 2109 www.vimar.com...
