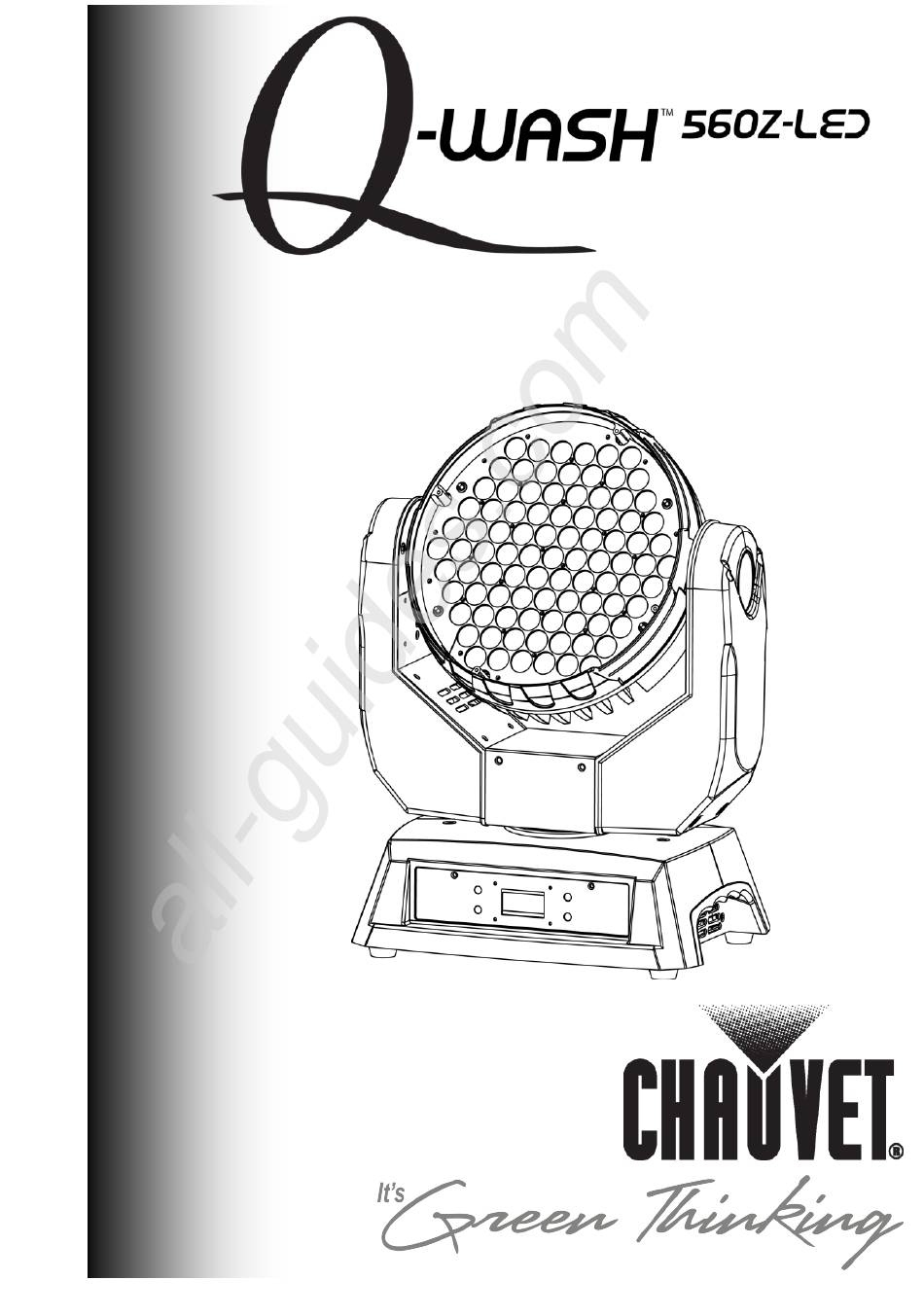

  • Page 1 All manuals and user guides at all-guides.com Quick Reference Guide...

  • Page 2: About This Guide

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG About This The Q-Wash 560Z-LED Quick Reference Guide (QRG) contains connection and mounting information, as well as menu options and DMX values. Guide Refer to the User Manual for detailed information and instructions. You can download the User Manual from the CHAUVET®...

  • Page 3: What Is Included

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG What Is One Q-Wash 560Z-LED Two Omega Brackets Included One IEC Power Cord With Warranty Card Edison Plug (US market) Quick Reference Guide One Safety Cable Features 12 or 15-channel RGBWA LED moving yoke wash product...

  • Page 4: Product Overview

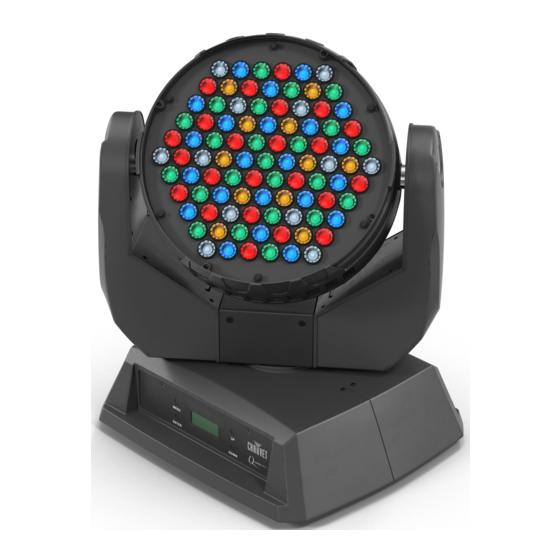

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Product The Q-Wash 560Z-LED is an RGBWA LED moving yoke wash product. This product consists of a base section and a moving yoke. The head Description contains the 91 RGBWA LEDs and the zoom motors. The base section has the 3- and 5-pin DMX input and output sockets, the IEC power input connector, and the LCD-based control panel.

  • Page 5: Replacing The Fuse

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG AC Power The Q-Wash 560Z-LED has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. Replacing Disconnect this product from the power outlet.

  • Page 6: Dmx Linking

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG DMX Linking The Q-Wash 560Z-LED will work with a DMX controller using a regular DMX serial connection. If you are not familiar with the DMX standard, download the DMX Primer document from www.chauvetpro.com.
  • Page 7 All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this Guide and in the User Manual. Refer to the Setup chapter in the User Manual for detailed mounting instructions.

  • Page 8: Control Panel Description

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Programming Refer to the User Manual for detailed instructions on programming this product. Control Panel Button Function Description <MENU> Exit from the current menu or function Enable the currently displayed menu or accept the currently <ENTER>...

  • Page 9: Menu Options

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Menu Options Main Level Programming Levels Description ADDRESS 001~512 Selects a starting DMX address Resets the product’s custom settings RESET NO/YES HIGH Select the fan’s operation mode. NOTE: Product’s controller will force the fan to NORMAL High if the product’s internal temperature becomes...
  • Page 10 All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Main Level Programming Levels Description STEP Selects the program step Selects the pan position TILT Selects the tilt position SPEED Selects the pan/tilt speed GREEN Combines red, green, blue, white, and amber to...

  • Page 11: Extra Menu

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Extra Menu Level 2nd Level 3rd Level Level Description 3200 K Green 000~255 Sets color temperature for Macro > White 1 Blue 3400 K Green 000~255 Sets color temperature for Macro > White 2...

  • Page 12: Dmx Values

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG DMX Values Channel Function Value Percent/Setting BASIC 000  255 0~540º 000  255 0~270º Tilt 000  255 0~100% 000  255 0~100% Green 000  255 0~100% Blue 000 ...
  • Page 13 All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Channel Function Value Percent/Setting ADVANCED 000  255 0~540º 000  255 Fine movement control Pan Fine 000  255 0~270º Tilt 000  255 Fine movement control Tilt Fine 000 ...

  • Page 14: Channel Function

    All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Channel Function ADVANCED Value Percent/Setting 000  255 0~100% Dimmer 000  009 No function Strobe 010  255 01~20 Hz 000  255 6~37º Zoom 000  019 No function 020 ...
  • Page 15 All manuals and user guides at all-guides.com Q-Wash 560Z-LED QRG Channel Function Value Percent/Setting 000  255 0~540º 000  255 Fine movement control Pan Fine 000  255 0~270º Tilt 000  255 Fine movement control Tilt Fine 000  255 Fast~Slow Pan/Tilt Speed 000 ...
  • Page 16 Outside the U.S., United Kingdom, or Ireland, contact your distributor of record. Follow their instructions to request support or to return a product. Visit our Web site for contact details. Q-Wash 560Z-LED QRG – Rev. 13 © Copyright 2011 CHAUVET® All rights reserved.
