Summary of Contents for Chauvet Q-Wash 560Z-LED

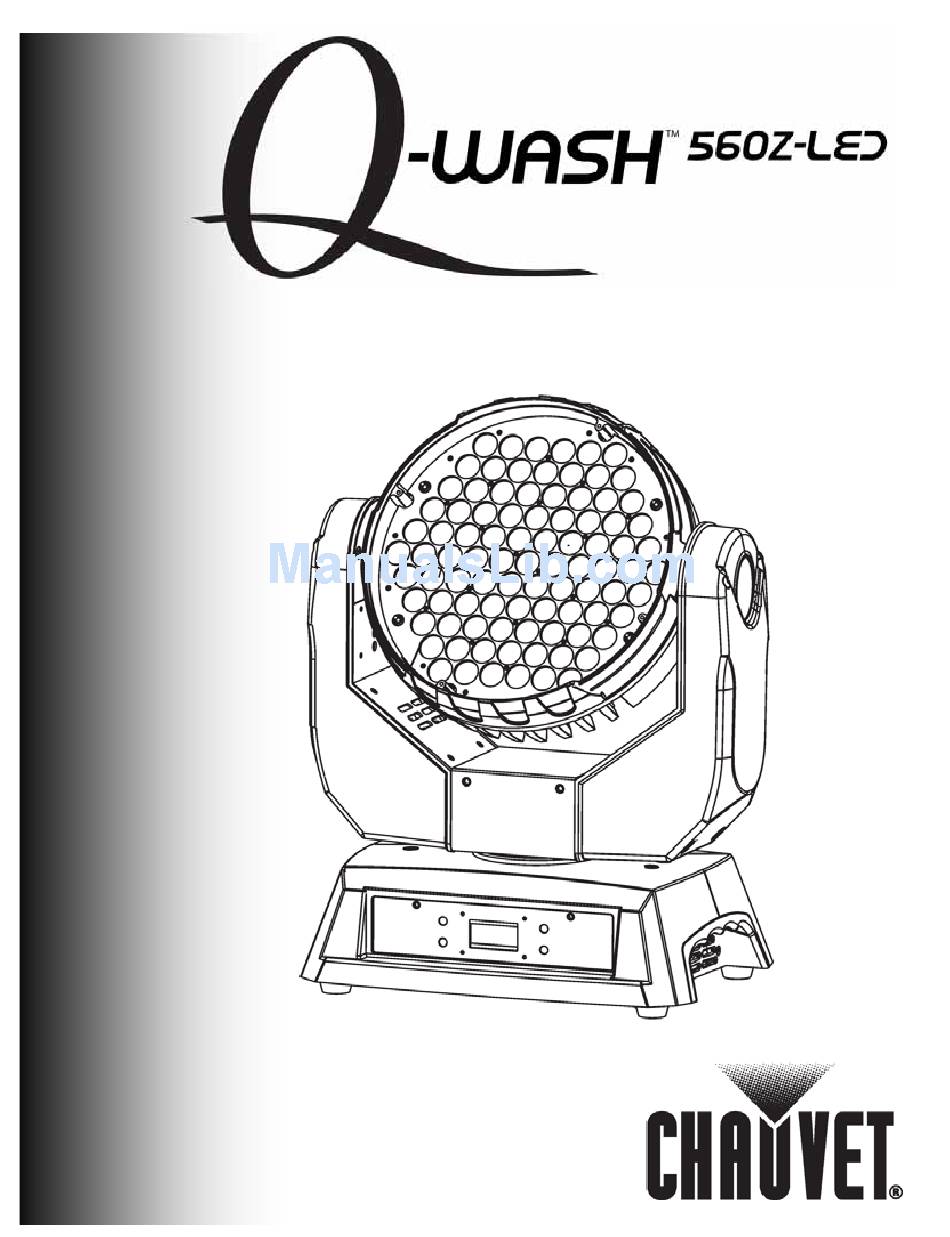

  • Page 1 User Manual...
  • Page 2 Copyright Notice CHAUVET® owns the content of this user manual in its entirety, including but not limited to pictures, logos, trademarks, and resources. © Copyright 2011 CHAUVET®. All rights reserved.
  • Page 3: Table Of Contents

      Power ............................13   Color Settings ..........................13   Fan Control ..........................14   Color Calibration ........................14   White Calibration ........................14   System Default .......................... 15   Edit Custom ..........................15 Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 4 G1 .............................. 20 5. Technical Information ..................21    Product Maintenance ......................21   Troubleshooting Guide ...................... 22   Returns Procedure ......................23   Contact Us ........................23   Technical Specifications ....................24 -ii- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 5: Before You Begin

    CHAUVET®. Failure to notify the carrier in a timely manner may invalidate your claim. In addition, keep the container and all the packing material for inspection.
  • Page 6: Icon Indications

      Use on Dimmer Auto Programs Product at a   Glance Outdoor Use Auto-ranging Power Supply   Sound Activated Replaceable Fuse   User Serviceable   Master/Slave Duty Cycle Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 7: Safety Notes

    There are no user serviceable parts in this product. Any reference to servicing in this User Manual applies only to properly certified CHAUVET® technicians. Do not open the housing or attempt any repairs unless you are certified.
  • Page 8: Introduction

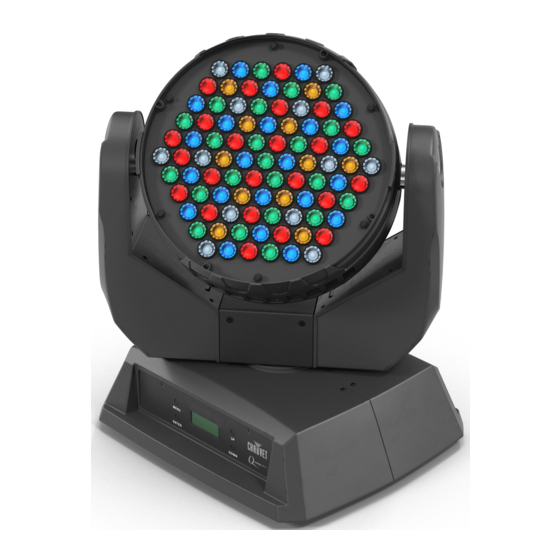

    Product The Q-Wash 560Z-LED is an RGBWA LED moving yoke wash product. The Q-Wash 560Z-LED consists of a base section and a moving yoke with a pan range of Description up to 540º. The moving head, which has a tilt range of 270º, contains the 91 RGBW LEDs and the zoom motors.
  • Page 9: Product Overview

    Introduction Product Overview BACK Power Input  3‐pin DMX In IEC Socket  3‐pin DMX Out  Fuse holder 5‐pin DMX In Power Switch  5‐pin DMX Out Control panel FRONT Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 10: Product Dimensions

    Introduction Product Dimensions Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 11: Setup

    Setup 3. Setup AC Power The Q-Wash 560Z-LED has an auto-ranging power supply that works with an input voltage range of 100~240 VAC, 50/60 Hz. Make sure that you are connecting this product to the proper voltage. To determine the power requirements for the Q-Wash 560Z-LED, refer to the specification label affixed to the product or the specifications in this manual.
  • Page 12: Dmx Linking

    Setup DMX Linking You may link the Q-Wash 560Z-LED to a DMX controller using a standard DMX serial connection. If using other DMX compatible products with the Q-Wash 560Z-LED, you can control each individually with a single DMX controller. DMX Modes The Q-Wash 560Z-LED uses the standard DMX data connection for its Basic, Advanced, and G1 DMX modes.
  • Page 13: Mounting

    Procedure  The Q-Wash 560Z-LED comes with two omega brackets to which you can attach clamps. You must supply your own clamps and make sure that they are capable of supporting the weight of this product. You will have to use two mounting points per product. The omega brackets also serve to anchor this product to a panel.
  • Page 14: Operation

    <DOWN> value when in a function Control Options You can set the Q-Wash 560Z-LED start address in the 001~512 DMX range. This enables for the control of up to 34 products in the 15-channel ADVANCED personality. Programming Refer to the Menu Map to understand the menu options.
  • Page 15: Master/Slave

    Operation Master/Slave The Master/Slave mode enables a group of Q-Wash 560Z-LED products (the slaves) to simultaneously duplicate the output of another Q-Wash 560Z-LED (the master), whether auto/custom or test modes, without a DMX controller. 1. Set the master unit: a) Select a stand-alone mode, as indicated above.
  • Page 16: Dimmer Curve

    Operation Dimmer Curve This setting determines how fast the output of the Q-Wash 560Z-LED changes when you modify the values of the Red, Green, Blue, White, Amber, and Dimmer faders. This setting provides four different options to simulate the dimming curve of an incandescent lighting product.
  • Page 17: Reset Control

    The product will return to Normal if the LEDs’ temperature becomes too high. Color Settings The COLOR setting determines how the Q-Wash 560Z-LED generates the white color based on various RGB settings. 1. Go to MENU > SPECIAL > COLOR.
  • Page 18: Fan Control

    5. Press <ENTER> (3200K will show on the display). 6. Use <UP> or <DOWN> to select RGBW. 7. Select RED, GREEN, or BLUE. 8. Select a value (000~255). 9. Repeat for the other colors. -14- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 19: System Default

    Use = Yes Step 4: Time = 0 Use = Yes (This step creates a loop) Step 5: Time = 0 Use = No (Unused steps) Step 255 Time = 0 Use = No Q-Wash 560Z-LED User Manual Rev. 12 -15-...
  • Page 20: Menu Map

    TILT Selects the tilt position SPEED Selects the pan/tilt speed EDIT 000~255 GREEN Combines red, green, blue, white, and amber to obtain a BLUE custom color WHITE AMBER Continues on the next page -16- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 21: Extra Menu

    BLUE 8500 K GREEN Sets color temperature for White 11 BLUE Sets color temperature for 10000 K GREEN SPECIAL > COLOR > RGBTOW BLUE DEFAULT DEFAULT NO/YES Defaults the product to factory settings Q-Wash 560Z-LED User Manual Rev. 12 -17-...
  • Page 22: Dmx Values

    DIM0 (3 s activation delay) 240  243 DIM1 (3 s activation delay) 244  247 DIM2 (3 s activation delay) 248  251 DIM3 (3 s activation delay) 252  255 DIM4 (3 s activation delay) -18- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 23: Advanced

    DIM0 (3 s activation delay) 240  243 DIM1 (3 s activation delay) 244  247 DIM2 (3 s activation delay) 248  251 DIM3 (3 s activation delay) 252  255 DIM4 (3 s activation delay) Q-Wash 560Z-LED User Manual Rev. 12 -19-...
  • Page 24 160  169 Test (3 s activation delay) 170  179 Custom program (3 s activation delay) 180  199 No function 200  219 Reset (3 s activation delay) 220  255 No function -20- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 25: Technical Information

     Gently polish the glass surfaces until they are free of haze and lint. Always dry the external optics and glass surfaces carefully after cleaning them. Refrain from spinning this product’s fans using compressed air. Q-Wash 560Z-LED User Manual Rev. 12 -21-...
  • Page 26: Troubleshooting Guide

    Faulty Display board Send unit for repair If you still experience technical problems after trying the above solutions or if you need to send the unit for repair, contact CHAUVET® Technical Support. -22- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 27: Returns Procedure

    Be sure to pack the product properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper FedEx packing or double-boxing is the method CHAUVET® recommends. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Contact Us World Headquarters United Kingdom &...
  • Page 28: Technical Specifications

    Cooling System Thermal 104° F (40° C) Forced (fans) I/O Connectors Connector Type Channel Range 3- and 5- pin XLR Sockets 12,15 Product Name Item Code Item Number Ordering Q-Wash 560Z-LED 01010397 QWASH560ZLED -24- Q-Wash 560Z-LED User Manual Rev. 12...
  • Page 29 CHAUVET® 5200 NW 108th Avenue Sunrise, FL 33351 (USA) (800) 762-1084 – (954) 577-4455 FAX (954) 741-5571 www.chauvetpro.com Q-Wash 560Z-LED User Manual Rev. 12 November 2011...
