Summary of Contents for Chauvet Hemisphere 5.1

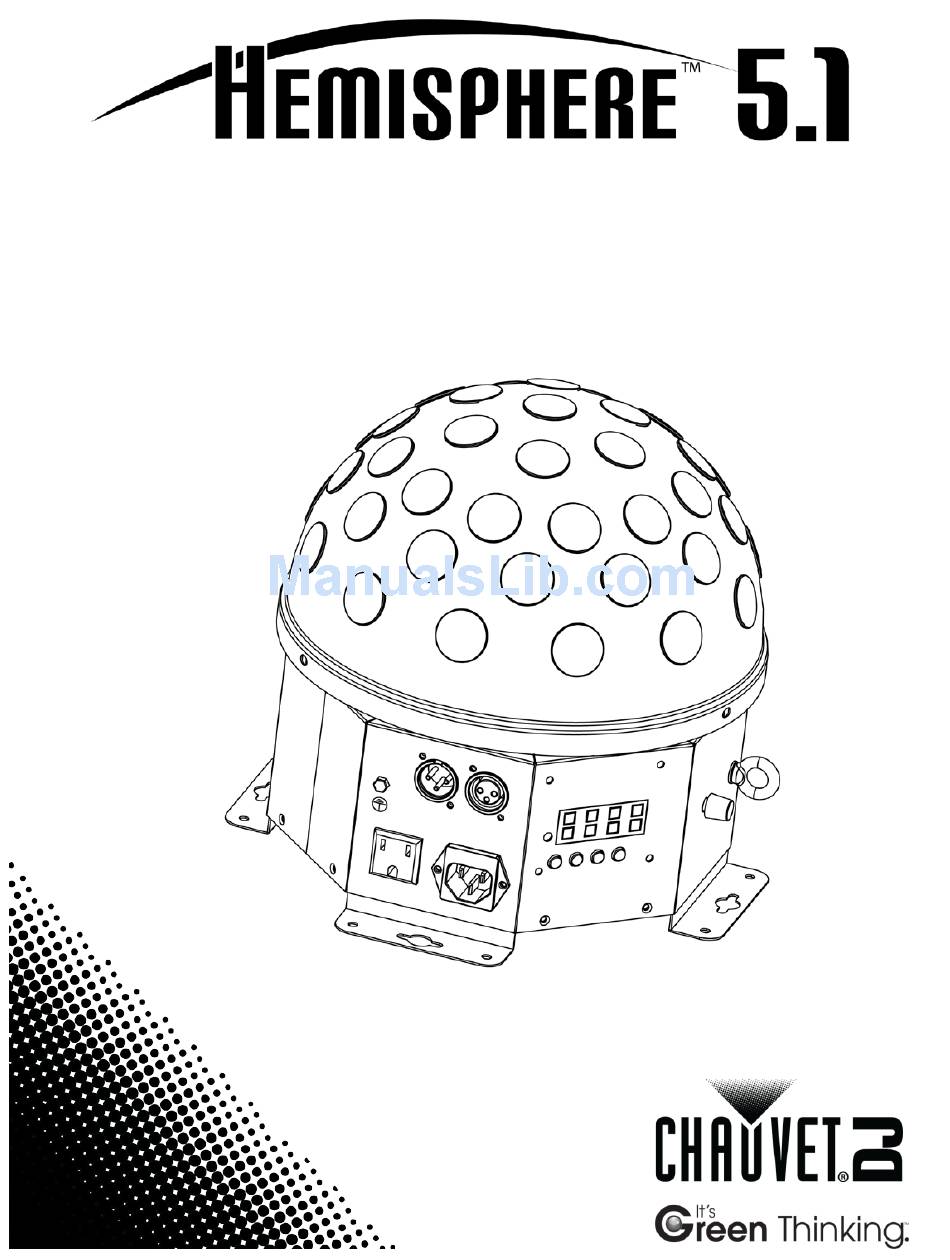

- Page 1 User Manual...
-
Page 2: Table Of Contents
ABLE OF ONTENTS 1. Before You Begin................3 What Is Included ................... 3 Unpacking Instructions .................. 3 Claims ........................3 Text Conventions ..................3 Icons ......................3 Disclaimer ..................... 3 Product at a Glance ..................4 Safety Notes ....................4 2. Introduction..................5 Product Overview .................. -
Page 3: Before You Begin
Failure to do so in a timely manner may invalidate your claim with the carrier. In addition, keep the box and contents for inspection. For other issues such as missing components or parts, damage not related to shipping, or concealed damage, file a claim with CHAUVET® within 7 days of delivery. Convention Meaning... -
Page 4: Product At A Glance
Product at a Use on Dimmer Auto Programs Glance Outdoor Use Auto-ranging Power Supply Sound Activated Replaceable Fuse User-Serviceable Master/Slave Duty Cycle Safety Notes The Safety Notes include important safety information about the mounting, usage, and maintenance of this product. Read the Safety Notes before using the product. ·... -
Page 5: Introduction
2. I NTRODUCTION The Hemisphere™ 5.1 is a rotating, multi-colored centerpiece light. The product Product contains red, green, blue, white, and amber LEDs for effects similar to a mirror ball. Overview The moving head spins in both directions and at variable speeds to create an ever- changing star field. -
Page 6: Product Dimensions
Product Dimensions Page 6 of 15 Hemisphere™ 5.1 User Manual Rev. 2... -
Page 7: Setup
3. S ETUP AC Power The Hemisphere™ 5.1 has an auto-ranging power supply and it can work with an input voltage range of 100~240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 8: Power Linking
The power linking diagram shown above corresponds to the North American version of the product ONLY! If using the product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 9: Mounting
Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation The Hemisphere™ 5.1 may be mounted in any position; however, make sure adequate ventilation is provided around the product. · Rigging Before deciding on a location for the product, always make sure there is easy access to the product for maintenance and programming purposes. -
Page 10: Operation
4. O PERATION Control Panel To access the control panel functions, use the four buttons located underneath the display. Please refer to the Introduction section for button locations on the control panel. Operation Button Function Press to find an operation mode or to back out of the current menu <MENU>... -
Page 11: Configuration (Dmx)
The Hemisphere™ 5.1 uses up to 512 DMX channels in DMX mode, which defines the highest configurable address to 508. If unfamiliar with DMX, download the DMX Primer from the CHAUVET® website. To select the starting address, do the following: Press <MENU>... -
Page 12: Configuration (Standalone)
Configuration To control the product without a DMX controller, connect the product to a suitable power outlet and set the product in one of the three standalone modes below. (Standalone) Never connect a product that is operating in any standalone mode (Sound-Active, Automatic, or Master/Slave) to a DMX string connected to a DMX controller. -
Page 13: Technical Information
5. T ECHNICAL NFORMATION Product Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum Maintenance performance and minimize wear, you should clean your lighting products at least twice a month. -
Page 14: Technical Specifications
Maximum External Temp. Cooling System 104 °F (40 °C) Convection I/O Connectors Connector Type Channel Range 3-pin XLR Sockets Ordering Product Name Item Code Item Number Hemisphere 5.1 03050164 HEMISPHERE5.1 Page 14 of 15 Hemisphere™ 5.1 User Manual Rev. 2... -
Page 15: Returns
If you live in the U.S., contact CHAUVET® World Headquarters (see below). · If you live in the UK or Ireland, contact CHAUVET® Europe Ltd. (see below). · If you live in any other country, DO NOT contact CHAUVET®. Instead, contact your distributor of record.
