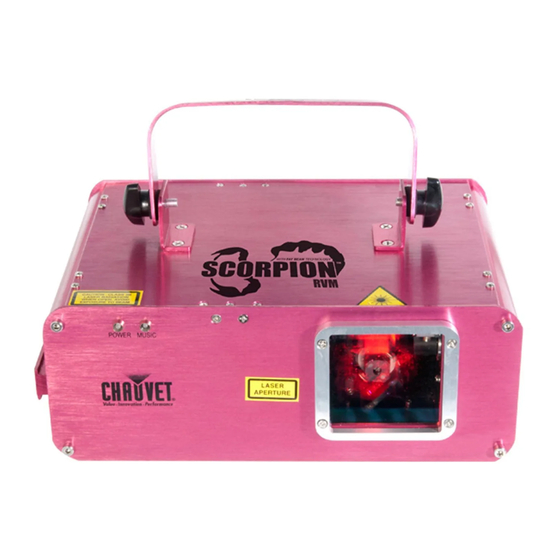

Summary of Contents for Chauvet Scorpion RVM

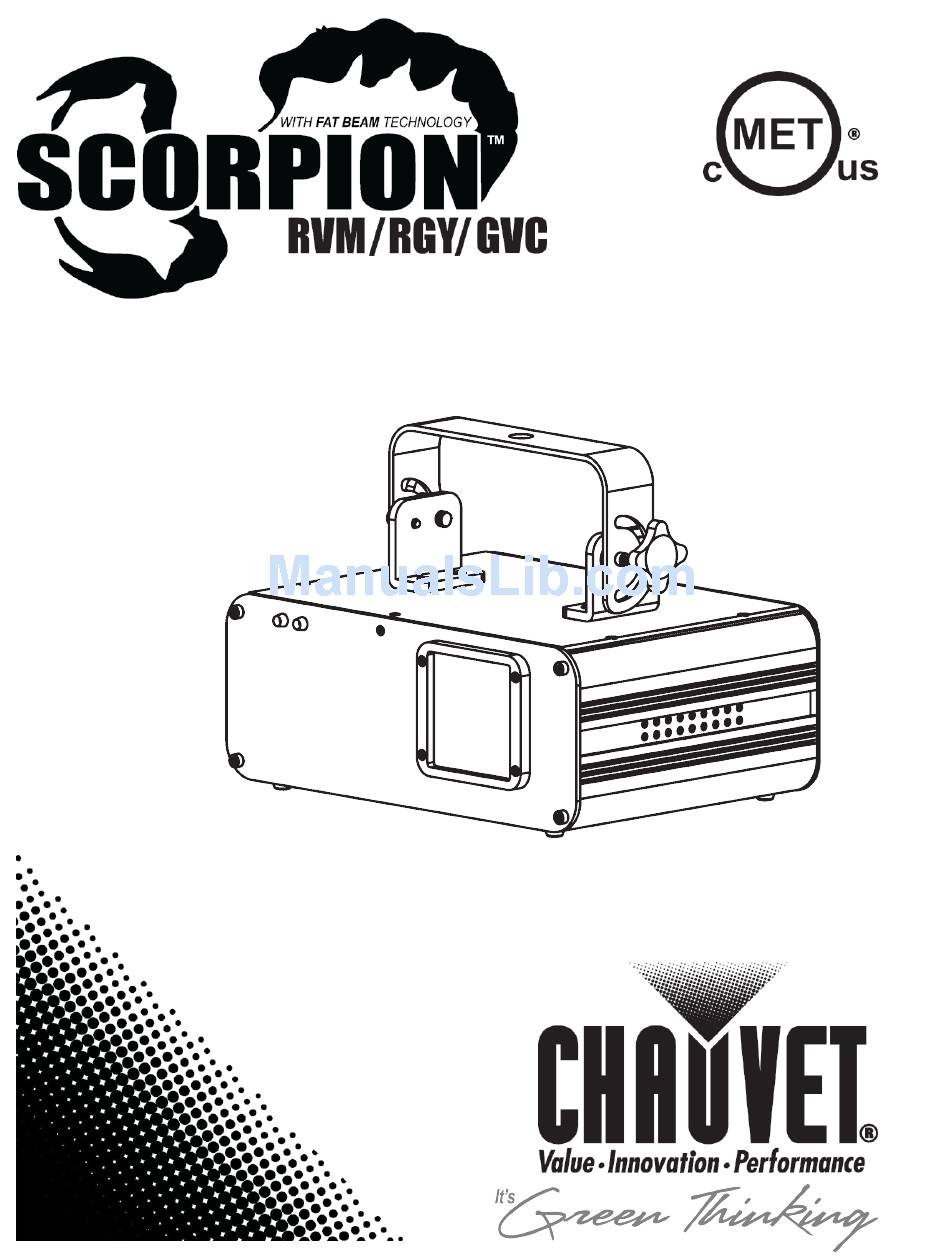

- Page 1 User Manual...
-
Page 2: Table Of Contents
Document Information The information and specifications contained in this document are subject to change without notice. CHAUVET® assumes no responsibility or liability for any errors or omissions that may appear in this manual. © Copyright 2011 CHAUVET®. All rights reserved Printed in P.R.C. -
Page 3: Before You Begin
In addition, retain the container and all the packing material for inspection. See the Claims section in the “Technical Information” chapter. Text Conventions CHAUVET® manuals use the following conventions to differentiate certain types of information from the regular text. Convention Meaning... -
Page 4: Safety Notes
Safety Notes Read the following notes carefully, because they include important safety information about the installation, usage, and maintenance of this product. Keep this User Manual for future consultation. If you sell this product to another user, be sure that they also receive this document. ... -
Page 5: Laser Safety Notes
Laser Safety Notes STOP AND READ ALL THE LASER SAFETY NOTES BELOW Laser Light is different from any other light sources with which you may be familiar. The light from this product can potentially cause eye injury if not set up and used properly. Laser light is thousands of times more concentrated than light from any other kind of light source. -
Page 6: Laser Safety Labels
Laser Safety Labels Scorpion™ RVM/RGY/GVC User Manual (Rev. 01e) Page 6 of 24... -
Page 7: Laser Emission Data
Laser Emission Data LASER EXPOSURE WARNING Laser light - Avoid direct eye contact! Further guidelines and safety programs for safe use of lasers can be found in the ANSI Z136.1 Standard “For Safe Use of Lasers”, available from the Laser Institute of America: www.laserinstitute.org. -
Page 8: Introduction
2. I NTRODUCTION Product Overview Control Panel Back Panel (LED display) DMX Out Power Switch Fuseholder DMX In Power In Power Out Safety Scorpion™ RVM/RGY/GVC User Manual (Rev. 01e) Page 8 of 24... -
Page 9: Product Dimensions
Product Dimensions Scorpion™ RVM/RGY/GVC User Manual (Rev. 01e) Page 9 of 24... -
Page 10: Proper Usage
Proper Usage This fixture has been designed to be hung. It is recommended for safety purposes, your lighting effects are properly mounted using a suitable hanging clamp and safety cable. Items appropriate for safe and effective mounting are easily sourced from your lighting vendor. International laser safety regulations require that lasers must be operated in the fashion illustrated below, with a minimum of 3 meters (9.8 ft) of vertical separation between the floor and the lowest laser light vertically. -
Page 11: Setup
The power linking diagram shown above corresponds to the North American version of this product ONLY! If using this product in other markets, you must consult with the local CHAUVET® distributor as power linking connectors and requirements may differ in your country or region. -
Page 12: Mounting
Mounting Orientation The Scorpion™ RVM/RGY/GVC may be mounted in any position, provided there is adequate room for ventilation. Rigging Be sure that the structure onto which you are mounting this product can support its weight. Please see the “Technical Specifications” section of this manual for weight information. Mount the fixture securely. -
Page 13: Operation
4. O PERATION Control Panel Operation To access the control panel functions, use the four buttons located underneath the display. Button Function Press it to find an operation <MENU> mode or to back out of the current menu option Use it to scroll down the list of <DOWN>... - Page 14 Continued from the previous page The sound program will operate with the both colors (relative to the specific product model); use the sound Sound Color 3 sensitivity option in the menu map to adjust the microphone sensitivity Random The fixture will operate in a random mode The fixture will run the “laser sky”...
-
Page 15: Configuration
Configuration DMX Mode Setting this product to operate in DMX mode will allow you to control it with a DMX controller. 1) Connect this product to a suitable power outlet. 2) Turn this product on. 3) Connect a DMX cable from the DMX output of the DMX controller to the DMX input socket of this product. -
Page 16: Master/Slave Mode
Laser Sky Mode To enable the Laser Sky Mode, follow the instructions below: 1) Connect this product to a suitable power outlet. 2) Turn this product on. 3) Press <MENU> repeatedly until one of the following menu options appear on the display: LS1, LS2, LS3. -
Page 17: Dmx Channel Assignments And Values
DMX Channel Assignments and Values HANNEL UNCTION ALUE ETTING 000 017 Manual Mode 018 035 Automatic fast (blue) 036 053 Automatic slow (blue) 054 071 Automatic fast (green) 072 089 Automatic slow (green) 090 107 Automatic fast (cyan) Control Mode 108 ... - Page 18 DMX Ch.2 Pattern Selection DMX V DMX V DMX V ALUE ATTERN ALUE ATTERN ALUE ATTERN 000~007 096~103 190~197 008~015 104~111 198~205 016~023 112~119 206~213 024~031 120~127 214~221 032~039 128~135 222~229 040~047 136~143 230~237 048~055 144~151 238~245 056~063 152~159 246~255 064~071 160~167 072~079...
-
Page 19: Technical Information
5. T ECHNICAL NFORMATION General Maintenance Dust build up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and mechanical wear. To maintain optimum performance and minimize wear, you should clean your lighting fixtures at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 20: General Troubleshooting
DMX amplifier after unit #32 Terminator not connected Install a terminator, as indicated in “DMX Primer”. If you still experience problems after trying the above solutions, contact CHAUVET® Technical Support. Scorpion™ RVM/RGY/GVC User Manual (Rev. 01e) Page 20 of 24... -
Page 21: Returns Procedure
Be sure to pack the fixture properly. Any shipping damage resulting from inadequate packaging will be the customer’s responsibility. As a suggestion, proper UPS packing or double-boxing is always a safe method to use. CHAUVET® reserves the right to use its own discretion to repair or replace returned product(s). Claims The carrier is responsible for any damage incurred during shipping to this product or any part that shipped with it. -
Page 22: Dmx Primer
DMX Primer The USITT DMX512-A data transmission protocol (DMX, from now on) is based on the EIA-485 standard and it has 512 channels. Any DMX compatible fixture will require one or more consecutive DMX channels to operate. Because of the many different types of DMX compatible fixtures, they may vary in the total number of channels they require. -
Page 23: Dmx Cabling
Despite their apparent similarities, data cables are electrically different from standard microphone cable because they can carry high frequency digital signals and are less prone to electromagnetic interference. You can purchase CHAUVET® certified DMX cables directly from a dealer/distributor or make your own DMX cable. -
Page 24: Echnical Pecifications
6. T ECHNICAL PECIFICATIONS Dimensions and Weight Length Width Height Weight 11 in (276 mm) 8.5 in (215 mm) 7.4 in (187 mm) 5.6 lbs (2.7 kg) Note: Dimensions in inches rounded to the nearest decimal digit Power Power Supply Type Range Voltage Selection Switching (internal)
