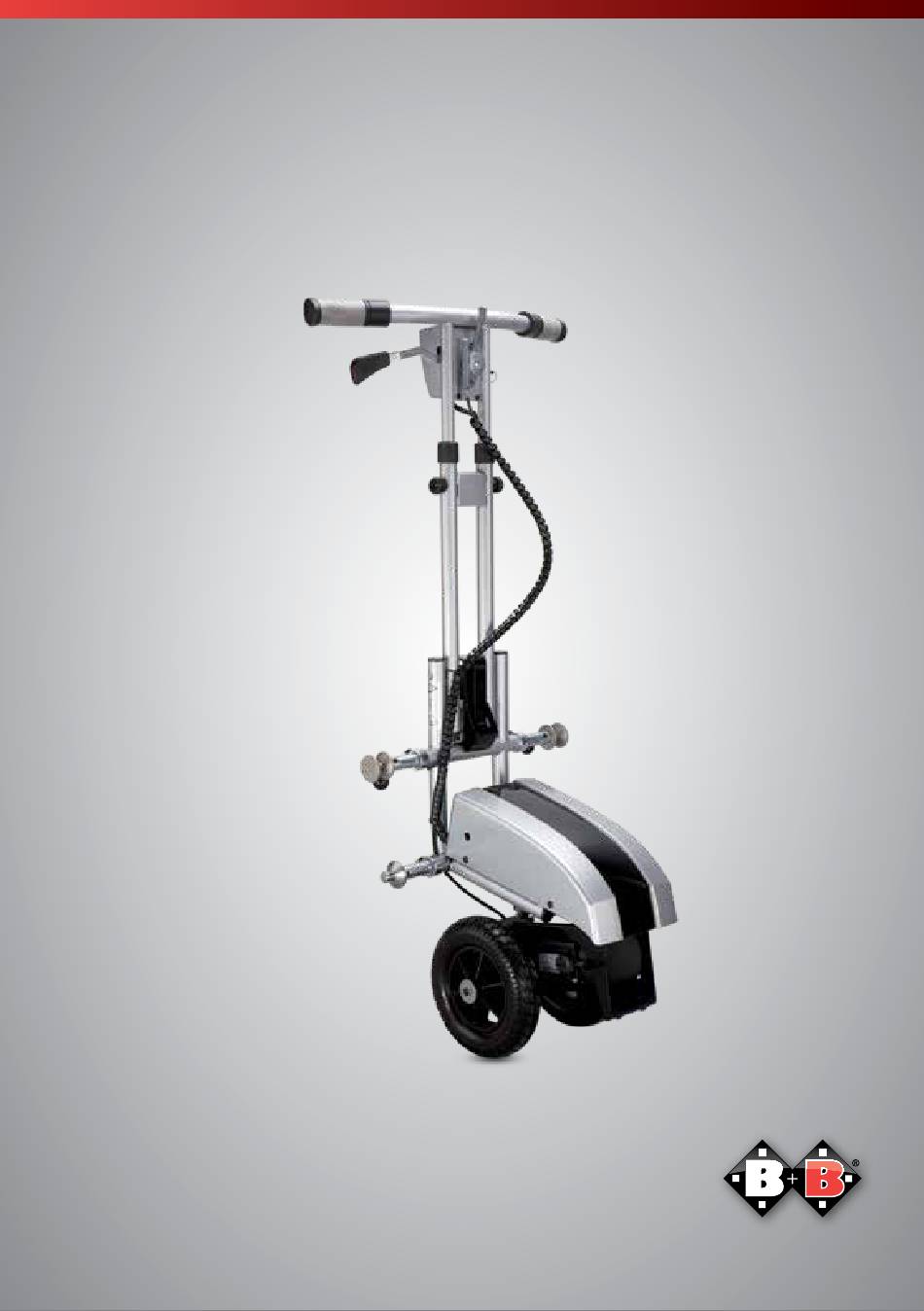

  • Page 1 Installation manual Bedienungsanleitung Adapter plate TOGO Enjoy mobility. Enjoy mobility.
  • Page 2: Installation Steps

    TOGO | Pushing aid Installation steps • Place the wheelchair on a level sur- face and put both steering wheels in the direction of travel (Fig. 1). • Pull off the foot bar caps on the left and right (Fig. 2).
  • Page 3 TOGO Pushing aid | • In their place, fit the anti-tip rollers required for the wheelchair (Fig. 3). • If possible, find a horizontal and a vertical fixing point located in the area of the wheel mount (Fig. 4) Bischoff & Bischoff GmbH | 10.08.2020...
  • Page 4 TOGO | Pushing aid • Place both clamp holders (on each side) at these fixing points and loosely fix these with the M6X40 screws, so that the clamp holders can still move freely! (Fig. 5) The M8X50 screws must not yet...
  • Page 5 TOGO Pushing aid | • Place both clamp holders (on each side) at these fixing points and loosely fix these with the M6X40 screws, so that the clamp holders can still move freely! (Fig. 7) The M8X50 screws must not yet...
  • Page 6 TOGO | Pushing aid Tip: (not in the scope of supply) To facilitate installation, Bischoff & Bischoff offers an assembly jig (Fig.9+10) Art. no. 8010199000 • If possible, find a horizontal and a vertical fixing point located in the area of the wheel mount (Fig. 10)
  • Page 7: Final Positioning

    TOGO Pushing aid | Final positioning In order to ensure the best possible driving characteristics, along with cor- rect engagement and release of the pushing aid, please take note of the following information about dimensi- ons: • Height: Place the adapter plate so that the distance between the lower edge (full length) and the ground is 11.5...
  • Page 8 TOGO | Pushing aid Notes...
  • Page 9 TOGO Pushing aid | Notes Bischoff & Bischoff GmbH | 10.08.2020...
  • Page 10 Bischoff & Bischoff GmbH Becker-Göring-Straße 13 D-76307 Karlsbad www.bischoff-bischoff.com...
