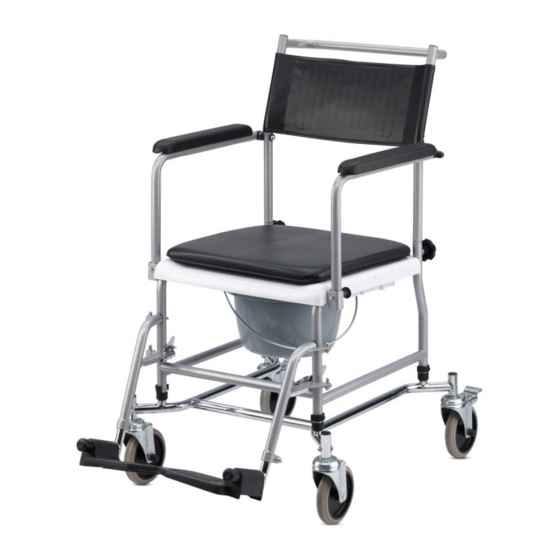

Bischoff & Bischoff TS-1 Instruction Manual

Commode wheelchair
Hide thumbs Also See for TS-1:

Advertisement

Quick Links

Download this manual
Bischoff & Bischoff
Instruction manual
TS-1
Enjoy mobility.

Advertisement

loading
Need help?

Need help?

Do you have a question about the TS-1 and is the answer not in the manual?

Questions and answers

Related Manuals for Bischoff & Bischoff TS-1

Summary of Contents for Bischoff & Bischoff TS-1

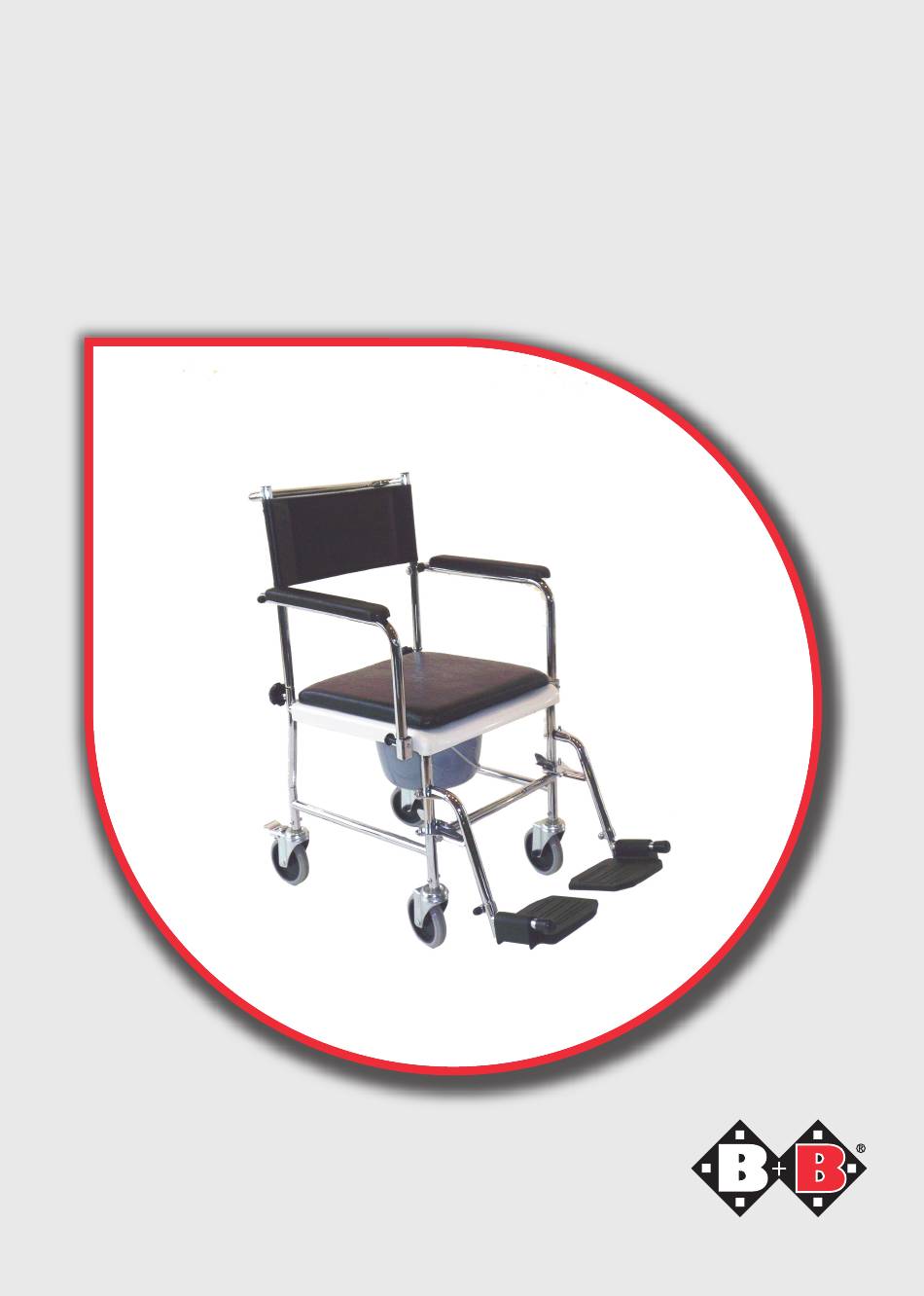

  • Page 1 Bischoff & Bischoff Instruction manual TS-1 Enjoy mobility.
  • Page 2 TS-1 commode wheelchair) Dear customer, with the purchase of this B+B commode wheelchair you are now the owner of a high-quality German product, thousands of which are already in professional use. This instruction manual will familiarise you with the use and maintenance of your B + B commode wheelchair and make your life safer.
  • Page 3 TS-1 1. Attention - safety instructions! (Risk analysis as per DIN EN 13485) • Max. load capacity 120 kg • Never use the commode wheelchair without an assistant. • Use your walking aid on even and horizontal surfaces. • Always lock both brakes when using your wheelchair.
  • Page 4 Removable seat back Back cover Adjustable arm rest with padding Locking pin for arm rest Seat cushion Fixation screw for back rest Locking lever for leg supports Commode with cover Leg supports Back steering wheel, braked Front steering wheel, unbraked Fig.
  • Page 5 TS-1 2. Parking brake The two rear steering wheels with brakes prevent the wheelchair from moving accidentally. • Setting brakes: press brake lever down to the limit stop with your foot (Fig. 2) • Releasing brakes: pull the seat upwards with your toe (Fig.
  • Page 6 4. Commode seat Removing commode seat: • Pull front edge of seat up from the base. • Lift commode seat upwards. Positioning commode seat: Fig. 4 • Slide back edge of seat with the open corners to the back. • Press front rounded edge of seat down to the stop. Seat must lock into position.
  • Page 7 TS-1 6. Technical data Seat width: 45 cm Seat depth: 44 cm Length: 96 cm Height: 97 cm Width: 56 cm Seat to arm rests: 22 cm Seat back rest: 34 cm Max. user weight: 120 kg Weight: 15,3 kg...

  • Page 9: Warranty Certificate

    TS-1 Warranty certificate (Please note our general terms and conditions) Model: TS-1 commode wheelchair Serial number:* (to be entered by dealer) Dealer Date and stamp * See the side frame for information stickers Bischoff & Bischoff GmbH • 04.05.2011...
  • Page 10 Bischoff & Bischoff GmbH Becker-Goering-Strasse 13 • D-76307 Karlsbad Tel.: +49 (0)700/6000 7070 • Fax: +49 (0)700/6000 8080 www.bischoff-bischoff.com info@bischoff-bischoff.de...
