Summary of Contents for Bischoff & Bischoff Neo XXL
- Page 1 Instruction Manual Bedienungsanleitung Neo XXL Enjoy mobility. Enjoy mobility.
-
Page 2: Table Of Contents
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL Table of contents Introduction Using the wheelchair 1.1. Signs and Symbols 4.1. Description of the control functions Important Safety Instructions 4.1.1. VR-2 control 2.1. General Safety Instructions 4.1.2. R-net control 2.2. -
Page 3: Introduction
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 1. Introduction 1.1. Signs and Symbols Dear user, Warning! These are especially safety-relevant You have decided on a high-quality Bischoff & Bischoff electric instructions. Follow the directions in the manual! wheelchair, and we would like to thank you for your trust. -
Page 4: Advice Regarding Emc Interference
Do not endanger other road users through inconsiderate driving, especially on walkways. 2.5. Purpose The Neo XXL electric wheelchair is designed for outdoor use by persons with impaired mobility. It is therefore sufficiently compact and agile medium distances and overcoming small obstacles outdoors. It is classified under category C according to the EN 12184 standard. -
Page 5: Indications For Use
2.6. Indications for Use 2.10. Information about range Inability or severely impaired ability to walk due to The range of the electric wheelchair Neo XXL is 40 km. The range • paralysis that can be achieved by electric wheelchairs depends on the following •... -
Page 6: Type Plate And Serial Number

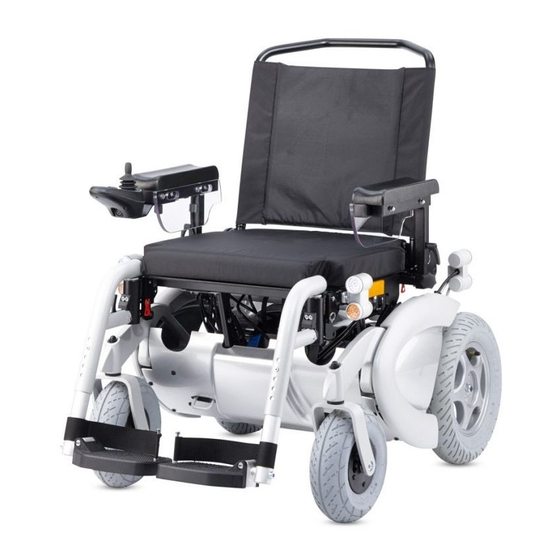

The type plate and serial number are located under the seat. Power Wheelchairs (crash tested) 3.4. Summary Bischoff & Bischoff GmbH Becker-Göring-Straße 13 Neo XXL product overview (fig 01a): D - 76307 Karlsbad Telefon 0700 - 60007070 Model: Neo XXL Model no.: 8500... -
Page 7: Basic Settings
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 3.5. Basic Settings Knee angle • The angle of the legrests can be set via a perforated plate. It is necessary to adjust the wheelchair to your body size before first use. -
Page 8: Backrest
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL Seat angle Removing the armrests • Release the clamping lever until you can adjust the seat angle. (do • To remove the armrest, loosen the wing bolt and pull out the not pull out). -
Page 9: Control Unit
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 3.5.6. Control unit 4. Using the wheelchair The control unit can be mounted either on the right or left-hand side underneath the armrest each. After adjusting the wheelchair to your personal needs, familiarize •... - Page 10 Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL Setting the Speed Range These buttons (fig 20) allow you to increase (right) or decrease (left) the maximum speed possible. Within each range you control the speed with the joystick.
-
Page 11: R-Net Control
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL • Move the joystick in the direction of travel and then to the neutral ON/OFF button position. It will beep in each position. Now the control is released. Press this button to switch on the wheelchair (fig. 26). The electrical components are then also enabled. -
Page 12: Lcd And The Most Important Symbols
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 4.1.3. LCD and the most important Profiles symbols This button allows you to select the available profiles (fig. 30). The profiles depend on the programming and the electrical components that are also connected. The profiles are created together with the authorised service engineer. -
Page 13: Electrical Adjustments
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 4.1.4. Electrical adjustments Profiles The profile number describes which profile the wheelchair is in. The text The seat position display must be enabled. also describes the current profile (fig. 37). -
Page 14: Diagnostic Display
Diagnostic Procedure • First fold the foot plates up or remove the leg rests. • Move the Neo XXL as close as possible to the present or future seat Proceed as follows: front to front • Read the error description, identify the module and the exact error •... -
Page 15: Driving The Wheelchair
• Make sure that you are comfortably and securely seated. • Press the On/Off button to switch on the Neo XXL 4.4. Leg supports • All electrical driving functions are now available... -
Page 16: Pushing The Wheelchair
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 4.5. Pushing the wheelchair 5. Technical data Dimensions and weigths If you wish to push the wheelchair in some situations, the brakes must be unlocked. The wheelchair is easy to push in freewheel mode (fig 46). -
Page 17: Maintenance Tips For Users
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL 6. Maintenance tips for users Driving characteristics Speed: 6 km/h (forwards) / 4km/h (backwards) 6.1. Cleaning and disinfection Climbing capacity: max. 12° Obstacle heigth: max. 50 mm Make sure that the wheelchair is switched off before starting to clean... -
Page 18: And Horn
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL When it is at a standstill the electromagnetic brake must lock with If the battery status display shows only the red LEDs, do not travel long an audible click. If you detect unusual brake behaviour, inform your distances and connect the battery charger to the wheelchair as soon mobility dealer immediately and do not use the wheelchair.. -
Page 19: Replacing Batteries
Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL Yellow: charger is switched on Continuous light: charging is in progress. Flashing 10-20 times a minute: recharging. When the batteries have reached the end of their life, Flashing 5 times a minute: batteries recharged. -
Page 20: Use By Others
Wheelchair suitable for use as a seat in a vehicle for transporting disabled people (fig. A) The Neo XXL wheelchair is suitable for continued use by others. Before it Wheelchair not suitable for use as a seat in a vehicle is handed on to another user, it should be serviced by a specialist dealer for transporting disabled people (fig. -
Page 21: Warranty
+49 (0)700 6000 7070 (Please note our general business terms and conditions) 13. Warranty Model: Neo XXL Guarantee items refer to all defects of the wheelchair which can demonstrably be referred to material defect or manufacturing defect. Serial Number:*... - Page 22 Neo XXL | Electric Wheelchair Electric Wheelchair | Neo XXL Notes Bischoff & Bischoff GmbH | 31.07.2017...
- Page 23 Bischoff & Bischoff GmbH Becker-Göring-Straße 13 D-76307 Karlsbad www.bischoff-bischoff.com...
