Installation information
for contractors
Fitting the vacuum tubes

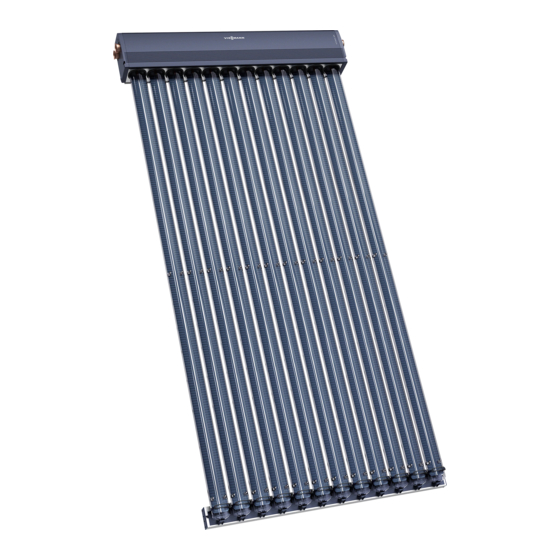

for Vitosol 300-TM, type SP3C
Safety instructions
Please follow these safety instructions closely to prevent accidents
and material losses.
Safety instructions explained
Danger
This symbol warns against the
risk of injury.
!
Please note
This symbol warns against the
risk of material losses and envi-
ronmental pollution.
Installation, commissioning, inspection,
maintenance and repairs must only be
carried out by a competent person
(heating engineer/installation contrac-
tor).
Fitting the vacuum tubes
Danger
Handle the vacuum tubes care-
fully. Broken vacuum tubes can
cause cuts.
Wear gloves and safety gog-
gles.
5792 651 GB
9/2017
VIESMANN
Before working on the equipment/heat-
ing system, isolate the power supply
(e.g. by removing a separate mains
fuse or by means of a main isolator)
and safeguard against unauthorised
reconnection.
Repairing components that fulfil a
safety function can compromise the
safe operation of your heating system.
For replacements, use only original
spare parts supplied or approved by
Viessmann.
Danger
The vacuum tube condenser
becomes very hot under insola-
tion.
Wear safety gloves.
Dispose after installation.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Viessmann Vitosol 300-TM
Summary of Contents for Viessmann Vitosol 300-TM
- Page 1 VIESMANN Installation information for contractors Fitting the vacuum tubes for Vitosol 300-TM, type SP3C Safety instructions Please follow these safety instructions closely to prevent accidents and material losses. Safety instructions explained Danger This symbol warns against the Before working on the equipment/heat- risk of injury.
- Page 2 Fitting the vacuum tubes (cont.) Installation information ■ Align the coated side of the absorber 25° with the sun. ■ Ensure that no part of the thermal insulation becomes trapped. ■ The surface of the condenser must be clean. ■ Position the condenser centrally in Please note the condenser holder inside the heat Never install or align (rotate) the...
- Page 3 Fitting the vacuum tubes (cont.) +25° 0° -25° 0° -25° Note on step 4: Note on step 5: If the vacuum tubes do not slide easily Ensure that tube holder brackets A do through the rubber seal, moisten the not become damaged. rubber seal with water.
- Page 4 The collectors may be damaged lation by covering them up. if the solar thermal system is not filled with heat transfer medium immediately after installation. Viessmann Werke GmbH & Co. KG Viessmann Limited D-35107 Allendorf Hortonwood 30, Telford Telephone: +49 6452 70-0...
