Seima LIARA Installation Manual

INSTALLATION GUIDE
LIARA WALL FACED

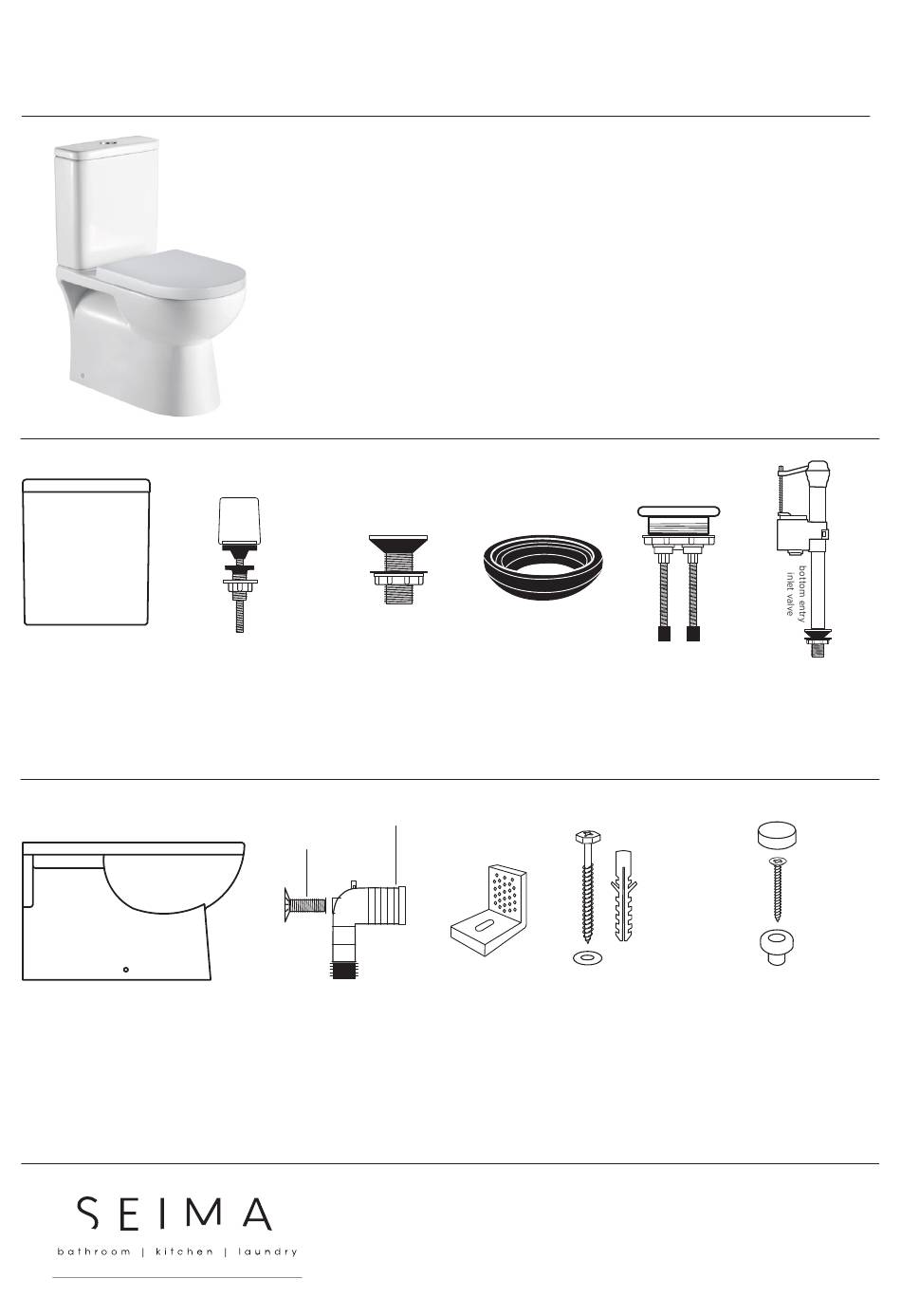

CISTERN PACKAGE CONTENTS
1 x ceramic cistern lid
1 x ceramic cistern base
Cistern is supplied with flush
valve and dual purpose inlet
valve already installed.
PAN PACKAGE CONTENTS
1 x ceramic pan
s e i m a . c o m . a u
2 x bolts w seals 2 x plugs
For attaching cistern to
Plugs can be used to plug
pan. White component
holes in sides of pan if
at top enables hand
required.
tightening.
Threaded
section can
be trimmed to
required size.
1 x pan connector
For connecting pan to floor
outlet pipe/S-trap.
1 x threaded section (with
flange plate)
Flange attaches to wall;
threaded section links to
pan connector.
Please note
−
Installation shall be in accordance with AS/NZS3500.
−
All measurements are in millimetres. Height dimensions are to base of pan. Make allowance for bedding.
−
Bedding: Fix pan to floor using a sand cement mixture of 3:1 to a depth of 60mm. Do not use lime or fast-drying cement.
−
Bracket fixing: The pan should be bedded with an acetic cured silicone sealant and fixed with the brackets supplied.
−
Dimensions are nominal and subject to normal ceramic manufacturing variations.
−
Specifications may vary without notice as part of our continuous improvement practices.
−
Clean with a damp cloth. Do not use abrasive cleaners, liquids or pastes.
IMPORTANT
1 Inspect the components before installation to ensure there are no visible defects.
If a defect is found, do not install the toilet suite and contact the supplier
immediately. Claims for defects will not be accepted after the product has been
installed.
2 This toilet suite is suitable for a variety of set-ups:
Cistern — accommodates either Back Entry Inlet connection or Bottom Entry Inlet
connection (left or right stop valve).
Pan — universal trap — accommodates S-trap installation or P-trap installation
(using appropriate connector; not supplied).
3 The toilet suite must be installed by a licensed plumber. Failure to do so may void
the warranty.
4 Installation must be in accordance with AS/NZS3500.
1 x rubber seal
For sealing outlet at
base of cistern.
Large end of pan connector can
be trimmed to suit setout.
2 x concealed fixing
brackets
Optional — can be
used to connect pan
to floor.
1 x flush button
Half flush left, full flush
right.
2 x floor bolts 2 x caps (chrome plated)
(+ white plugs) 2 x screws
2 x washers 2 x pan plugs (white)
Optional fixing #2 — used
Optional fixing #2 — used to
with fixing brackets to
secure pan to concealed fixing
secure pan to floor. Bolt is
bracket. Plastic plug is placed
inserted through bracket
into hole in side of pan exterior,
base hole.
screw is rebated into plug and
then screws into a hole in upright
section of bracket. Chrome cap
is used to cover plastic plug.
Note: The cistern can
be adapted for bottom
entry plumbing. The
bottom entry inlet
valve shown above is
included.
liara-wf-in | v 200 | page 1 of 4
