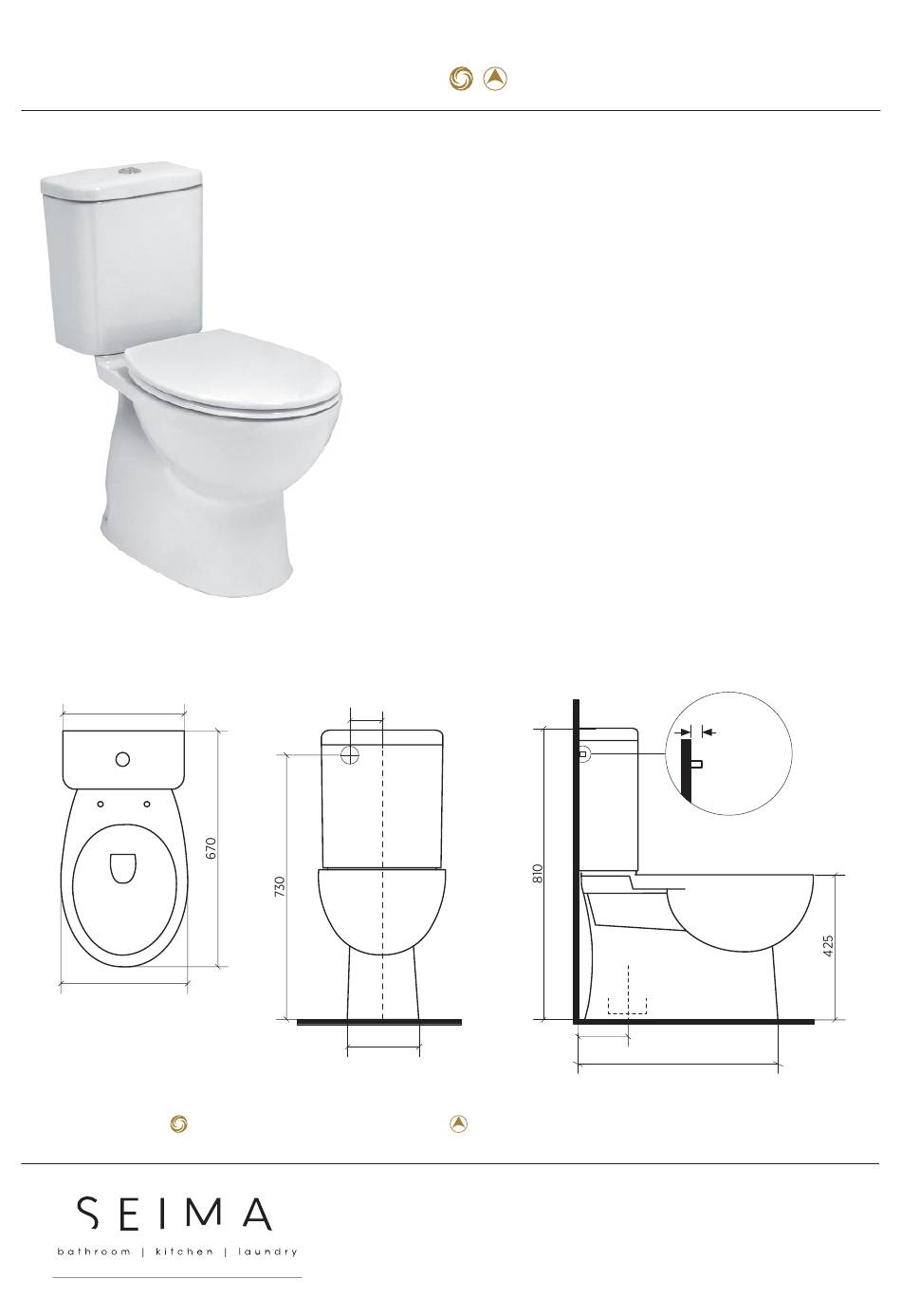

I N S TA L L AT I O N G U I D E
CHIOS CLOSE COUPLED
CERAMIC TOILET SUITE
350
370
s e i m a . c o m . a u
BACK ENTRY:
Setout position for
½" BSP nipple
120
Rimless Clean Flush pan – for an efficient, powerful flush.
Please note
−
Installation shall be in accordance with AS/NZS3500.
−
All measurements are in millimetres. Height dimensions are to base of pan. Make allowance for bedding.
−
Bedding: Fix pan to floor using a sand cement mixture of 3:1 to a depth of 60mm. Do not use lime or fast-drying cement.
−
Bracket fixing: The pan should be bedded with an acetic cured silicone sealant and fixed with the brackets supplied.
−
Dimensions are nominal and subject to normal ceramic manufacturing variations.
−
Specifications may vary without notice as part of our continuous improvement practices.
−
Clean with a damp cloth. Do not use abrasive cleaners, liquids or pastes.
Clean Flush, Easy Care Height
−
Clean Flush rimless pan design for an efficient, powerful flush
−
Easy care height, pan height 425 mm
−
White vitreous china
Quick release, soft closing seat
−
S trap only
−
Bottom entry plumbing, optional back entry plumbing
−
140 recommended setout
−
WELS 4 star 4.5/3L water saving flush
−
191788
ORDER CODE
191789
Bottom entry as standard, left and right inlet points.
CISTERN
Optional back entry plumbing.
Close coupled with rimless pan design.
PAN
Suitable for S trap installations.
TRAPS
Quick release, soft closing seat.
SEAT
4 star rating 4.5/3 litre water saving flush. WELS licence 0296.
WELS
140 mm recommended.
SETOUT
This is a close coupled toilet suite — the cistern is fixed directly to the
FIXING
pan and does not require wall fixing.
Pan may be bedded with cement base or using silicone sealant.
140 setout
280
recommended
Easy care height – making it easier to get on and off the seat.
Chios CF, bottom entry
(old code: STO-402-00)
Chios CF, back entry option
(old code: STO-402-01)
22
BACK ENTRY:
½" BSP nipple
approx 22mm
projection from
finished wall
140 rec
520
© Seima
chios-cc-in | v 4.0
