Seima Syros Select Close Coupled Installation Manual

Installation Guide
Syros Select Close Coupled
350
360
seima.com.au

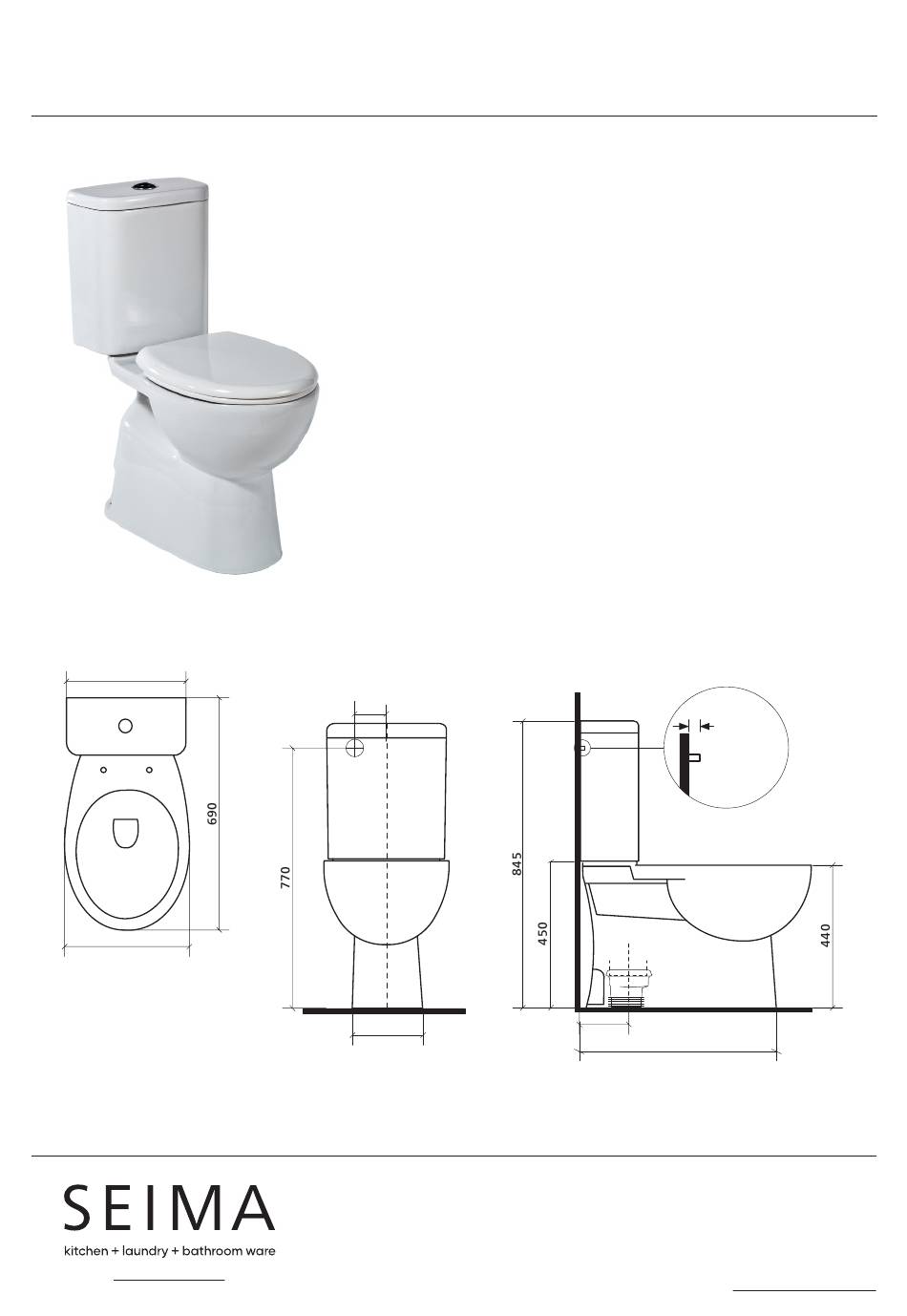

Ceramic close coupled toilet suite
Clean Flush, Nanoglaze, Easy Care Height
− Clean Flush rimless pan design for an efficient, powerful flush
− Easy care height, pan height 440 mm
− White vitreous china with nanoglaze surface, easy to clean
− Soft closing seat
− S trap
− Bottom entry or back entry plumbing
− WELS 4 star 4.5/3L water saving flush
CISTERN
PAN
TRAPS
SEAT
WELS
SETOUT
FIXING
BACK ENTRY:
Setout position for
½" BSP nipple
100
255
Please note
− Installation shall be in accordance with AS/NZS3500.
− All measurements are in millimetres. Height dimensions
are to base of pan. Make allowance for bedding.
− Bedding: Pan may be bedded with cement base or using
silicone sealant. Fix pan to floor using a sand cement
mixture of 3:1 to a depth of 60mm. Do not use lime or
fast-drying cement.
Left and right bottom entry inlet points. Back entry plumbing
option.
Close coupled with rimless pan design.
Suitable for S trap installations.
Soft closing seat.
4 star rating 4.5/3 litre water saving flush.
Variable 130-170mm using supplied connector; 150mm
recommended. Note that 110-190 can be achieved with 20mm
offset collar, not supplied.
This is a close coupled toilet suite — the cistern is fixed directly to
the pan and does not require wall fixing.
Pan may be bedded with cement base or using silicone sealant.
150 rec
150 setout
recommended
560
(range 110-190)
− Bracket fixing: The pan should be bedded with silicone
sealant and fixed with the brackets supplied.
− Do NOT use epoxy type adhesives.
− Dimensions are nominal and subject to normal ceramic
manufacturing variations.
− Specifications may vary without notice as part of our
continuous improvement practices.
− Clean with a damp cloth. Do not use abrasive cleaners,
liquids or pastes.
22
BACK ENTRY:
½" BSP nipple
approx 22mm
projection from
finished wall
syros-cc-in | v 1.0 | page 1 of 4
