Modia / STO-20
Installation Instructions

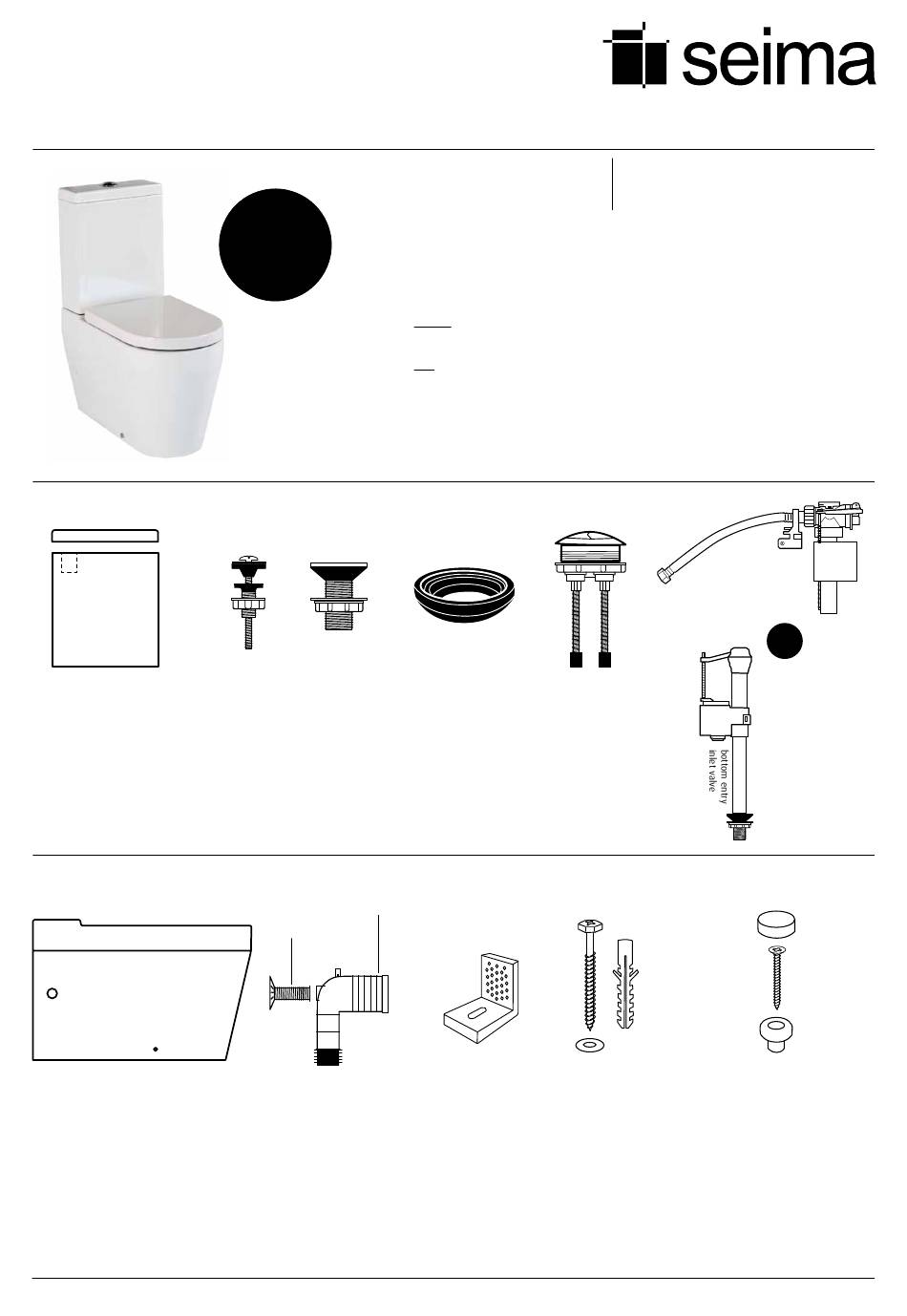

Cistern package contents
1 x ceramic cistern lid
1 x ceramic cistern base
Cistern is supplied with flush
valve and bottom entry inlet
valve already installed.
Pan package contents
1 x ceramic pan
X9000009 | page 1 of 4

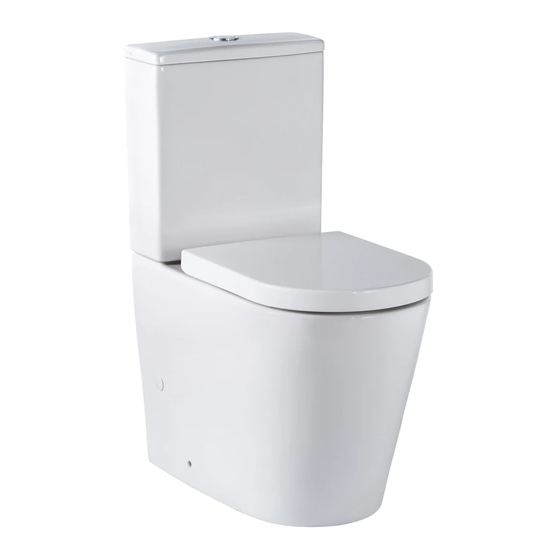

Ceramic Wall Faced Toilet Suite
Important
Modia
1
STO-20
2
3
4
2 x bolts
3 x plugs
with seals
One required
For attaching
if installing
cistern to pan.
back entry (BE)
version; others
can be used to
plug holes in
sides of pan if
required.
Threaded
Large end of pan connector
section can be
can be trimmed to suit setout.
trimmed to
required size.
1 x pan connector
For connecting pan to
floor outlet pipe/S-trap.
1 x threaded section
(with flange plate)
Flange attaches to wall;
threaded section links to
pan connector.
Inspect the components before installation to ensure there are no visible defects.
If a defect is found, do not install the toilet suite and contact the supplier immediately.
Claims for defects will not be accepted after the product has been installed.
This toilet suite is suitable for a variety of set-ups:
n Cistern — accommodates either Bottom Entry Inlet connection
(left or right stop valve) or Back Entry Inlet connection.
n Pan — universal trap — accommodates S-trap installation or
P-trap installation (using appropriate connector; not supplied).
The toilet suite must be installed by a licensed plumber. Failure to do so may void
the warranty.
Installation must be in accordance with AS/NZS3500.
1 x rubber seal
1 x flush button
For sealing outlet at
Half flush left, full
base of cistern.
flush right.
2 x concealed
2 x floor bolts
fixing brackets
(+ white plugs)
2 x washers
Optional — can be
used to connect pan
Optional fixing #2 —
to floor.
used with fixing brackets
to secure pan to floor.
Bolt is inserted through
bracket base hole.
Order codes
STO-20-BE
Back Entry inlet plumbing
STO-20
Bottom Entry inlet plumbing
1 x back entry
inlet valve
Supplied with
STO-20BE.
OR
1 x bottom entry
inlet valve
Supplied with
STO-20.
2 x caps (chrome plated)
2 x screws
2 x pan plugs (white)
Optional fixing #2 — used
to secure pan to concealed
fixing bracket. Plastic plug
is placed into hole in side of
pan exterior, screw is rebated
into plug and then screws
into a hole in upright section
of bracket. Chrome cap is
used to cover plastic plug.
IN-Modia_STO-20 | v2.0
.com.au
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Seima Modia STO-20
Summary of Contents for Seima Modia STO-20
- Page 1 Modia / STO-20 Ceramic Wall Faced Toilet Suite Installation Instructions .com.au Order codes STO-20-BE Back Entry inlet plumbing Important STO-20 Bottom Entry inlet plumbing Modia Inspect the components before installation to ensure there are no visible defects. If a defect is found, do not install the toilet suite and contact the supplier immediately. STO-20 Claims for defects will not be accepted after the product has been installed.
- Page 2 Modia / STO-20 Installation Instructions S-trap procedure — Securing the pan Cistern — set-up for Back Entry connector in place inlet plumbing 1.1 Determine the centre of the pan and mark the centre line on the Diagram A shows the cistern as supplied for Back Entry plumbing, with floor and wall.
- Page 3 .com.au Back Entry installation Securing the pan on the floor Connect the flexible hose to the ½” BSP nipple in the wall outlet. 6.1 Cement fixing (optional fixing #1) Run the flexible hose behind the flush valve, ensuring that the hose If using cement bedding, level the pan while the cement does not obstruct the operation of the flush valve.
- Page 4 Modia / STO-20 .com.au Installation Instructions Seat package and installation To remove seat, press 1 x solid construction seat 2 x stainless steel caps the two chrome buttons and lid — soft closing Used to cover stainless steel plate w pin. at base of seat.
