Seima Chios Care Link Toilet Suite Installation Manual

Installation Guide
Chios Care Link Toilet Suite

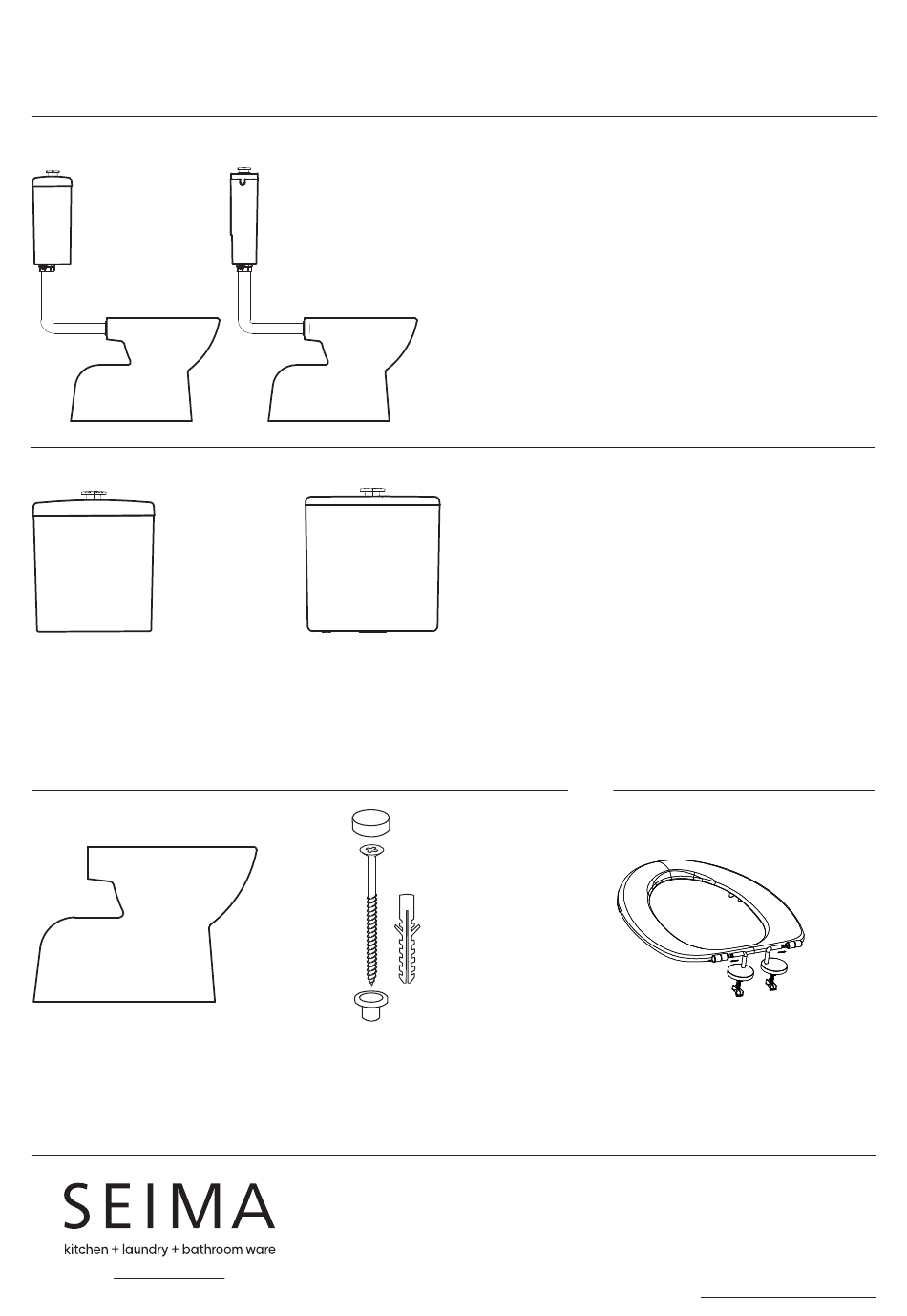

CHOICE OF CERAMIC OR PLASTIC CISTERN
ceramic
cistern
CISTERN PACKAGE CONTENTS
CERAMIC CISTERN
comes with flush valve
and Bottom Entry inlet
valve already installed.
1 x ceramic base and lid
with raised flush buttons
containing:
1 x flush valve
1 x bottom entry inlet valve
Cistern is supplied with flush valve
and Bottom Entry inlet valve already
installed. See Diagram A.
PAN PACKAGE CONTENTS
1 x ceramic pan
seima.com.au
plastic cistern
PLASTIC CISTERN
OR
comes with flush valve
and Bottom Entry inlet
valve already installed.
1 x plastic base and lid
with raised flush buttons
containing:
1 x flush valve
1 x bottom entry inlet valve
Cistern is supplied with flush
valve and Bottom Entry inlet valve
already installed. See Diagram A.
2 x caps (white)
2 x floor screws (+ white plugs)
2 x pan plugs (white)
Optional fixing #2 — used to secure pan to floor.
Plastic plug is placed into hole at base of pan
exterior; screw is rebated into plug. Cap is used
to cover plastic plug.
Please note
− Installation shall be in accordance with AS/NZS3500.
− All measurements are in millimetres. Height dimensions
are to base of pan. Make allowance for bedding.
− Bedding: Pan may be bedded with cement base or using
silicone sealant. Fix pan to floor using a sand cement
mixture of 3:1 to a depth of 60mm. Do not use lime or
fast-drying cement.
IMPORTANT
1 Inspect the components before installation to
ensure there are no visible defects. If a defect is
found, do not install the toilet suite and contact
the supplier immediately. Claims for defects
will not be accepted after the product has been
installed.
2 This wall faced toilet suite is suitable for a
variety of set-ups:
CISTERN — accommodates Bottom Entry Inlet
connection (left or right stop valve).
PAN — accommodates S-trap installation.
3 The toilet suite must be installed by a licensed
plumber. Failure to do so may void the warranty.
SEAT PACKAGE CONTENTS
1 x Care toilet seat and fittings
− Bracket fixing: The pan should be bedded with silicone
sealant and fixed with the brackets supplied.
− Do NOT use epoxy type adhesives.
− Dimensions are nominal and subject to normal ceramic
manufacturing variations.
− Specifications may vary without notice as part of our
continuous improvement practices.
− Clean with a damp cloth. Do not use abrasive cleaners,
liquids or pastes.
chios-care-link-in | v 1.0 | page 1 of 5
