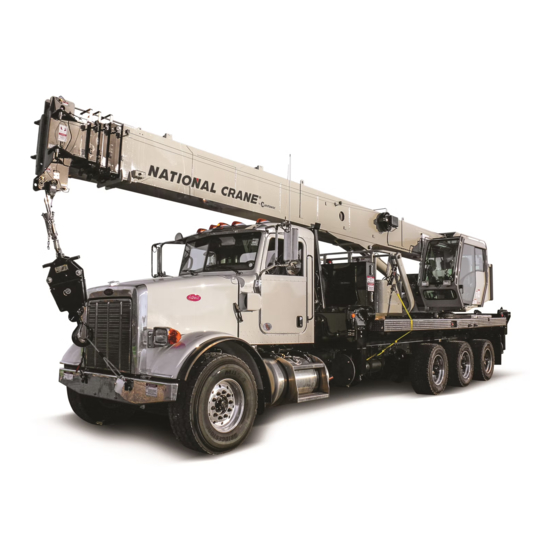

Manitowoc NATIOMAL CRANE NBT40-1 Manual
Load charts & reach diagram
Hide thumbs
Also See for NATIOMAL CRANE NBT40-1:
- Operator's manual (206 pages) ,
- Service manual (238 pages)
Related Manuals for Manitowoc NATIOMAL CRANE NBT40-1
Summary of Contents for Manitowoc NATIOMAL CRANE NBT40-1
- Page 1 NBT40-1 LOAD CHARTS & REACH DIAGRAM Crane Load Chart complies with ASME B30.5 / CSA Z150 Aerial Work Platform Reach Diagram complies with ANSI/SAIA A92.2 / CSA C225 SERIAL NUMBER GA24150 NBT40-1 S/N xxxxxx...
- Page 2 NBT40-1 S/N xxxxxx...
- Page 3 TABLE OF CONTENTS GENERAL NOTES ........................4-5 LINE PULLS & REEVING INFO / HOIST PERFORMANCE ............6 RANGE DIAGRAM w/ EXTENSION .................... 7 WEIGHT REDUCTIONS / LIFTING AREA DIAGRAM ..............8 ON OUTRIGGERS FULLY EXTENDED MAIN BOOM 360° WITHOUT EXTENSION ................. 9 MAIN BOOM 360°...
- Page 4 NOTES FOR LIFTING CAPACITIES GENERAL: 1. Rated loads as shown on lift chart pertain to this equipment as originally manufactured. Modifications to the equipment or use of optional equipment other than that specified can result in a reduction of capacity. 2.
- Page 5 NOTES FOR LIFTING CAPACITIES (cont'd.) OPERATION (cont'd.): 11. The boom angle before loading should be greater than the loaded boom angle to account for deflection. 12. When operating in the "On Outriggers 50% Extended (17.5' spread)" mode, the outrigger beam pins must be engaged.
- Page 6 CAPACITY REDUCTIONS FOR SYNTHETIC ROPE USE: If only synthetic rope is installed on the hoist(s), the following capacity reductions apply: Main boom charts Extension charts Outriggers fully extended 140 lb 0 lb Outriggers 50% extended 270 lb 0 lb Outriggers 0% extended 450 lb If synthetic rope is installed on either the main or aux hoist, and wire rope is installed on the other hoist, no capacity reductions are required.
- Page 7 NBT40-1 S/N xxxxxx...
- Page 8 WEIGHT REDUCTIONS FOR LOAD HANDLING DEVICES When lifting over boom extension, deduct AERIAL WORK PLATFORM * 1000 lb total weight of all load handling devices AUXILIARY BOOM NOSE 71 lb reeved over main boom nose directly from HOOKBLOCKS and HEADACHE BALLS: boom extension capacity.
- Page 9 RATED LIFTING CAPACITIES IN POUNDS WITHOUT STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS FULLY EXTENDED - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 80,000 (74.9) 75,000 (73.1) 66,500 40,000 (69.4) (75.6) 55,000...
- Page 10 RATED LIFTING CAPACITIES IN POUNDS WITH STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS FULLY EXTENDED - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 79,200 (74.9) 74,200 (73.1) 65,700 39,350 (69.4) (75.6) 54,200...
- Page 11 31 FT. - 55 FT. TELE BOOM EXTENSION ON OUTRIGGERS FULLY EXTENDED - 360° BOOM EXTENSION CAPACITY Radius 31 ft. LENGTH NOTES: Feet 1. 31 ft. and 55 ft. extension lengths may 3,400 be used for single line lifting service. (80) 2.
- Page 12 RATED LIFTING CAPACITIES IN POUNDS WITHOUT STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS 50% EXTENDED (17.5 ft. spread) - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 80,000 (74.9) 75,000 (73.1) 66,500 40,000...
- Page 13 RATED LIFTING CAPACITIES IN POUNDS WITH STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS 50% EXTENDED (17.5 ft. spread) - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 79,200 (74.9) 74,200 (73.1) 65,700 39,350...
- Page 14 RATED LIFTING CAPACITIES IN POUNDS WITHOUT STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS 0% EXTENDED (6.5 ft. spread) - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 36,500 (75) 27,350 (73.2) 17,250 18,050...
- Page 15 RATED LIFTING CAPACITIES IN POUNDS WITH STOWED EXTENSION 34 FT. - 142 FT. BOOM ON OUTRIGGERS 0% EXTENDED (6.5 ft. spread) - 360° Radius Main Boom Length in Feet Feet 47-A 61-B 74-C 88-D 101-E 115-F 128-G 35,700 (75) 26,550 (73.2) 16,450 17,400...
- Page 16 NOTES FOR AERIAL WORK PLATFORM OPERATION GENERAL: Before using the controls, the operator must be familiar with the warning and safety instructions of the equipment, aerial work platform, and proper work practices. 1. Personnel in the platform must adhere to the instructions, warnings, cautions and dangers described on the decals located on the equipment and platform.
- Page 17 RCL operating codes : #11 - Platform on main boom, no stowed extension #13 - Platform on 31 ft. tele extension #12 - Platform on main boom, extension stowed #14 - Platform on 55 ft. tele extension NBT40-1 S/N xxxxxx...
