| Spectre 3.0 Elite Kit Installation Manual

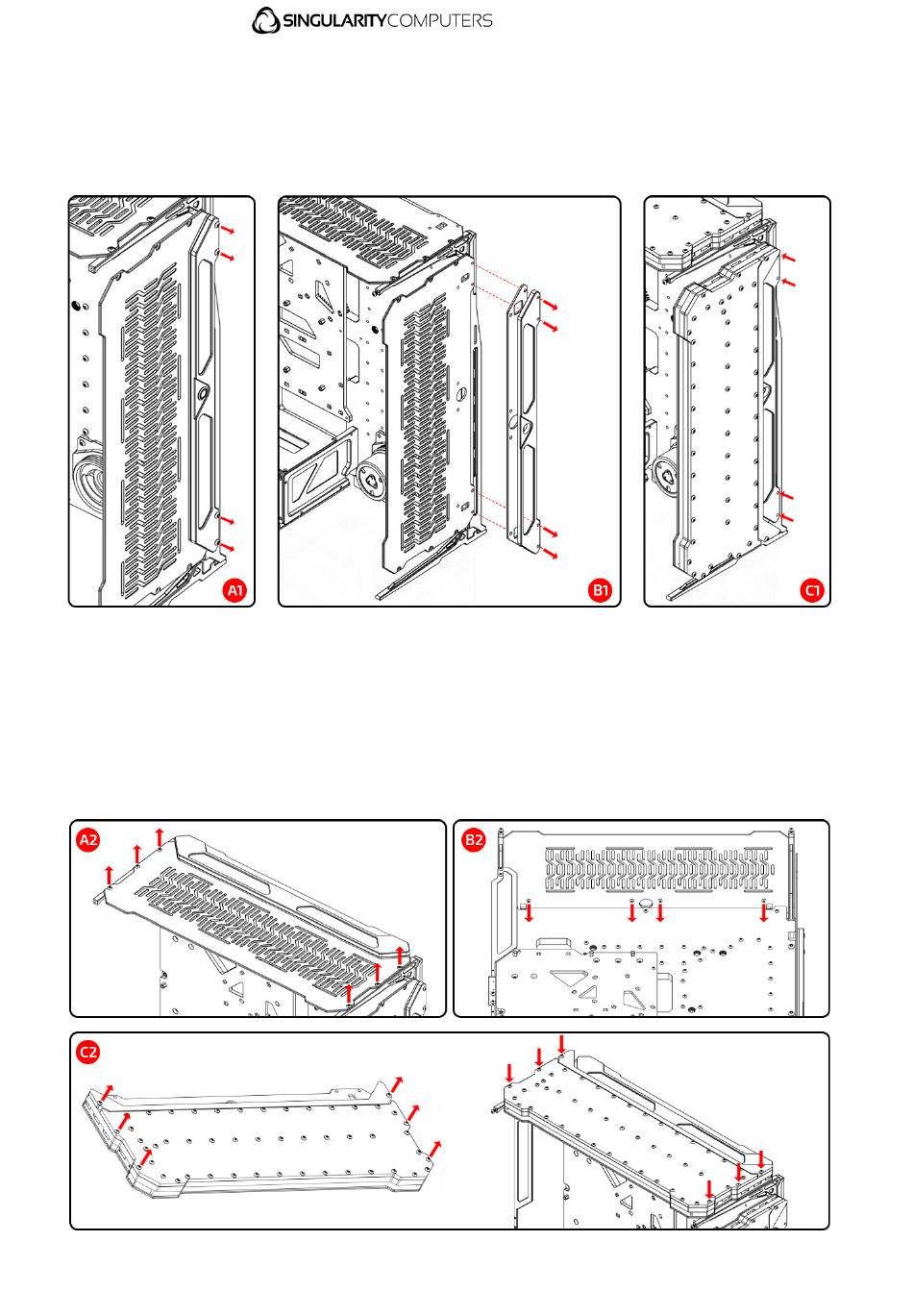

Installing Spectre 3.0 Elite Kit onto the Front Panel

Remove the standard front panel by undoing the 4x M4 x 20mm fasteners marked in Diagram A1.
The LED Cover and LED Diffusor can then be removed (Diagram B2). Install the Spectre 3.0 Front
Elite Kit and replace the LED Cover and LED Diffusor, then replace and tighten the fasteners
(Diagram C1).

Installing Spectre 3.0 Elite Kit onto the Top Panel

Remove the Spectre 3.0 standard Top Panel by undoing the 6 x M4 x 6mm fasteners marked in
the Diagram A2. Then remove the Angle Panel from the standard Top Panel by undoing the
fasteners marked in Diagram B2. Attach the Angle to the Spectre 3.0 Elite Kit using the same
fasteners. Remove the nuts and spring washers from the Spectre 3.0 Elite Kit marked in Diagram
C2, then attach it to the Top Struts using the included 35mm fasteners which were already
installed.
Revision 1.0 Page | 2
