For UNI 7129 and UNI 11137: 2012 gas tightness tests
x
Features gas tightness test printout
x
Pressure recorder function (Data Logger)
x
Programmable min/max alarm levels
x
Auditory and visual display alerts for off-range values
x
Manual set for main parameters
x
Automatic switch off function
x
Operates on 6 1.5V alkaline AAA batteries
x
-
A
UNIT
MEM

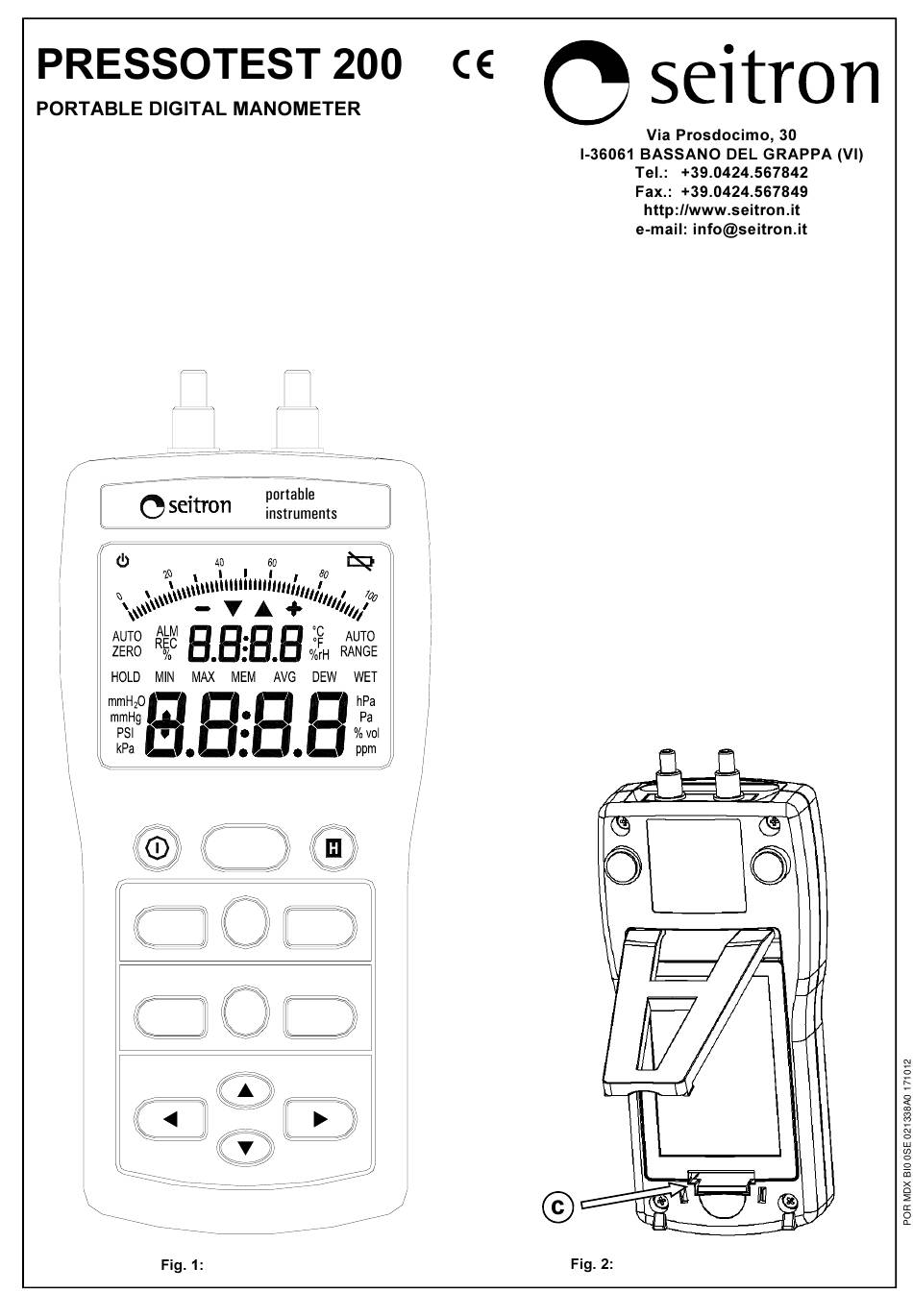

External appearance.
+
B
> 0 <
SET
FUNC
ESC
PRINT
Ã
Battery compartment location.
Ã
Advertisement
Related Manuals for Seitron PRESSOTEST 200
Summary of Contents for Seitron PRESSOTEST 200
- Page 1 Ã Ã Ã Ã For UNI 7129 and UNI 11137: 2012 gas tightness tests Features gas tightness test printout Pressure recorder function (Data Logger) Programmable min/max alarm levels Auditory and visual display alerts for off-range values Manual set for main parameters Ã...
- Page 2 The PRESSOTEST is a portable digital manometer which has been designed for hydraulic systems. As well as all the standard manometer functions, PRESSOTEST also features a digital auto-zero function, hold function, six different measurement units, overflow and underflow alarms, minimum and peak alarms with programmable thresholds, date and time display clock, programmable automatic switch off function.
- Page 3 Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã > 0 < Ã Ã Ã Ã UNIT FUNC Ã Ã Ã Ã Ã PRINT Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã Ã...
- Page 4 The ’ ’ key confirms operations. It must be pressed each time a function is activated or to confirm a parameter. The ’ ’ key cancels current operations. This key can be used to interrupt a gas tight test or to reset the previous parameters.
- Page 5 Use the ’ ’ key to access functions. Use the arrow keys to select a gas tight test or the Data Logger function from the menu: Gas tight test for working systems. Gas tight test for new or reconditioned systems. Acquires and saves pressure trends.
- Page 6 An important point to bear in mind with regards the sequence of settings for a gas tight test is that the values inserted are saved and retrieved for carrying out the test only if the test itself is started. This stores the test data until a new test is carried out, but has the disadvantage that if a screen is cancelled by pressing ’...
- Page 7 During the test the display visualises the pressure and the test time remaining. Pressing the ’ ’ key will show the fall in pressure from the beginning of the test. Running the test automatically saves the parameters involved and deletes data from previous tests. The flashing ’...
- Page 8 The UNI 7129 norm test is required to approve new systems or reconditioned systems that have been unused for a period of maintenance. For the UNI 7129 gas tight test with PRESSOTEST prime the system to a pressure of at least 100mBar with inert gas, stabilise the test gas for at least 15 minutes and then wait 15 minutes while the instrument evaluates the fall in pressure in the system.
- Page 9 The ’ ’ function records and saves pressare status over time. Analysed instantaneous, minimum, mean and peak value sizes and coupled with their observation instants can be evaluated. Select the function, before activating recording using ’ ’, some parameters need to be set: ’...
- Page 10 - Press key to activate the edit mode (parameter flashes). - Press to edit. - If the parameter is numeric press to edit the flashing figure. - If numbers with decimal points are in the consented range press to place the decimal point in the position required.
- Page 11 Insert the test gas: air or combustible. Insert test gas stabilisation time in minutes. Pressurizze the piping Prime the system to the à pressure shown on the upper display. Start the test gas à stabilisation. Press ’ ’ to stop stabilisation before allotted time expires.
- Page 12 - Press key to activate the edit mode (parameter flashes). - Press to edit. - If the parameter is numeric press to edit the flashing figure. - If numbers with decimal points are in the consented range press to place the decimal point in the position required.
- Page 13 Start the test gas stabilisation. à Press ’ ’ to stop stabilisation before allotted time expires. Automatically Wait to run gas tight test. Press ’ ’ to display à system pressure or pressure change at the start of the test. Automatically At the end of the test the result is displayed...
- Page 14 - Press key to activate the edit mode (parameter flashes). - Press to edit. - If the parameter is numeric press to edit the flashing figure. - If numbers with decimal points are in the consented range press to place the decimal point in the position required.
- Page 15 Start recording by pressing ’ ’. Press ’ ’ to visualise à à system pressure or 5(& 5(& à à recorded values. Automatically At the end of recording à acquired data is displayed. à To visualise details. PRINT Align printer with the manometer and press ’...
- Page 16 - Press key to activate the edit mode (parameter flashes). - Press to edit. - If the parameter is numeric press to edit the flashing figure. - If numbers with decimal points are in the consented range press to place the decimal point in the position required.
- Page 17 Set peak alarm threshold (the alarm goes off if the pressure exceeds the à threshold). Decimal values à are allowed. The ’ ’ key edits the threshold measurement unit. Set minimum alarm. à à Set minimum alarm threshold (the alarm goes off if the pressure falls Ã...
- Page 18 The manometer has two pressure connections which can be used to measure: : apply pressure to be measured to the positive (righthand) connection and leave the other connection open. : apply pressure to be measured to the negative (lefthand) connection and leave the other connection open.
