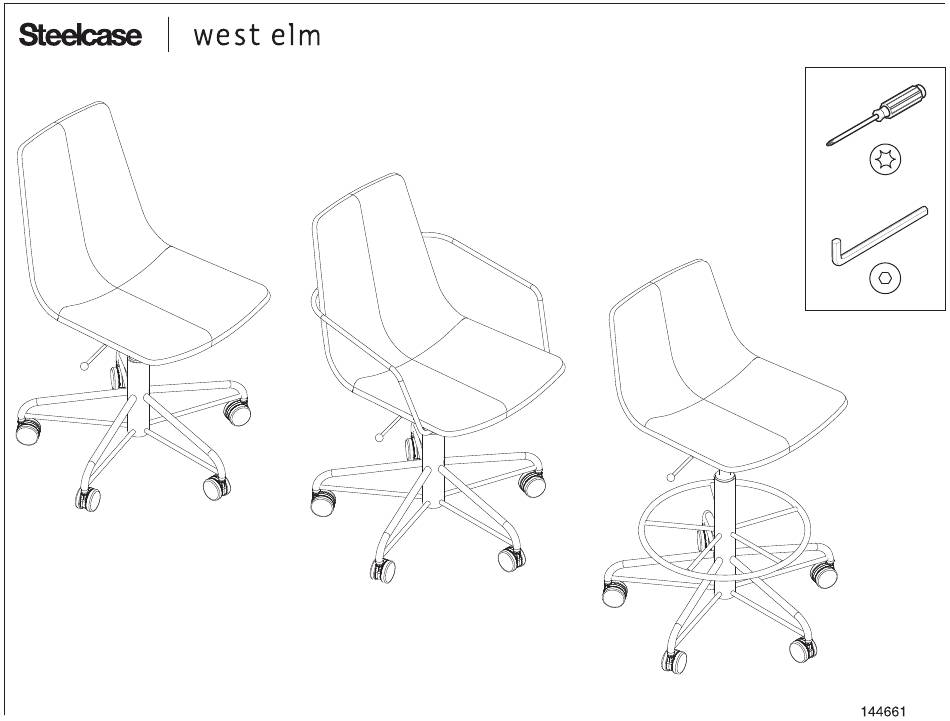

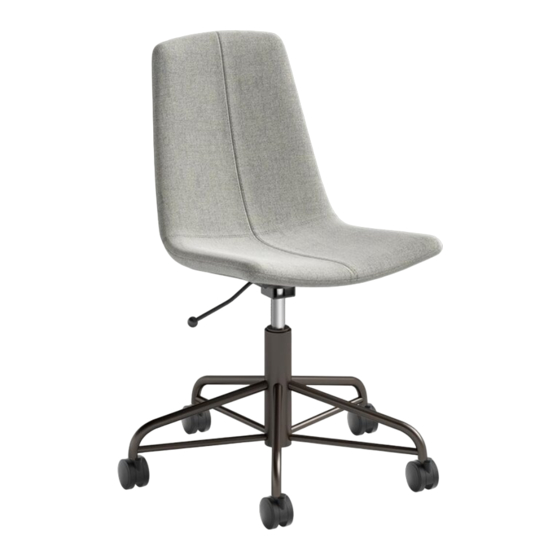

Steelcase west elm Nimbus Customer Service Instructions

Slope 5 Star Seating Customer Service Instruction

T30

If you have a problem, question, or request, call

your local dealer, or Steelcase Line 1 at

888.STEELCASE (888.783.3522)

for immediate action by people who want to help you.

(Outside the U.S.A., Canada, Mexico, Puerto Rico,

and the U.S. Virgin Islands, call: 1.616.247.2500)

Or visit our website: www.steelcase.com

2017 Steelcase Inc.

Grand Rapids, MI 49501

U.S.A.

Page 1 of 5

Printed in U.S.A.

Rev B

Table of Contents

Need help?

Do you have a question about the west elm Nimbus and is the answer not in the manual?

Page 1 ® Slope 5 Star Seating Customer Service Instruction If you have a problem, question, or request, call your local dealer, or Steelcase Line 1 at 888.STEELCASE (888.783.3522) for immediate action by people who want to help you. (Outside the U.S.A., Canada, Mexico, Puerto Rico, and the U.S.
Page 2 ® Bring arm into position from the bottom side of the chair frame. Click both back tabs into seat back. Align arm with holes, arm will have tension when holes are aligned – this is intended. Beginning with the inside bolt, install four (4) Hex head bolts (14mm length) and flat washer to 48 in-lbs (5.5 Nm).
Page 3 ® Caster Replacement Position chair on its side on a clean soft surface. To remove casters: Pull outwards on casters while tapping base with a plastic mallet. CASTER Insert new casters into base and tap them in with a plastic mallet. Base Replacement Position chair as shown.
Page 4 ® Base Replacement Page 4 of 5 Rev B...
Page 5 ® Actuator and Tapered Spacer Replacement Place chair, face down, on a clean scratch resistant surface. Remove four (4) torx head screws and flat M6x30mm washers from the seat. FLAT WASHER Replace actuator and/or tapered spacer. NOTE: Thicker portion of spacer faces front of chair. Start bolts by hand with longer bolts in front holes then torque to 48 in-lbs (5.5 Nm).
