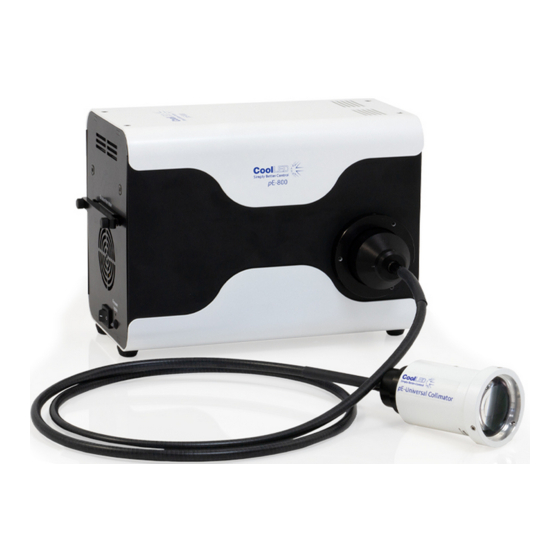

CoolLED pE-800 Setup Manual

CoolLED pE-800 Setup Manual

Metamorph
Hide thumbs Also See for pE-800:

Advertisement

MetaMorph Set-up Guide for pE-800 with

Introduction

The pE-6501-8 has been designed to allow fast triggering of the pE-800 Illumination System
and control of all eight LEDs. The pE-6501-8 utilises the National Instruments USB-6501
which has been integrated into MetaMorph.
This User Manual will provide the information required to setup the pE-6501-8 with the pE-
800 into MetaMorph.

Safety Precautions

The pE-6501-8 does not pose any real safety risks itself, however as it is designed to be used
with CoolLED's range of high intensity Illumination Systems, the appropriate precautions
should be taken.
When installing the pE-6501-8, never switch on the Illumination System until it has been
securely fitted to the microscope. By following this basic safety rule, protection from the
collimated light beam will be provided by the microscope itself, minimising risk of injury and
damage. The pE-6501-8 or pE-800 Illumination System should never be operated with the
external covers removed, as this will result in the safety of the units being impaired.
To clean the exterior of the pE-6501-8, use a slightly dampened cloth with a simple
water/detergent solution only.
Getting Started – System Components
The CoolLED pE-6501-8 is supplied with the following components:
pE-6501-8
TTL cable for connecting the pE-800 to the pE-6501-8
A USB cable
A USB stick with Product User Manuals
If any components are missing or appear damaged, please contact CoolLED immediately.
pE-6501-8
Issue Date: 13/11/2020

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pE-800 and is the answer not in the manual?

Questions and answers

Summary of Contents for CoolLED pE-800

  • Page 1 Issue Date: 13/11/2020 Introduction The pE-6501-8 has been designed to allow fast triggering of the pE-800 Illumination System and control of all eight LEDs. The pE-6501-8 utilises the National Instruments USB-6501 which has been integrated into MetaMorph. This User Manual will provide the information required to setup the pE-6501-8 with the pE- 800 into MetaMorph.
  • Page 2 The supplied power, USB and TTL cable attached to the pE-800 The pE-6501-8 has a TTL connection to fit the TTL cable to the pE-800 (the BNC connection is not used here). Connect the TTL cable to the pE-800 and pE-6501-8. Finally, connect the pE- 6501-8 to the PC using the supplied USB cable.
  • Page 3 Select ‘Ni-DAQmx’ which will take you to a download page.
  • Page 4 ‘Configure Hardware’ and ‘Install System Devices’ Scroll down to ‘National Instruments NI-DAQmx’ and select it and click ‘Install’. You should now see this under the ‘Installed Devices’ column. This should have eight shutters available- one for each of the eight LEDs in the pE-800.
  • Page 5 The Meta Imaging Series Administrator can now be closed by again clicking ‘OK’. The pE- 6501-8 can now be used within MetaMorph. Configuring the pE-800 with the pE-6501-8 within MetaMorph Open MetaMorph and on the top ribbon select ‘Devices’ and ‘Device Control’. In here, go to the ‘Configure’...
  • Page 6 As the pE-6501-8 gives digital on/ off, the irradiance for the LEDs should be set on the LightBridge software that comes with the pE-800. The LightBridge software comes on the USB stick that comes with the pE-800 or can be downloaded from https://www.coolled.com/support/imaging-software/. For more...
  • Page 7 The pE-6501-8 can now be used to trigger the pE-800 within the MetaMorph software. Setting up a simple experiment using the pE-800 To create an experiment, select ‘Multi-Dimensional Acquisition’ from the Apps tab. In the ‘Main’ tab, set up the type of experiment to be run. Go through the next couple of tabs, changing the parameters to suit the application.
