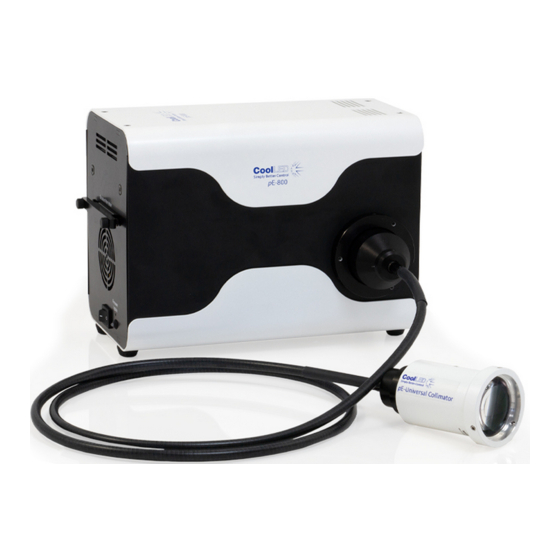

CoolLED pE-800 Quick Start Manual

8-channel led illumination

Hide thumbs Also See for pE-800:

Quick Start Guide

pE-800

8-channel LED illumination

This guide should provide some basic information on the setup and operation of the CoolLED

pE-800 Illumination System.

Before operating this product please read and observe the advice given in the safety section

of the full User Manual.

For more detailed information on the full range of options and functions please see the full

User Manual.

DOC-059 Iss 1

Table of Contents

Need help?

Do you have a question about the pE-800 and is the answer not in the manual?

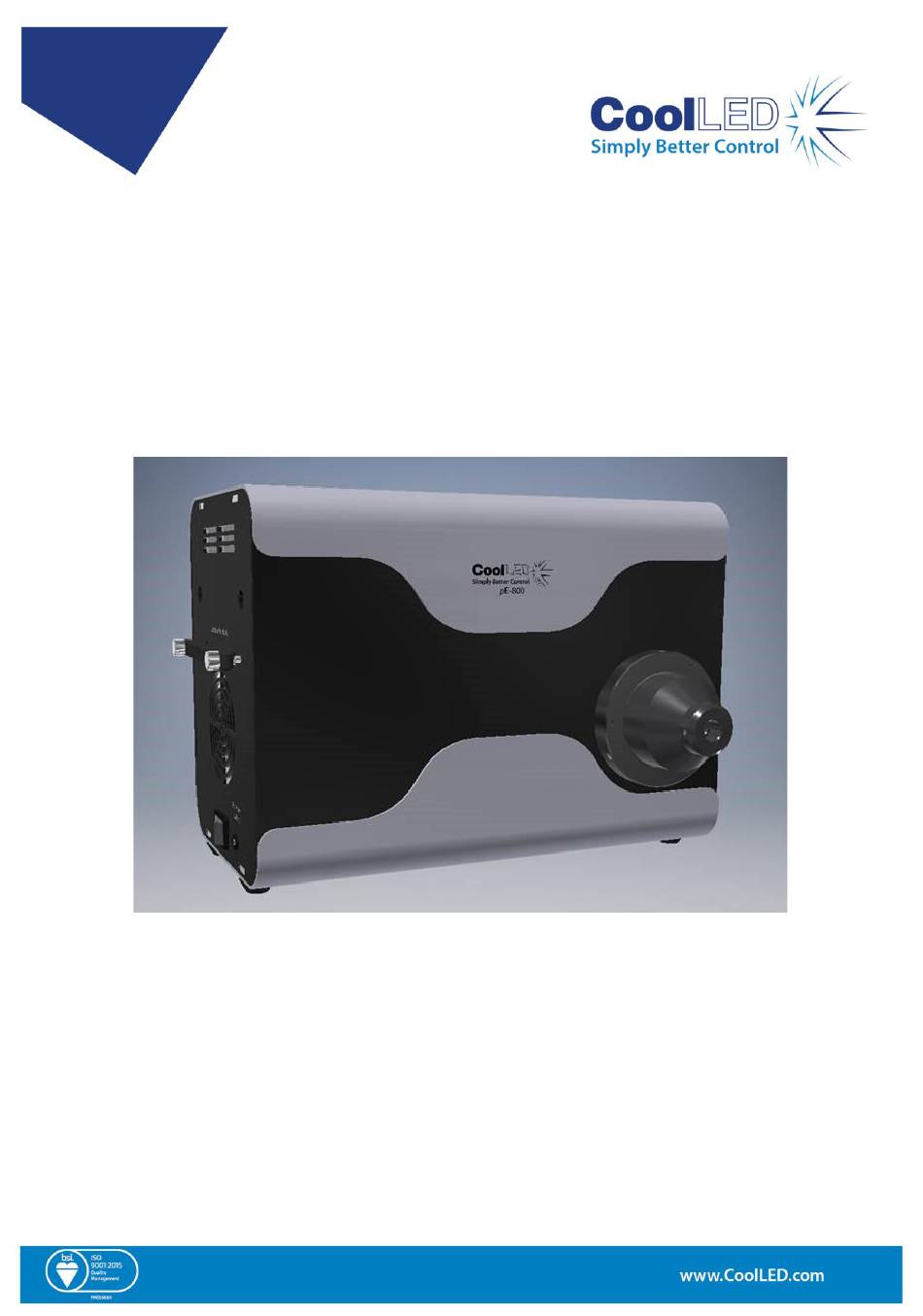

Page 1 Quick Start Guide pE-800 8-channel LED illumination This guide should provide some basic information on the setup and operation of the CoolLED pE-800 Illumination System. Before operating this product please read and observe the advice given in the safety section of the full User Manual.
Page 2 Contents A typical pE-800 order will include a pE-800 Light Source, Power Supply and Mains Power Cable for the specified region of use. Your order may also include items such as a Liquid Light Guide, pE-Universal Collimator, Microscope Adaptor or additional accessories.
Page 3 Attach the light guide to the microscope, either directly or using appropriate collimating optics. If using the CoolLED pE-Universal Collimator, please see the pE-Universal Collimator User Manual for full details of attaching to the microscope and optimising the light output.
Page 4 The LightBridge allows the full control of the pE-800. Any of the eight installed channels can be operated at the same time. The irradiance level for each of the channels can be adjusted by typing in the textbox, using the arrow buttons next to the irradiance figure or by adjusting the irradiance slider.
