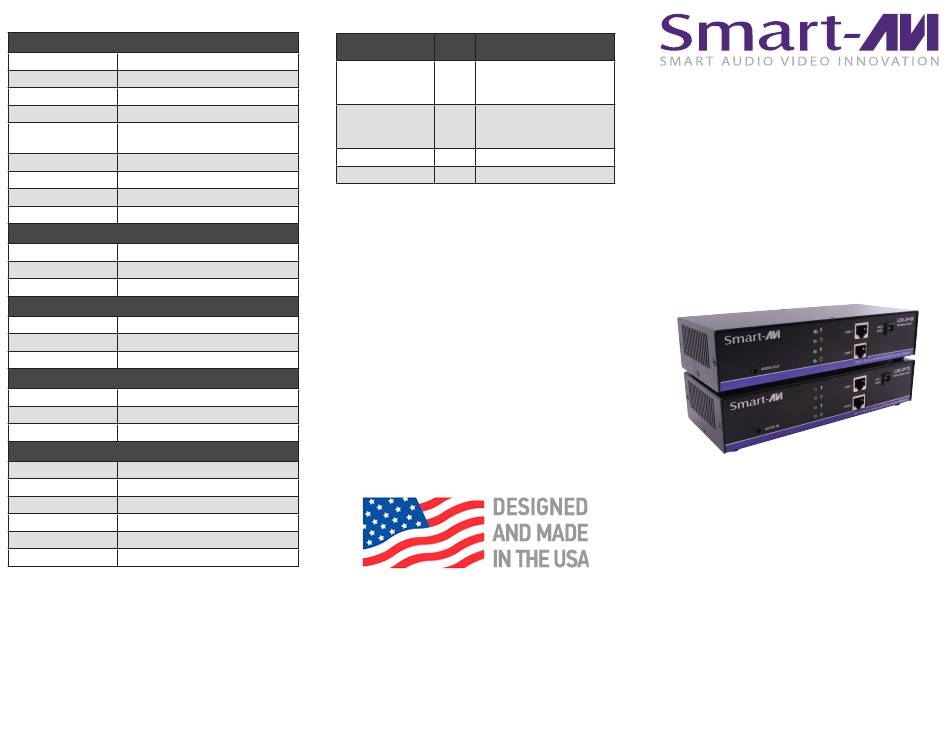

SMART-AVI LDX-2P Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format DVI-D
Maximum Pixel Clock 165 MHz
Input Interface (TX) (2) DVI-D 29-pin female
Output interface (RX) (2) DVI-D 29-pin female
Up to 1920 x 1200 @ 60Hz AND
Resolution
Up to 4K/2K (3840x2160) @ 30Hz
DDC 5 volts p-p (TTL)
Input equalization Automatic
Input cable length Up to 20 ft
Output cable length Up to 20 ft
USB
Input interface (TX) (1) USB Type B (Female)
Output interface (RX) (2) USB Type A (Female)
Signal Type OHCI/VHCI (USB 1.1)
RS-232
Input Interface (TX) (2) DB9 (Female)
Output Interface (RX) (2) DB9 (Female)
Speed @ 115 Kbps
IR
Input Interface (TX) (1) 3.5 mm (Female)
Output Interface (RX) (1) 3.5 mm (Female)
Frequency Response 30KHz to 80KHz
OTHER
Power External 100-240 VAC/5VDC4A
Dimensions 5.125 in W x 1 in H x 3.625 in D
Weight 1 lb (.5 lbs per unit)
Operating Temp. 0-55 °C (32-131°F)
Storage Temp. -20-85 °C (-4-185 °F)
Humidity Up to 95%
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
Dual DVI-D, USB 1.1,
LDX-2P-TX 1 Dual RS232, Audio over
CAT5/5e/6 Transmitter
Dual DVI-D, USB 1.1,
LDX-2P-RX 1 Dual RS232, Audio over
CAT5/5e/6 Receiver
PS5VDC4A 2 PS5VD4A Power Supply
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
800.AVI.2131, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com
LDX-2P
Dual Head DVI-D, USB
Keyboard, Mouse
and Audio Extender
EXTEND DUAL DVI-D,
DUAL RS-232, USB AND AUDIO
UP TO 245 FEET OVER TWO
CAT5E/6 CABLES
Quick Start Guide
