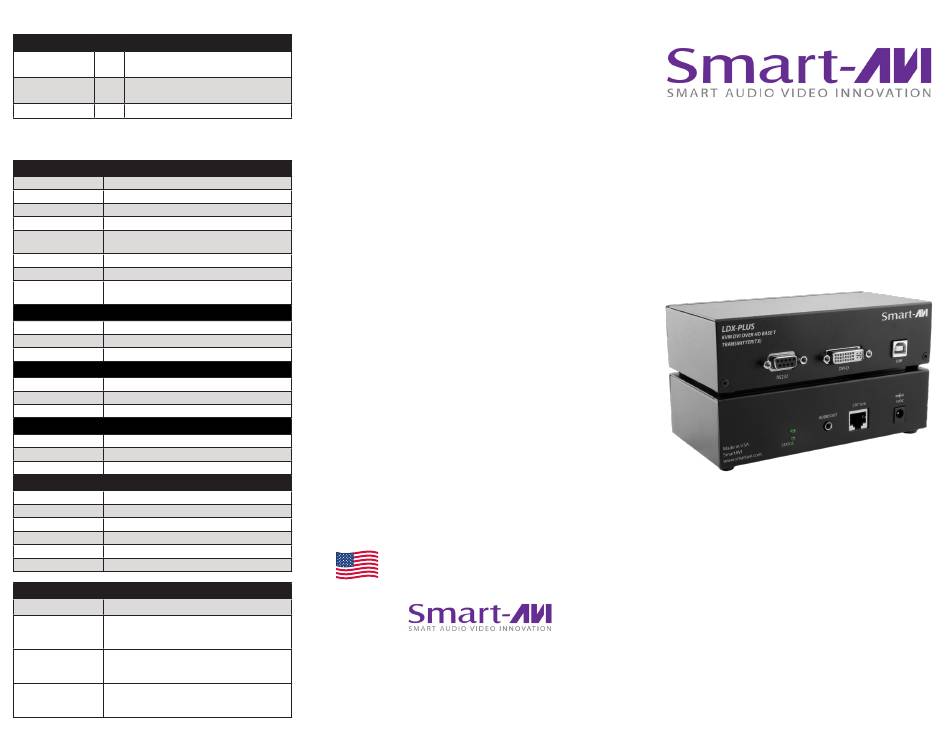

SMART-AVI LDX-PLUS Quick Start Manual

What's in the Box?
PART NO. QTY DESCRIPTION
LDX-PLUS-TX 1 DVI-D , USB 1.1 , RS232, and Audio
over CAT5/5e/6 Transmitter
LDX-PLUS-RX 1 DVI-D , USB 1.1 , RS232, and Audio
over CAT5/5e/6 Receiver
Power Supply 2 PS5VD4A
Technical Specifications
VIDEO
Format DVI-D Single-link
Max. Pixel Clock 165 MHz
Input Interface (TX) (1) DVI-D 29-pin female
Output Interface (RX) (1) DVI-D 29-pin female
Resolution Up to 1920 x 1200 @ 60 Hz
Up to 3840 x 2160 @ 30 Hz
DDC 5 volts p-p (TTL)
Input Equalization Automatic
Input/Output Cable Up to 20 ft
Length
USB
Signal Type OHCI/UHCI (USB1.1)
Input Interface (TX) (1) USB Type-B (female)
Output Interface (RX) (2) USB Type-B (female)
RS232
Input Interface (TX) (1) DB9 (female)
Output Interface (RX) (1) DB9 (female)
Speed @ 115 Kbps
AUDIO
Input Interface (TX) (1) 3.5 mm jack socket
Output Interface (RX) (1) 3.5 mm jack socket
Frequency Response 30 KHz to 80 KHz
OTHER
Power Supply External 100-240 VAC/5VDC4A
Dimensions 8.25" W x 1" H x 3.625" D
Weight 1 lb
Operating Temp. 32 to 131°F (0 to 55 °C )
Storage Temp. -4 to 185°F (-20 to 85 °C )
Humidity Up to 95%
ORDER INFO
Part No. Description
LDX-PLUS-S DVI-D + USB + RS232 over CAT5 UTP Extender,
up to 70 meters. Includes: [LDX-PLUS-TX,
LDX-PLUS-RX, 2 x PS5VD4A-WLLMNT]
LDX-PLUS-TX DVI-D , USB 1.1 , RS232, and Audio over
CAT5/5e/6 Transmitter. Includes: [LDX-PLUS-TX,
PS5VD4A-WLLMNT]
LDX-PLUS-RX DVI-D , USB 1.1 , RS232, and Audio over
CAT5/5e/6 Receiver. Includes: [LDX-PLUS-RX,
PS5VD4A-WLLMNT]
© Copyright 2017 SmartAVI, All Rights Reserved
T h e i n f o r m a t i o n c o n t a i n e d i n t h i s d o c u m e n t
is subject to change without notice. Smart-AVI makes
no warranty of any kind with regard to this material,
*
including but not limited to, implied warranties of
merchantability and fitness for any particular purpose.
Smart-AVI will not be liable for errors contained herein or for
incidental or consequential damages in connection with the
furnishing, performance or use of this material.
No part of this document may be photocopied, reproduced or
translated into another language without prior written consent
from Smart-AVI.
For more information, visit www.smartavi.com.
Designed and Manufactured in the USA
SmartAVI, Inc. / Twitter: @smartavi
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
http://www.SmartAVI.com
NOTICE

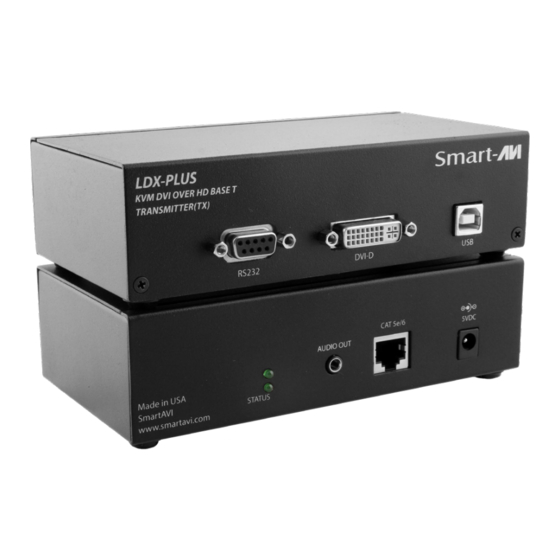

LDX-PLUS
DVI, KVM and Audio Extender
Over CAT5e/6 HDBaseT (245 ft)
Long-range HD DVI-D Video,
USB keyboard-Mouse, RS232
and Audio Extender
Quick Start Guide
