- Page 1 Long Range DVI-D and RS-232 Extender USER MANUAL DVI-D and RS-232 Extender 1-800-284-2131 www.smartavi.com Long Range DVI-D and RS-232 Extender...
- Page 2 Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3 WHAT’S IN THE BOX?_____________________________________________________________________ 4 FRONT AND REAR________________________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5 APPLICATION DIAGRAM__________________________________________________________________ 5 SYSTEM OPERATION______________________________________________________________________ 6 TROUBLESHOOTING______________________________________________________________________ 6 TECHNICAL SUPPORT_____________________________________________________________________ 6 LIMITED WARRANTY STATEMENT________________________________________________________ 7 Long Range DVI-D and RS-232 Extender...
- Page 3 Technical Specifications VIDEO Format DVI-D Single Line Maximum Pixel Clock 165 MHz Input Interface (TX) (1) DVI-D 29-pin female Output Interface (RX) (1) DVI-D 29-pin female Resolution Up to 1920 x 1200 @ 60 Hz 5 volts p-p (TTL) Input DDC Signal Automatic Input Cable Length Up to 20 ft...

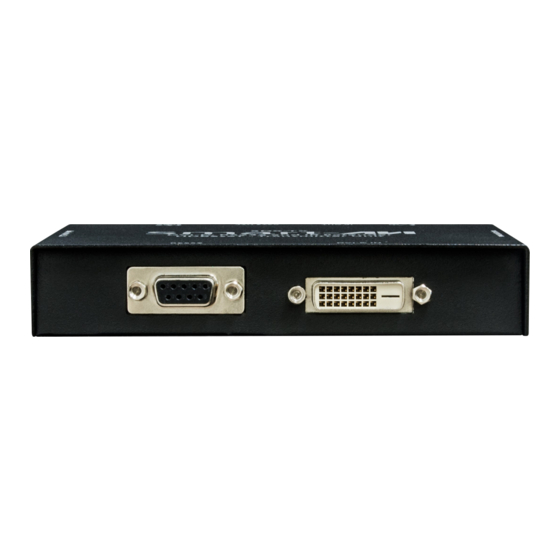

- Page 4 What’s in the box? DVI-D and RS-232 Extender PS5VDC2A-WLLMNT 5V DC, 2A (minimum) power adapter with center-pin positive polarity. User Manual LDX Transmitter rear LDX transmitter front LDX receiver rear LDX receiver front Long Range DVI-D and RS-232 Extender...
- Page 5 Application diagram Using HDBaseT technology, the LDX DVI extender is capable of sending a DVI-D signal up to 245 ft over a single conventional and inexpensive Cat5e/6 cable. HDBaseT technology is superior to older DVI extenders that require a special Cat6 shielded cable to go a short distance.
- Page 6 Troubleshooting No Power Make sure that the power adapter is securely connected to the power connector of the unit. Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. Replace the power supply. No Video ...
- Page 7 Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer.
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
