Reliable GL 112 Quick Start Manual

Quick Response Sprinklers

(SIN R3226)Upright
(SIN R3216) Pendent

Features

The Reliable Model GL 112 QR sprinkler offers
the opportunity for:
1. Compliance with FM requirements for QR
Sprinklers to be used in Racks. The GL 112
Upright uses the D-7 guard/shield. The GL
112 Pendent can be used with the D-8 guard
or the D-9 guard/shield. See Bulletin 208.
2. Also for use as a ceiling sprinkler per FM
Data Sheets 8-9.
3. Pipe size reduction.
4. Increasing densities with existing systems.
5. Intended for use as a "Quick Response"
storage sprinkler in hydraulic designed sys-
tems with a minimum pressure of 7 psi (0.5
bar) in accordance with the area density
curves of NFPA 13 applications.
6. K- Factor = 11.2 (160)
Listings & Approvals:
Approved by Factory Mutual (FM) as a storage sprinkler.

Product Description

The Reliable Model GL 112 Quick Response sprinkler uti-
lizes a levered fusible alloy solder link in 165°F (74°C), 212°F
(100°C). The sprinkler has been designed to control high
challenge fires in both palletized and rack storage occupan-
cies, utilizing relatively low water pressures. This sprinkler
is available with the standard ¾" NPT (R¾) thread for new
installation.
It has been proven in full scale fire testing, has complied
with the applicable mechanical and hydraulic sections of the
latest sprinklers standard, and has Factory Mutual Approval.
This product is intended for use as a "Quick Response"
storage sprinkler in hydraulic designed systems with a mini-
mum pressure of 7 psi (0.5 bar) in accordance with the area
density curves of NFPA 13* standards.

Design Criteria

The following criteria apply when designing an automat-
ic sprinkler system utilizing the Model GL 112 QR sprinkler
for NFPA 13* applications.
The Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model GL 112
Quick Response
Upright and Pendent
Sprinklers

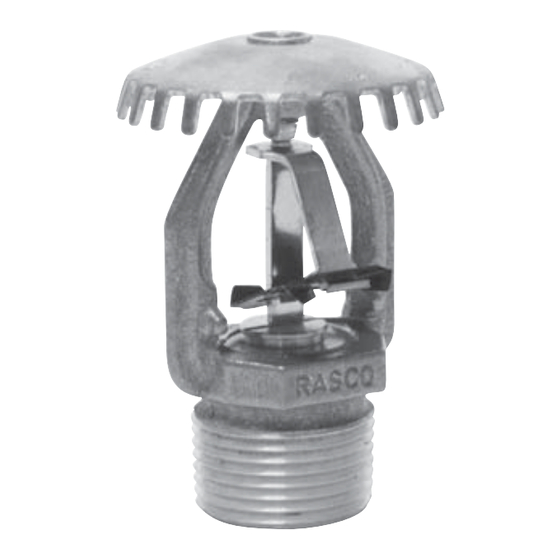

Model GL 112 QR Upright 3/4" NPT
Model GL 112 QR Pendent 3/4" NPT
• Sprinkler spacing shall be a minimum of 6 ft. (1.8m)
• Sprinkler discharge pressure for NFPA 13* standard
and all Factory Mutual (FM) applications shall be a
minimum of 7 psi (0,5 bar).
• Factory Mutual (FM) Loss Prevention Data Sheets con-
tain requirements which differ from NFPA. The Model
GL 112 is Approved by Factory Mutual for installations
governed by Data Sheets 8-9 and 2-0.
The Model GL 112 QR sprinkler is intended for standard
flow. Pressure requirements and standard placement as
specified for NFPA storage requirements. The Model GL
112 QR sprinkler is not a "Large Drop" or "ESFR" sprinkler.

Temperature Ratings

Sprinkler
Classifi cation
Rating
°F
Ordinary 165
Intermediate 212 100
* For sprinkler standards prior to 1999 edition of NFPA 13, use NFPA
standards 231, 231C, 231D & 231F.
