Reliable G5-56 Dry Instruction Manual

UL Quick Response
FM Standard Response
½" (13mm) Cover plate Adjustment
Features
1. Flat cover plate with threaded attachment.
2. Cover plate available in chrome and white as Stan-
dard Finishes.
Also available in a wide variety of Special
Application Finishes.
3. Cover plates with gaskets are available to limit
dust and air movement through the ceiling.
4. Available in Ordinary or Intermediate temperature
rating.
5. Sprinkler available in lengths from 4
(108mm) to 48 inches (1219mm) in
(6.35mm) increments (see Fig. 1).
Approvals & Listings
1. Listed by Underwriters Laboratories and Certified for
Canada (cULus) as a Quick-response sprinkler for Light
and Ordinary Hazard occupancies. UL Guide Number
VNIV, Sprinklers, Automatic and Open.
2. FM Approved as a Standard-response sprinkler.
Patents
The Model G5-56 Dry is covered by the following patents:
U.S. 5,775,431
U.S. 5,967,240
Application
The Model G5-56 Dry is a cULus Listed Quick Response
Concealed Dry Pendent sprinkler intended for use in accor-
dance with NFPA 13. The Model G5-56 Dry sprinkler is cULus
Listed for use in Light and Ordinary Hazard occupancies.
The Model G5-56 Dry is FM Approved as a Standard Re-
sponse Concealed Dry Pendent sprinkler intended for use in
accordance with FM Loss Prevention Data Sheet 2.0.
Product Description

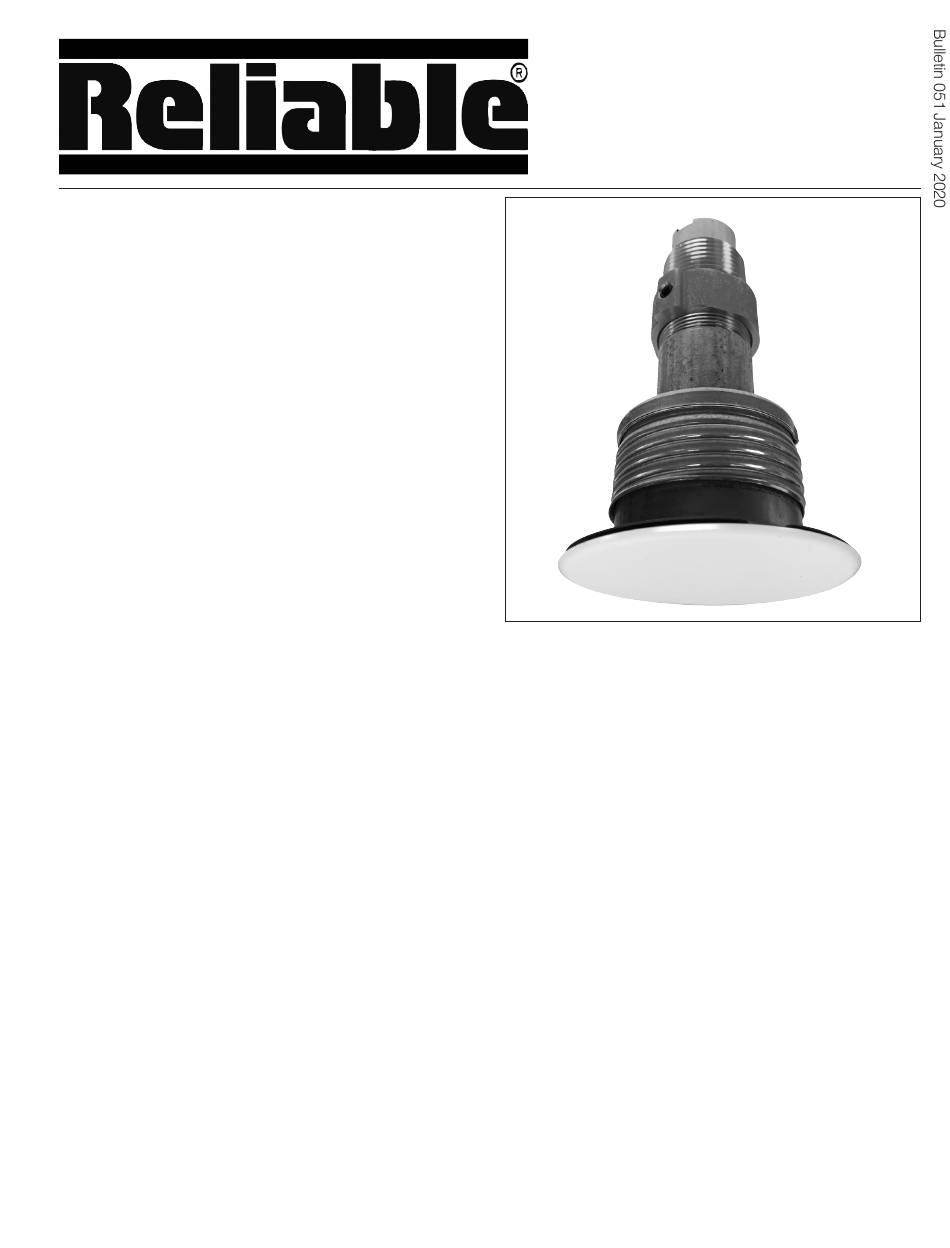

The Reliable Model G5-56 Dry sprinkler is a Dry Pendent
sprinkler, where the sealing washer is located at the inlet end
of the sprinkler assembly. The position of the sealing washer is
controlled by a fusible element at the opposite end of the sprin-
kler assembly. The sprinkler is installed with the fusible element
at the ceiling of a protected space that may be subject to freez-
ing temperatures and the inlet orifice located in a heated area
above the ceiling. Operation of the fusible element allows the
Reliable Automatic Sprinkler Co., Inc., 103 Fairview Park Drive, Elmsford, New York 10523
Model G5-56 Dry (SIN RA5114)
K5.6 (80 metric)
Concealed Dry Pendent
Sprinkler
inches
¼
inch
¼-
sealing washer to move out of the inlet orifice admitting water
from the supply piping. The sprinkler uses a fast-response fus-
ible element with an Ordinary, 165°F (74°C), or Intermediate,
212°F (100°C), temperature classification.
The Model G5-56 Dry sprinkler has a dropdown deflector
design that allows the sprinkler to be recessed into the ceiling
and concealed by a flat cover plate. The cover plate assembly
threads into the sprinkler' s cup and provides ½-inch (13mm) of
cover adjustment. The cover plate assembly consists of a flat
cover plate that is attached to the skirt using either 135°F (57°C)
or 165°F (74°C) temperature rated solder. The 135°F (57°C)
cover plates are for use with Ordinary temperature classifica-
tion sprinklers and the 165° (74°C) cover plates are for use with
Intermediate temperature classification sprinklers.
The Model G5-56 Dry sprinkler is available in lengths rang-
ing from 4¼ inches (108mm) to 48 inches (1219mm) in ¼-inch
(6.35mm) increments (see Fig. 1). The length of the sprinkler
must be selected to provide the Exposed Minimum Barrel
Length in a Heated Area required by Fig. 2.
The Model G5-56 Dry sprinkler is available with 1-inch NPT
or ISO 7-1 R1 threaded inlet fittings. The standard inlet fitting in-
cludes a long inlet designed to minimize the potential for water,
scale, and sediment to accumulate on the sprinkler inlet in wet-
and dry-pipe sprinkler systems. For wet-pipe sprinkler system
applications where the standard inlet interferes with installation
into existing plastic pipe fittings, an inlet fitting is available with a
short ("PL") inlet. See Fig. 3 for further information.
Bulletin 051 January 2020
Model G5-56 Dry Sprinkler
