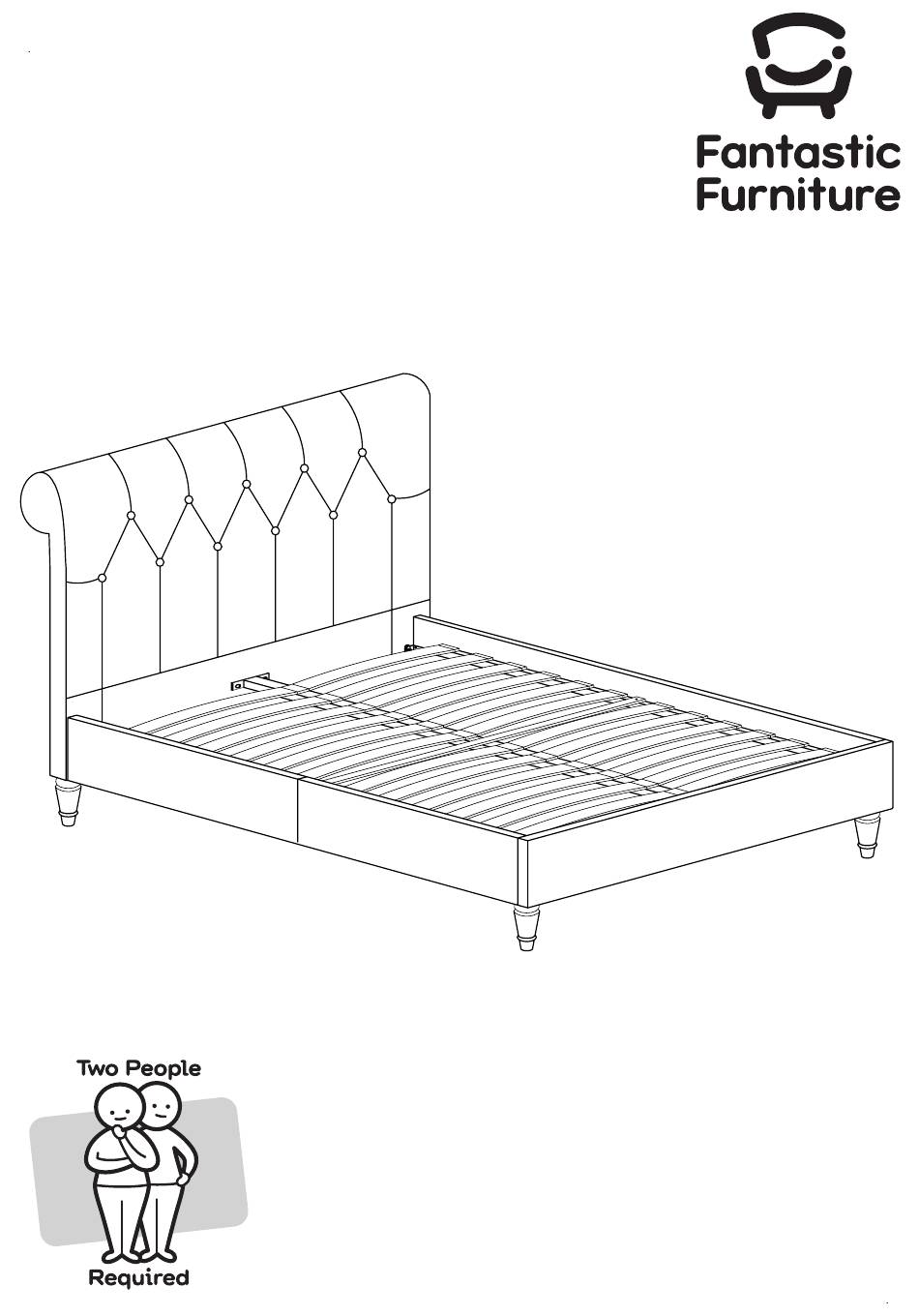

  • Page 1 Version 1.0 Chester Queen Bed fantasticfurniture.com.au...
  • Page 2 We’re thrilled you’ve chosen Fantastic Furniture to help create a home you’ll love! Love it? Share it! Fantastic buy! Share how it looks at home on Instagram for your chance to win a $250 Fantastic Furniture Gift Card! @fantasticfurniture fantasticfurniture.com.au fantasticfurniture.com.au...

  • Page 4: What You Need

    What you need to assemble the product Headboard (P1) Other tools you need: Right Side Rail (P7) Phillips head screwdriver; Headboard/Footboard Leg (P3) Timber Cross Rail (P5) Left Side Rail (P6) Footboard (P2) Centre Rail (P8) Brackets (P4) Support Leg (P9) Headboard/Footboard Support Leg (P9) Leg (P3)
  • Page 5 Step 1 (P1) (P3) (P3) Attach 2 x headboard legs (P3) to the bottom of headboard (P1) and rotate as shown. Step 2 (P4) You will need Allen Key 4 x Bolts 25mm 4 x Washers M8 (H3) (H2) (H4) (H2) (H3) (P3)
  • Page 6 Step 3 You will need Allen Key 4 x Bolts 16mm 4 x Washers M8 4 x Bolts 25mm (H1) (H4) (H2) (H3) (P6/P7) (P1) (H1) (P1) (H2) (P7) (P6/P7) (H4) (P6) (P2) (P2) (H3) (H2) Install 4 x bolts (H1) to the brackets of headboard (P1) by using allen key (H2) as shown, do not tighten the bolts and keep them 8mm loose.
  • Page 7 Step 5 You will need Allen Key 4 x Bolts 20mm 4 x Washers M8 4 x Spring Washer (H2) (H3) (H4) (H7) (H4) (H7) (H3) (H2) (P8) (P1) (P7) (P8) (P6) (P2) Adjust to be 10mm gap from floor to the bottom of support legs.
  • Page 8 Insert the full slat into the side rail and centre rail one by one. Sometimes it makes it easier to line up the hole if you press down in the middle of the slat to flatten it out. Repeat for every bed slat until finished. fantasticfurniture.com.au Page 8...
  • Page 9 Step 7 You will need Allen Key 2 x Screws 32mm (H2) (H5) Phillips head Felt Pad Screwdriver 1 x 40 x 20mm (not provided) (H6) (H5) (H2) (P1) (P5) (P7) Make sure screws are fully tightened. (P6) (P2) (P5) (H6) (P8) Make sure the inner space is square.

  • Page 10: Job Complete

    Step 8 Job complete! In the interest of our environment please dispose of all packaging thoughtfully. fantasticfurniture.com.au Page 10...
