  • Page 2: Table Of Contents

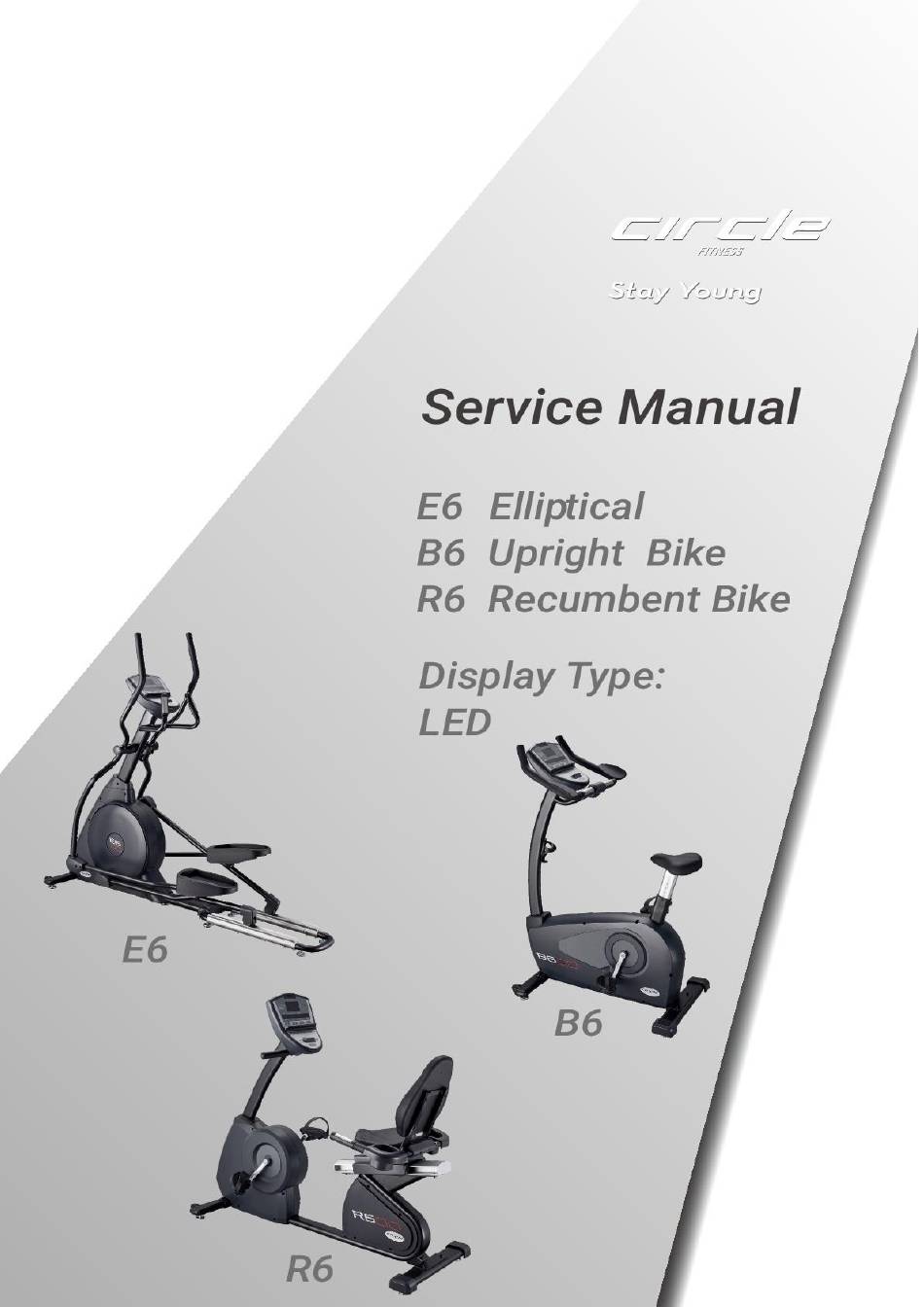

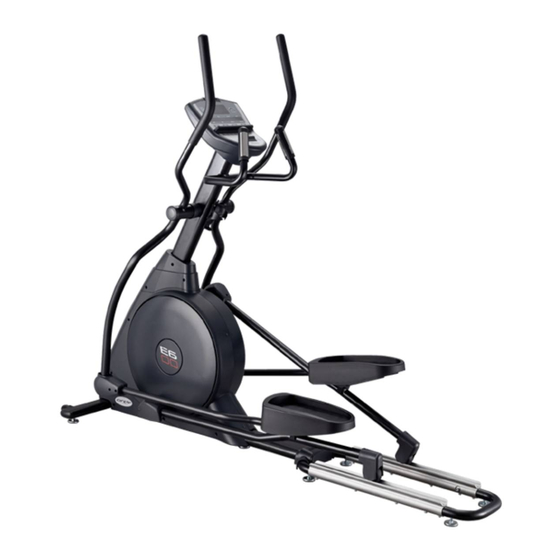

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 2 of 13 Table of Contents 1. Information For Components & System 1.1. System wiring diagram ----- Page 3 1.2. Generator Controller ----- Page 4 1.3. Console PCB ----- Page 5~6 2.

  • Page 3: Information For Components & System

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 3 of 13 1. Information For Components & System 1.1. System wiring diagram Hand pulse g rip...

  • Page 4: Generator Controller

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 4 of 13 1.2. Generator Controller 12V/1.2A Battery External adaptor Generator (JK1) Console wire (JK2) Motor (JK4) Speed sensor (JK3) EEPROM JK4 Motor JK2 Console wire DOUT JK5 External ADAPTOR...

  • Page 5: Console Pcb

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 5 of 13 1.3. Console PCB Wireless receiver (JK2) Hand pulse Console wire (JK1) Main membrane key Lever (JK9) (JK7) Membrane key of display switch (JK6) JK1 Console wire...
  • Page 6 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 6 of 13 JK7 Main membrane key TARGET ENTER ROLLING RESET FITNESS TEST VALLEY RANDOM START FAT BURN INTERVAL...

  • Page 7: Error Signal Check And Solutions

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 7 of 13 2. Error Signal Check And Solutions 2.1. 【EEPROM ERROR】: EEPROM read or write error, replace console PCB. 2.2. 【MOTOR ERROR 】: Motor abnormal, cannot reach to the request position.

  • Page 8: Motor Error

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 8 of 13 Start paddling Does it show Motor Error? Adjust resistance jam while operating, assemble the pull steel rope to check where the jam is. Does pull motor moved before show...

  • Page 9: Other Information

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 9 of 13 3. Other Information 3.1. Console no power, no any display Disassemble the To disconnect console wires. console. Start paddling To measure the console wire power pins shall be have DC12~13V.
  • Page 10 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 10 of 13 Start paddling Short then open the sensor terminal over and over by metal parts while paddling..Short circuit Short circuit Short circuit Does console get power? Replace speed sensor.

  • Page 11: Console No Power Right Away After Stop Exercise

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 11 of 13 3.2. Console no power right away after stop exercise: Start paddling Console normal Stop paddling STOP Console lose power Charge the battery with the external adaptor.

  • Page 12: Engineering Mode

    Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 12 of 13 4. Engineering Mode 4.1. Engineering mode 1: Factory settings press『UP』and hold then press『ENTER』to enter the mode while in idle mode, dot-matrix window show 【WELCOME】 , message window show 【EPBR 6000】 , will get into the setting after 3 seconds.
  • Page 13 Document: Service Manual Description: Elliptical/Upright Bike/ Recumbent Bike Model: E6/B6/R6, Page: 13 of 13 4.2. Engineering mode 2: Used information press『DOWN』and hold then press『ENTER』to enter the mode. 4.2.1. Total used distance: Dot-matrix window shows 【ODO】 , DISTANCE window shows value, press『ENTER』to next setting.
