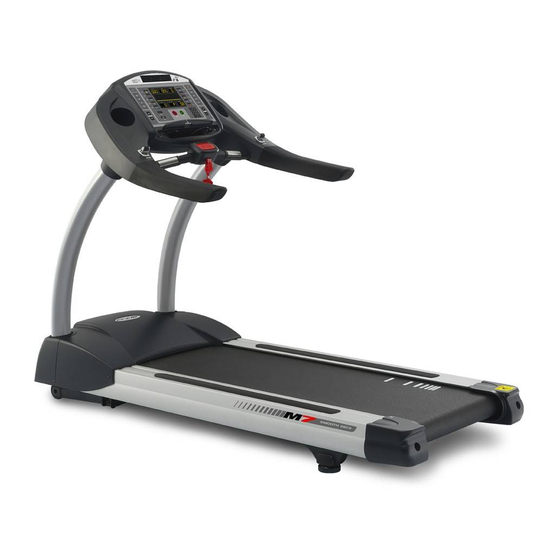

CIRCLE FITNESS M7 Service Manual
  1. Manuals
  2. Brands
  3. CIRCLE FITNESS Manuals
  4. Treadmill
  5. M7
  6. Service manual

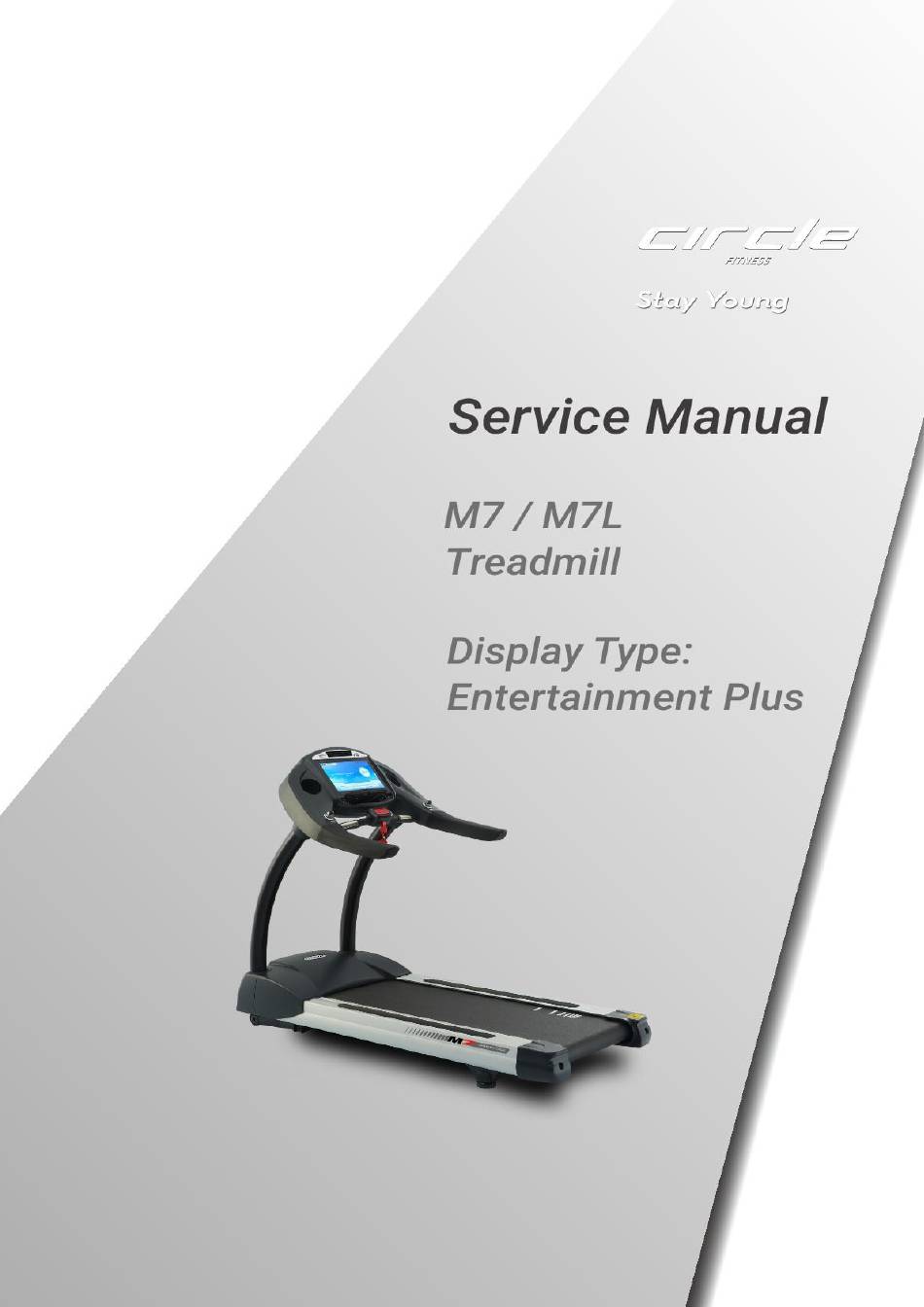

CIRCLE FITNESS M7 Service Manual

Hide thumbs Also See for M7:
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M7 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CIRCLE FITNESS M7

Summary of Contents for CIRCLE FITNESS M7

  • Page 2: Table Of Contents

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 2 of 31 Table of Contents 1. Engineering Mode: How to entry -------------- Page 3 1.1. Wi-Fi Settings ---------------- Page 3 1.2. Ethernet: Reserved ---------------- Page 4 1.3. TV Settings-CVBS 1.3.1 Scan Channel-Europe Tuner (Pal / DVB-T)

  • Page 3: Wi-Fi Settings

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 3 of 31 1. Engineering Mode: Press center of logo for 5 seconds to get in. Wi-Fi settings: 1.1. Re-searching ON/OFF Wi-Fi Useable Wi-Fi Select a useable Wi-Fi and enter...

  • Page 4: Ethernet: Reserved

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 4 of 31 1.2. Ethernet: Reserved for further use. 1.3. TV settings: CVBS 1.3.1. Scan Channel-Europe Tuner(Pal / DVB-T) Press Ch↑ or Ch↓ select Auto Tuning then press OK.
  • Page 5 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 5 of 31 1.4. Preference Unit select Set Minimum speed. Setting range: 0.2~1.0 kph / 0.1~0.6mph Set Maximum speed. Setting range: 16.0~25.0 kph / 10.0~15.6mph Set Maximum incline level.

  • Page 6: System

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 6 of 31 1.6. System State: Total Distance: Total used distance Total Time: Total used Time Ave. Speed: Average Speed Calibration: (parameter settings) Speed/HZ: Speed parameter, high value, and higher speed to each speed point.

  • Page 7: Testing

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 7 of 31 1.8. Testing: Control system output test and input information. OFF: Stop motor. ON: Run motor. Motor (output) Hz Setting Range: 4~180HZ Incline AD: Incline position Setting Range: 100~1000...
  • Page 8 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 8 of 31 1.9 Upgrade 1.9.1 Upgrade the app (Software update) Step 1: Insert the USB device (shall be new software inside. e.g.: Treadmill–20150126170001- signed.apk) to external USB port of machine.

  • Page 9: Update Bookmarks (Update Website Link)

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 9 of 31 1.9.2. Update Bookmarks (update internet website icon and address) Step 1: To create a document, name it “bookmark”. Step 2: Put website icon to bookmark document, the icon specification shall be 152X152, PNG...
  • Page 10 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 10 of 31 Step 3: Create a new note or Notepad file. Follow the following instructions to type the website information. Website name Icon file name Website address Use a comma to create another link.
  • Page 11 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 11 of 31 Step 4: save the link information file to a UTF-8 format and change file name to bookmark, change vice file name to Jason then put it to bookmark document.
  • Page 12 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 12 of 31 Step 5: Put bookmark document to USB device; insert the USB device to external USB Port of Machine. Step 6: Enter to Engineering Mode – Update page, press Update key of Bookmarks, will show...

  • Page 13: Update Video Data (Update Virtual Connect)

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 13 of 31 1.9.3 Update video data (update Virtual Connect information, it is not update for video film, only update for film illustration and interactive scenario.) Step 1: Create a new note or WordPad file. Typing the virtual connect information according to the rules as below.
  • Page 14 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 14 of 31 Step 2: Save the link information file to a UTF-8 format and change file name to video, change vice file name to Jason then put it to USB root content. Insert USB device to external USB port of machine.
  • Page 15 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 15 of 31 Step 3: Enter to Engineering Mode – Update page, press Update key of video.json, will show update finished after update.

  • Page 16: Replace Logo (Replace Logo)

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 16 of 31 1.9.4 Replace Logo Step 1: Logo icon size shall be under 330X80 with png format, change icon name to logo then put into USB device root content. Insert USB device to external USB port of machine.
  • Page 17 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 17 of 31 Step 2: There will be have 2 logos shown at engineering mode-Update page, one is current logo, another is new logo in USB device, press Update key that next to New Logo to replace the logo. Press Configuration to exit engineering mode to main page to check the logo.

  • Page 18: About (Machine Information)

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 18 of 31 1.10 About (Machine information) Machine Type: Treadmill or Bike or Elliptical depend on what software you installed. Model: need to insert manually in Advanced Page. Serial Number: need to insert manually in Advanced Page.
  • Page 19 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 19 of 31 1.11 Advanced: ○ Password: 1234 ○ Machine Type: Treadmill or Bike or Elliptical depend on what software you installed. Model: Enter model by numeric keypad Serial Number: Enter serial number by numeric keypad (Do not change if not necessary.)

  • Page 20: Firmware Update

    Page: 20 of 31 2. Firmware Update: 2.1. Update Notices: 2.1.1. Please Confirm Firmware Version in powering-on page is the Android or CIRCLE FITNESS. 2.1.2. Firmware Update shall be use the right version to update, e.g.: if firmware version is 12 01 2014, want to update to Feb 11 2015, shall be use update_141201_150211_native.zip (Android version) or...
  • Page 21 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 21 of 31 2.2. How to update: copy update file update.zip to USB device, insert USB device to external USB port of machine, system will auto update and reboot.

  • Page 22: Trouble Shooting

    Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 22 of 31 3. Trouble Shooting 3.1. Error Code: 3.1.1. Error Code: 01–Low Voltage during work. Description: Input voltage is too low during workout (DC Bus lower than 150V),220V system lower than 115Vac, 110V system lower than 70Vac.
  • Page 23 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 23 of 31 3.1.2. Error Code: 02–Temperature Sensor Abnormal Description: Motor Controller internal sensor is abnormal. Analysis and Solutions: Replace motor driver.
  • Page 24 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 24 of 31 3.1.3. Error Code: 04–Output Over Current Description: Motor controller output current is overload, over than ratingX200 ( M-7 rating 9.6A / M-8 rating 13A) Analysis and Solutions: 1.
  • Page 25 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 25 of 31 3.1.4. Error Code: 06 –Input Over Voltage Description: input AC voltage is too high Analysis and Solutions: 1. Input voltage abnormal: please confirm input voltage shall be under 250 Vac normally.
  • Page 26 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 26 of 31 3.1.6. Error Code: 09–Over Heat Description: Motor controller is over heat. Analysis and Solutions: Running belt/deck is worn and torn so motor controller output current is overload, running belt or...
  • Page 27 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 27 of 31 3.1.7. Error Code: 0A–Motor Overload Description: Motor controller is overload over rating X110 for few minutes(M-7 rating 9.6A / M-8 rating 13A) Analysis and Solutions: Running belt/deck is worn and torn so motor controller output current is overload, running belt or...
  • Page 28 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 28 of 31 3.1.8. Error Code: 0B – Inverter Overload Description: Motor controller overload over ratingX150 for few minutes(M-7 rating 9.6A / M-8 rating 13A) Analysis and Solutions: Running belt/deck is worn and torn so motor controller output current overload, running belt or deck...
  • Page 29 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 29 of 31 3.1.9. Error Code: 0E –Dynamic Brake Abnormal Description: Power eliminate resistor is abnormal. Analysis and Solutions: Replace motor controller. 3.1.10. Error Code: 21 – Inverter Flash Abnormal Description: Flash device of the motor controller is abnormal.
  • Page 30 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 30 of 31 3.1.11. Error Code: 22 –Inverter Flash Abnormal Description: EEPROM of the motor controller is abnormal. Analysis and Solutions: Replace motor controller. 3.1.12. Error Code: 25 – Emergency Circuit Error Description: Emergency stop event occur from motor controller.
  • Page 31 Document: Service Manual Description: Treadmill Model: M7/ M7L E Plus Page: 31 of 31 3.1.13. Error Code: FE – Incline Description: Incline level cannot reach the preset position. Analysis and Solutions: Input AC voltage is too low: input AC voltage shall be at rating±20％,please check power input.
