Summary of Contents for US Steam SteamHERO

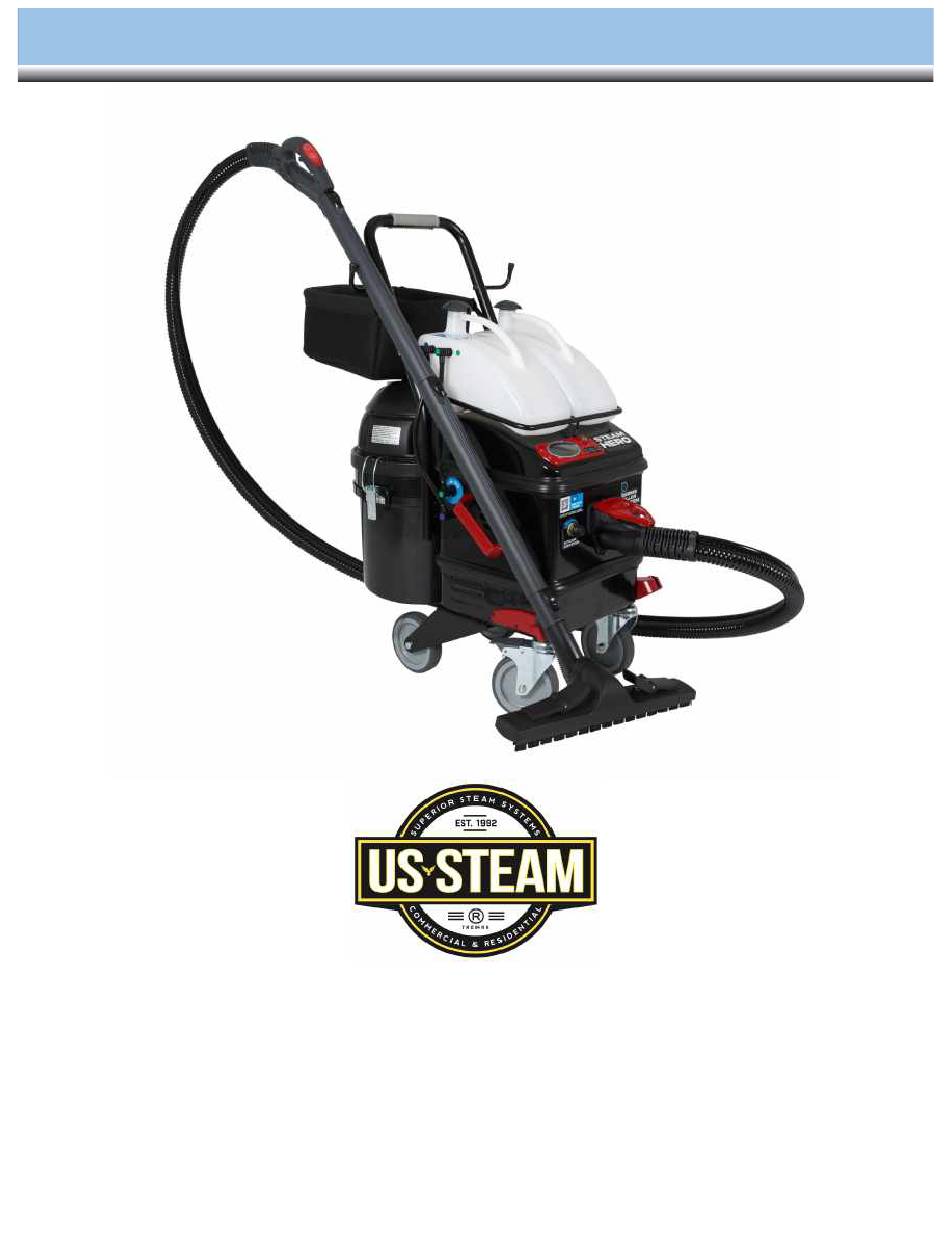

- Page 1 SteamHERO US STEAM® Corporate Office 2440 Chambers Street, Suite A Mansfield, TX 76084 (817) 297-7745...
- Page 2 SteamHERO Steam Fill Tank Extraction /Detergent Fill Tank Power ON/OFF Steam Pressure Control Knob Hose Connection ON/OFF VACUUM EXTRACTION Trigger Lock Steam Trigger Extraction Vacuum...
-
Page 3: Table Of Contents
Table of Contents Assembly _____________________________________________________________ Quick Start ____________________________________________________________ Steam ______________________________________________________________ Extraction ___________________________________________________________ Vacuum ____________________________________________________________ Indicators / Warnings _____________________________________________________ Trouble Shooting ________________________________________________________ Error Codes ____________________________________________________________ Maintenance ___________________________________________________________ Descaling ______________________________________________________________ Accessories ____________________________________________________________ Specifications ___________________________________________________________ Notices _______________________________________________________________ Warranty & Repair ______________________________________________________ Ø DO NOT leave the steam cleaner unattended while plugged in. Ø... -
Page 4: Assembly
3) Remove 4 screws from 1) Remove Handle Assembly from motor and remove back of the SteamHero from shipping box tank and motor 4) Attach handle and re-insert 4 5) Re-attach collection tank screws (hand tighten only) into back of the SteamHERO... - Page 5 9) Remove allen head bolts 10) Insert reservoir bar holder 11) Tighten using allen wrench from handle and replace allen head bolts 12) Attach tank hoses to side of SteamHERO Line up colored hoses with color indicated hole on the reservoir tanks...
-
Page 6: Quick Start
2) Plug into Electrical Outlet 2) Insert the hose into the Ø The SteamHERO should be the connection port only appliance plugged into the Ø Push until you hear a “click”... -
Page 7: Extraction
Quick Start Hot Water Injection / Extraction Vacuum ON/OFF Activate the VACUUM: Your SteamHero has the ability to Ø Pushing the button on the add water to the steam. console OR Ø Pushing the button on the This function is valuable when hose handle. -
Page 8: Indicators / Warnings
De-scale Warning (see instructions page 11 Low Water Indicator The SteamHero will let you know when it is low on water. It will stop producing steam you will hear a beep, and the Low Water Symbol will flash indicating one or both of the reservoir tanks are empty. -
Page 9: Trouble Shooting
The SteamHERO powers ON after This is normal: plugging into the electrical outlet and Ø Push the ON/OFF Button on the console to power ON the SteamHERO then turns OFF The SteamHero should be the ONLY appliance plugged into the electrical... -
Page 10: Maintenance
Ø Descale the boiler (instructions on page 11) Ø Check and replace vacuum filter as needed Once per Year Ø Check O-rings on hose and extension wands for wear or damage Ø Replace O-rings if needed (you received an O-ring kit with your SteamHERO... -
Page 11: De-Scaling
CLEAN WARNING: The SteamHERO MUST be cool and at room temperature before descaling. 1) Identify drain cap on bottom of SteamHERO 2) Turn the cap counter-clockwise... -
Page 12: Accessories
Accessories (order @ www.ussteam.net) Extension Wands Floor Brush (Set of 2) Part # SV5672 Part # SV1594 Hose Part # SV4896 Small Extraction Nozzle Large Extraction Nozzle Part # SV7314 Part # SV8011 1-Hole Nozzle 3-Hole Nozzle Part # SV4890 Part # SV4891 Part # SV5624 Part # SV5645... -
Page 13: Specifications
Specifications POWER SUPPLY 120 V. 60Hz READY TIME 10 MINUTES BOILER REFILL SYSTEM AUTOMATIC REFILL STEAM FLOW ADJUSTMENT TURN DIAL CONTROLER PRESSURE 10 BAR / 145 PSI MAX TEMPERATURE 356 °F BOILER VOLUME 1/2 GALLON BOILER MATERIAL AISI 304 WATER TANK CAPACITY 1 GALLON –... -
Page 14: Notices
Ø Any alteration of electrical cord supply on this steam cleaner will void all warranties. Ø To lesson the possibility of tripped breakers, remove other appliances from the circuit being utilized by the SteamHERO. The combined electrical amperage of other equipment and the steam cleaner together may cause a circuit breaker to trip. -
Page 15: Warranty & Repair
ATTN: Repairs WARRANTY Your steamer comes with a warranty which becomes effective on the date of purchase from US STEAM and is granted to the initial customer and is nontransferable. Any claims under this warranty must be made before the end of the applicable warranty period. - Page 16 Floors, Kitchen, Grills & Bathrooms Restaurants Chemical free cleaning in all food prep and storage areas. A Better Way to clean floors and bathrooms. Patient Beds, Chairs & Hospital Curtains Hospitals Steam is a proven killer of virus and infection causing germs. Steam can sanitize areas too difficult to treat with chemicals.
