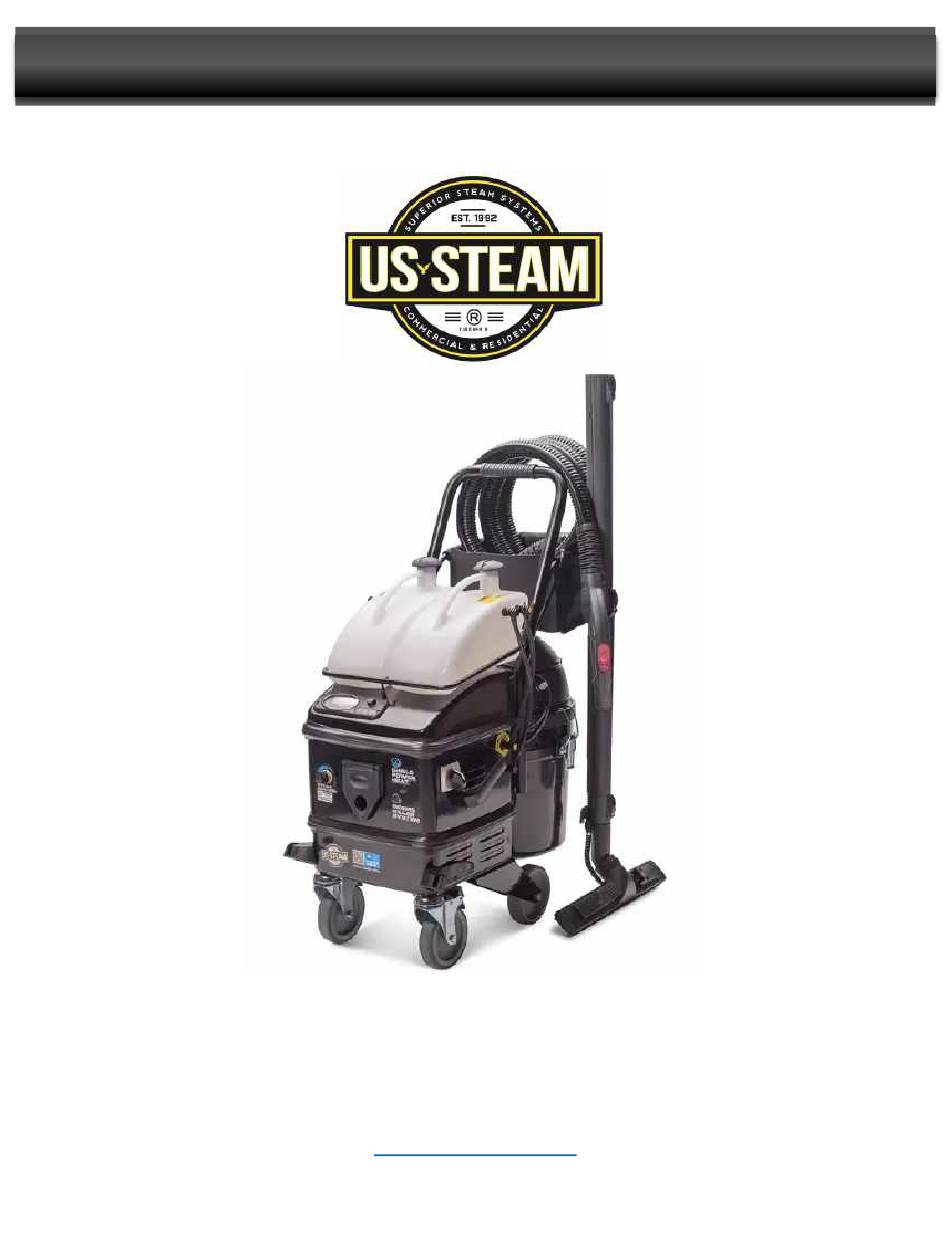

- Page 1 EAGLE PLUS™ STEAM VACUUM US STEAM® 2440 Chamber Street, Ste A Venus, TX 76083 www.ussteam.net (817) 297-7745...
- Page 2 EAGLE PLUS™ STEAM VACUUM EAGLE PLUS™ STEAM VACUUM Steam Fill Tank Extraction /Detergent Power ON/OFF Fill Tank Console Steam Pressure Control Knob ON/OFF VACUUM EXTRACTION Hose Connection Master Power Switch Trigger Lock Steam Trigger Extraction Vacuum...
-
Page 3: Table Of Contents
EAGLE PLUS™ STEAM VACUUM Assembly _______________________________________________________________ Quick Start _____________________________________________________________ Troubleshooting ________________________________________________________ Extraction _______________________________________________________________ Accessories _____________________________________________________________ Indicators / Warnings ______________________________________________________ Maintenance ____________________________________________________________ De-scaling ______________________________________________________________ Specifications ____________________________________________________________ Notices ________________________________________________________________ Warranty & Repair _______________________________________________________ Ø D0 NOT leave the steam cleaner unattended while plugged in Ø... -
Page 4: Assembly
EAGLE PLUS™ STEAM VACUUM Assembly 10 mm (4 each) (2 each) (2 each) (Included) (Included) 2) Un-latch collection tank 1) Remove Handle Assembly 3) Remove 4 screws from from motor and remove from shipping box back. tank and motor 4) Attach handle and re-insert 4 5) Re-attach collection tank screws (hand tighten only). - Page 5 EAGLE PLUS™ STEAM VACUUM 8) Tighten until snug 7) Using 10mm wrench attach hex 6) Attach brackets head bolt to bracket 11) Tighten using allen wrench 10) Insert reservoir bar holder 9) Remove allen head bolts and replace allen head bolts...
-
Page 6: Quick Start
4) Insert the hose 2) Plug into Electrical Outlet Ø Push until you hear a “click” Ø The EAGLE PLUS™ should be the only appliance plugged into the electrical outlet Extension Cord Ø Use only a 12-gauge / 15AMP... -
Page 7: Extraction
EAGLE PLUS™ STEAM VACUUM Vacuum Extraction Hot Water Injection / Extraction ON/OFF The Extraction function will Activate the VACUUM: inject water into the steam. Ø Pushing the button on the console OR This function is valuable when Ø Pushing the... - Page 8 EAGLE PLUS™ STEAM VACUUM PROBLEM SOLUTION Check the Master Power Switch on the side of the EAGLE PLUS™. Does not turn on when the power The EAGLE PLUS™ should be the ONLY appliance plugged into the button is pushed electrical outlet: Ø...
- Page 9 EAGLE PLUS™ STEAM VACUUM The EAGLE PLUS™ uses a separate reservoir tank to inject water into the steam when released from the extraction nozzle. Use the extraction function in combination with the vacuum for deeper cleaning of soft and hard surfaces.
-
Page 10: Accessories
EAGLE PLUS™ STEAM VACUUM Accessories Extension Wands – Set of 2 (Part # SV1594) Floor Brush (# SV5672) Floor Brush Adaptor (SV#1835) Hose Squeegee Insert (SV#1530) (Part # SV7778) Squeegee Insert Squeegee / Brush Insert (SV7326) (SV#8015) Squeegee / Brush Insert... - Page 11 SH. Low Water Indicator The EAGLE PLUS™ will let you know when it is low on water. It will stop producing steam you will hear a beep, and the Low Water Symbol will flash indicating one or both of the reservoir tanks are empty.
- Page 12 Service/Maintenance Part 1 Hot water module descaling...
-
Page 13: 2. Descaling
3. Rinsing Rinse Pour 1 liter of tap water into the tank washing 1) Turn off the EAGLE PLUS™. Mescolare 0,2 litri di essenza di aceto e 0,3 litri extraction. Connect the appliance to the mains 2) Empty the reservoir tank and fill with di acqua di rubinetto in una caraffa dosatrice. - Page 14 Service/Maintenance Part 2 Boiler descaling...
- Page 15 Descaling Procedure aling 1. Preparation WARNING: The EAGLE PLUS™ MUST be cool and at room temperature before descaling. Warning: Before starting, disconnect from the main power by pulling out oft he 1) Identify drain cap on bottom of EAGLE PLUS™.
- Page 16 EAGLE PLUS™ STEAM VACUUM Boiler descaling / step 1 Rinse Procedure 1. Preparation 1) Remove cap and drain boiler completely. Warning: Before starting, disconnect from the main power by pulling out oft he 2) Replace drain cap and hand tighten.
- Page 17 Service/Maintenance Part 3 Accessories and O-ring...
- Page 18 EAGLE PLUS™ STEAM VACUUM Your EAGLE PLUS™ will require minimal maintenance, IF you use it regularly or IF you drain water from the boiler when not in use. After Each Use Ø Clean all accessories with hot soapy water Ø Clean hose Ø...
-
Page 19: Specifications
EAGLE PLUS™ STEAM VACUUM Specifications POWER SUPPLY 120 V. 60Hz READY TIME 10 MINUTES BOILER REFILL SYSTEM AUTOMATIC REFILL STEAM FLOW ADJUSTMENT TURN DIAL CONTROLER PRESSURE 10 BAR / 145 PSI MAX TEMPERATURE 356 °F BOILER VOLUME 1/2 GALLON BOILER MATERIAL... -
Page 20: Notices
EAGLE PLUS™ STEAM VACUUM Read all instructions before using this steam cleaner. Notices WARNING: STEAM GENERATED BY THE STEAM CLEANER IS EXTREMELY HOT AND WILL CAUSE INJURY IF IT COMES IN CONTACT WITH THE SKIN OR EYES. USE AS DIRECTED BY THE MANUAL AND ONLY AIM THE STEAM HANDLE AT THE CLEANING AREA. - Page 21 5. DO NOT SEND IN A REPAIR WITHOUT AN RMA. WARRANTY Your steamer comes with a warranty which becomes effective on the date of purchase from US STEAM and is granted to the initial customer and is nontransferable. Any claims under this warranty must be made before the end of the applicable warranty period.
