Summary of Contents for US Steam SteamHERO

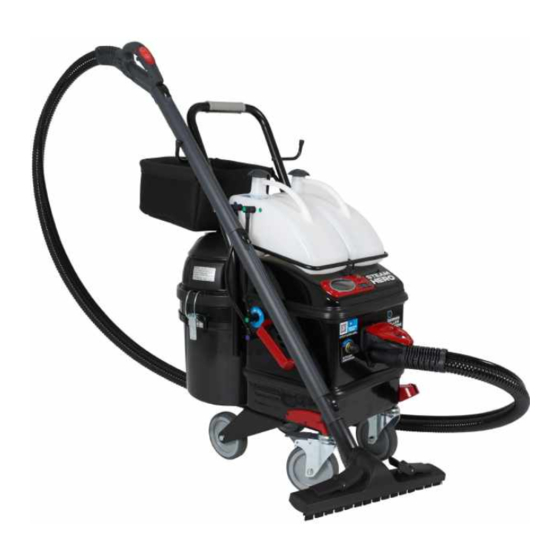

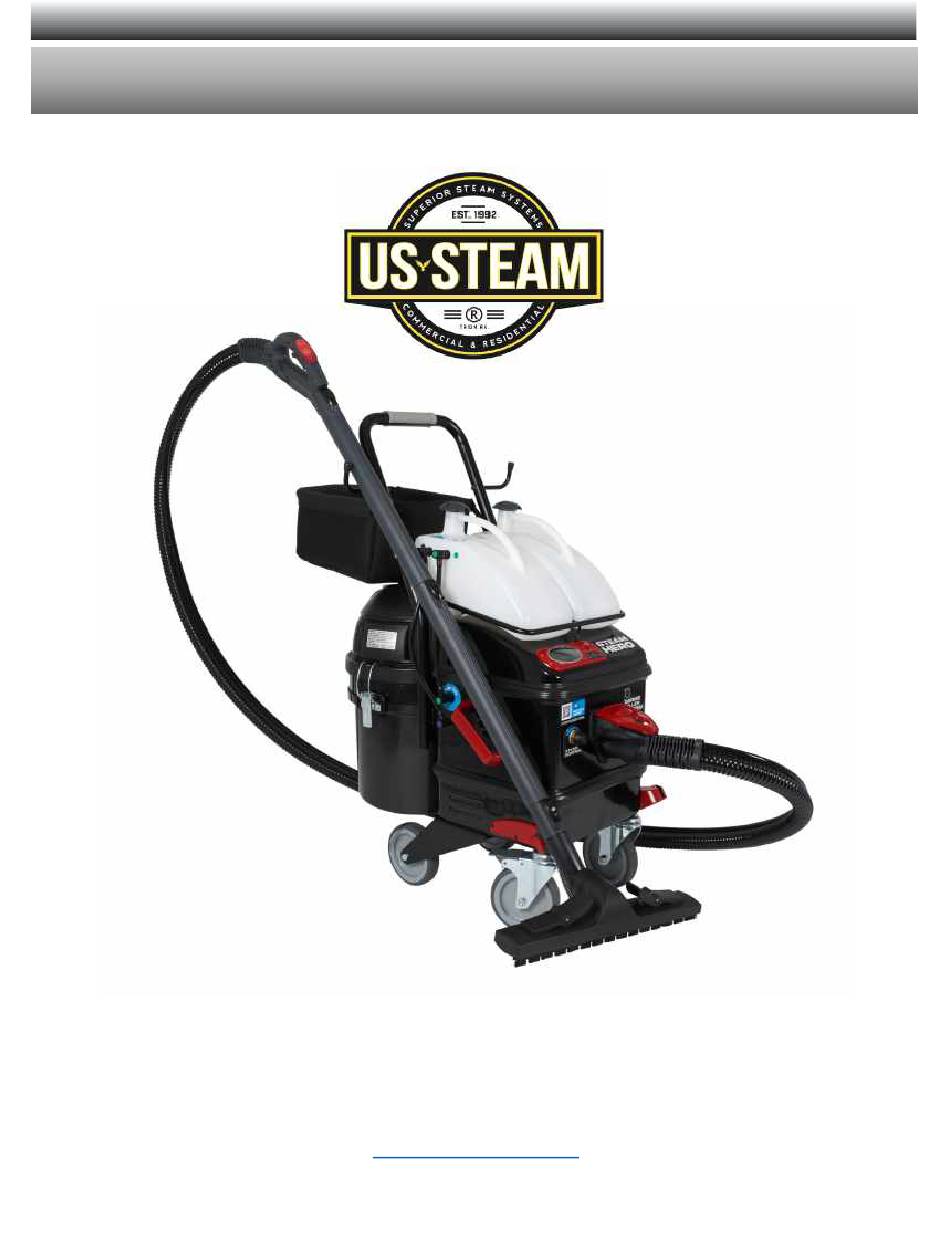

- Page 1 SteamHERO US STEAM® 2440 Chamber Street, Ste A Venus, TX 76083 www.ussteam.net (817) 297-7745...
- Page 2 Quick Start Steam Fill Tank Extraction /Detergent Power ON/OFF Fill Tank Steam Pressure Control Knob Hose Connection ON/OFF VACUUM EXTRACTION Trigger Lock Steam Trigger Extraction Vacuum...
-
Page 3: Table Of Contents
Table of Contents Assembly _______________________________________________________________ Quick Start _____________________________________________________________ Steam _______________________________________________________________ Extraction _____________________________________________________________ Vacuum ______________________________________________________________ Extraction _______________________________________________________________ Accessories _____________________________________________________________ Indicators / Warnings ______________________________________________________ Troubleshooting ________________________________________________________ Error Codes ______________________________________________________________ Maintenance ____________________________________________________________ De-scaling ______________________________________________________________ Specifications ____________________________________________________________ Notices ________________________________________________________________ Warranty & Repair _______________________________________________________ Ø D0 NOT leave the steam cleaner unattended while plugged in Ø... -
Page 4: Assembly
1) Remove Handle Assembly 3) Remove 4 screws from from motor and remove from shipping box back of the SteamHero tank and motor 4) Attach handle and re-insert 4 5) Re-attach collection tank screws (hand tighten only) into back of the SteamHERO... - Page 5 10) Insert reservoir bar holder 9) Remove allen head bolts 11) Tighten using allen wrench and replace allen head bolts from handle 12) Attach tank hoses to side of SteamHERO Line up colored hoses with color indicated hole on the reservoir tanks...
-
Page 6: Quick Start
6) Insert the hose into the 2) Plug into Electrical Outlet connection port Ø The SteamHERO should be the Ø Push until you hear a “click” only appliance plugged into the electrical outlet Extension Cord Ø... -
Page 7: Extraction
This function is valuable when Ø Pushing the button on the using the steam mop or hard to hose handle clean areas. The SteamHero Ø Increase / Decrease suction becomes an extractor when by holding the button combining this function with the on the hose handle. -
Page 8: Extraction
Extraction Your steam vacuum uses a separate reservoir tank to inject water into the steam as it’s released from the extraction nozzle. Use the extraction function in combination with the vacuum for deeper cleaning of soft and hard surfaces. Ø Use the extraction nozzle for cleaning furniture, curtains, mattress, windows, walls, and floors. -
Page 9: Accessories
Accessories (to order visit www.ussteam.net) Extension Wands – Set of 2 (Part # SV1594) Floor Brush (# SV5672) Hose Floor Brush Adaptor (SV#1835) (Part # SV7778) Squeegee Insert (SV#1530) Squeegee / Brush Insert (SV7326) Squeegee Insert (SV#8015) Squeegee Insert / (SV#7329) Squeegee / Brush Insert (SV#8012) Small Extraction Nozzle... -
Page 10: Indicators / Warnings
De-scale Warning (see instructions page 11 Low Water Indicator The SteamHero will let you know when it is low on water. It will stop producing steam you will hear a beep, and the Low Water Symbol will flash indicating one or both of the reservoir tanks are empty. -
Page 11: Troubleshooting
The SteamHERO powers ON after This is normal: plugging into the electrical outlet Ø Push the ON/OFF Button on the console to power ON the SteamHERO and then turns OFF The SteamHero should be the ONLY appliance plugged into the electrical... -
Page 12: Maintenance
Maintenance Your SteamHero will require minimal maintenance, IF you use it regularly or IF you clean and drain water from the boiler when not in use. After Each Use Ø Clean all accessories with hot soapy water Ø Clean hose Ø... -
Page 13: De-Scaling
CLEAN WARNING: The SteamHERO MUST be cool and at room temperature before descaling. 1) Identify drain cap on bottom of SteamHERO. 2) Turn the cap counter-clockwise. -
Page 14: Specifications
Specifications POWER SUPPLY 120 V. 60Hz READY TIME 10 MINUTES BOILER REFILL SYSTEM AUTOMATIC REFILL STEAM FLOW ADJUSTMENT TURN DIAL CONTROLER PRESSURE 10 BAR / 145 PSI MAX TEMPERATURE 356 °F BOILER VOLUME 1/2 GALLON BOILER MATERIAL AISI 304 WATER TANK CAPACITY 1 GALLON –... -
Page 15: Notices
Notices Read all instructions before using this steam cleaner. WARNING: STEAM GENERATED BY THE STEAM CLEANER IS EXTREMELY HOT AND WILL CAUSE INJURY IF IT COMES IN CONTACT WITH THE SKIN OR EYES. USE AS DIRECTED BY THE MANUAL AND ONLY AIM THE STEAM HANDLE AT THE CLEANING AREA. -
Page 16: Warranty & Repair
5. DO NOT SEND IN A REPAIR WITHOUT AN RMA. WARRANTY Your steamer comes with a warranty which becomes effective on the date of purchase from US STEAM and is granted to the initial customer and is nontransferable. Any claims under this warranty must be made before the end of the applicable warranty period. - Page 17 Seats & Floors Automotive Combine steam and extraction into one system for more efficient detailing. A Better Way to Clean US STEAM® 2440 Chamber Street, Ste A Venus, TX 76083 www.ussteam.net (817) 297-7745...
