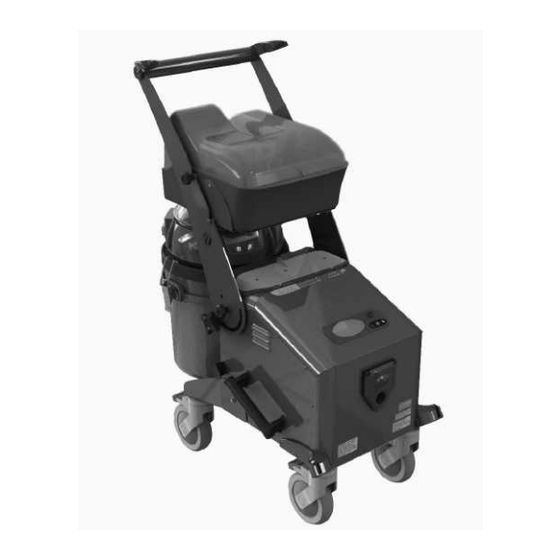

- Page 1 EAGLE PLUS™ STEAM VACUUM US STEAM® 2440 Chamber Street, Ste A Venus, TX 76083 www.ussteam.net (817) 297-7745...
- Page 2 EAGLE PLUS™ STEAM VACUUM EAGLE PLUS™ STEAM VACUUM Toolbox Steam Reservoir Tank ON/OFF VACUUM EXTRACTION Fill Tanks Extraction Detergent Tank Hose Connection ON/OFF Master Power Switch Orange light = Extraction is active Activates the Extraction function Turns on the Vacuum...
-
Page 3: Table Of Contents
EAGLE PLUS™ STEAM VACUUM Quick Start _____________________________________________________________ Extraction /Vacuum _______________________________________________________ Troubleshooting __________________________________________________________ How to use the Extraction Nozzle ____________________________________________ Accessories _____________________________________________________________ Indicators / Warnings ______________________________________________________ Maintenance ____________________________________________________________ Descaling ______________________________________________________________ Specifications ____________________________________________________________ Notices ________________________________________________________________ Warranty & Repair _______________________________________________________ Ø D0 NOT leave the steam cleaner unattended while plugged in Ø... -
Page 4: Quick Start
2) Plug into Electrical Outlet 4) Insert the hose Ø The EAGLE PLUS™ should be Ø Push until you hear a “click” the only appliance plugged into the electrical outlet USE only a Heavy Duty extension cord Ø... -
Page 5: Extraction Vacuum
EXTRACTION & VACUUM Vacuum Extraction Hot Water Injection / Extraction ON/OFF Activate the VACUUM: The Extraction function injects Ø Push the button on the water or a detergent into the console OR steam using the extraction Ø Pushing the button nozzles and floor brush on the hose handle Activate by pushing and... -
Page 6: Troubleshooting
TROUBLESHOOTING PROBLEM SOLUTION Check the Master Power Switch on the back of the EAGLE PLUS™. Does not turn ON when the power The EAGLE PLUS™ should be the ONLY appliance plugged into the button is pushed electrical outlet: Ø Check the fuse box for tripped circuit breaker Ø... -
Page 7: How To Use The Extraction Nozzle
HOW TO USE THE EXTRACTION The EAGLE PLUS™ uses a separate reservoir Activate by pushing and tank to inject water or detergent into the steam. holding the button on Combine the extraction function with the vacuum the hose handle, until the for deeper cleaning on any surfaces. -
Page 8: Accessories
ACCESSORIES Accessories Extension Wands – Set of 2 (Part # SV1594) Floor Brush (# SV5672) Floor Brush Adaptor (SV#1835) Hose Squeegee Insert (SV#1530) (Part # SV7778) Squeegee Insert Squeegee / Brush Insert (SV7326) (SV#8015) Squeegee / Brush Insert (SV#8012) Squeegee Insert / (SV#7329) Large Extraction Nozzle Small Extraction Nozzle (Part # SV8011) - Page 9 3- High Low Water Indicator The EAGLE PLUS™ will let you know when it is low on water. It will stop producing steam you will hear a beep, and the Low Water Symbol will flash indicating one or both of the reservoir tanks are empty.
-
Page 10: Maintenance
MAINTINENCE Your EAGLE PLUS™ will require minimal maintenance, IF you use it regularly or IF you drain water from the boiler when not in use. After Each Use Ø Clean all accessories with hot soapy water Ø Clean hose Ø Empty vacuum bucket Ø... - Page 11 3 months or earlier if the warning indicator light starts flashing and the display shows: CLEAN WARNING: The EAGLE PLUS™ MUST be cool and at room temperature before descaling. 1) Identify boiler drain plug on the bottom of the steamer. 2) Turn the plug counter-clockwise to remove.
- Page 12 DESCALING: RINSE PROCEDURE After descaling, the boiler needs to be rinsed with clean tap water. 1) Remove drain plug and empty the descaling solution from the boiler. 2) Replace drain cap and hand tighten. 3) Refill the steam reservoir tank with tap water. 4) Press the ON button to start the rinse cycle.
-
Page 13: Descaling
Hot water module descaling DESCALING: EXTRACTION TANK 2. Descaling Descale the extraction tank every 12 months or as needed. 1) Empty the water from the Extraction Mix 0.5 liters of descaler and 0.5 liters of tap reservoir tank (see rinse below). water in a dosing bottle. -
Page 14: Specifications
SPECIFICATIONS Specifications POWER SUPPLY 120 V. 60Hz READY TIME 10 MINUTES BOILER REFILL SYSTEM AUTOMATIC REFILL STEAM FLOW: 3 SETTINGS 1 (LOW) / 2 (MEDIUM) / 3 (HIGH) PRESSURE 10 BAR / 145 PSI MAX TEMPERATURE 356 °F BOILER VOLUME 1/2 GALLON BOILER MATERIAL AISI 304... -
Page 15: Notices
NOTICES Read all instructions before using this steam cleaner. Notices WARNING: STEAM GENERATED BY THE STEAM CLEANER IS EXTREMELY HOT AND WILL CAUSE INJURY IF IT COMES IN CONTACT WITH THE SKIN OR EYES. USE AS DIRECTED BY THE MANUAL AND ONLY AIM THE STEAM HANDLE AT THE CLEANING AREA. -
Page 16: Warranty & Repair
5. DO NOT SEND IN A REPAIR WITHOUT AN RMA. WARRANTY Your steamer comes with a warranty which becomes effective on the date of purchase from US STEAM and is granted to the initial customer and is nontransferable. Any claims under this warranty must be made before the end of the applicable warranty period. - Page 17 Seats & Floors Automotive Combine steam and extraction into one system for more efficient detailing. A Better Way to Clean US STEAM® 2440 Chamber Street, Ste A Venus, TX 76083 www.ussteam.net (817) 297-7745...
