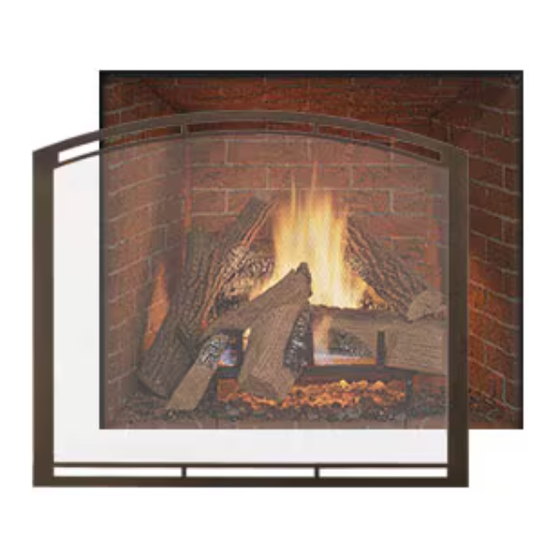

Hearth & Home ARCH-KIT-36 Installation Instructions

Models: FS-36A, FS-36AIFT, FS-42A, FS-42AIFT, FS-50A, FS-50AIFT, FORGE-36A,
FORGE-36AIFT, FORGE-42A, FORGE-42AIFT, FORGE-50A, FORGE-50AIFT
Leave this manual with party responsible for use
and operation.
CAUTION! Risk of Cuts, Abrasions or Flying Debris.
Wear protective gloves and safety glasses during instal-
lation. Sheet metal edges are sharp.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
WARNING! Risk of Fire! Combustible materials MUST
NOT overlap or be placed behind a decorative front.
CAUTION! Do not install damaged components.
KIT CONTENTS:
• Left and Right Arch Fill Pieces
• Top Arch Template
• Arch Strip
• Left and Right Side Finishing Templates
• Top Finishing Trim
• Left and Right Finishing Trim
• Top Glass Vanity Panels (2)
• Bottom Glass Vanity Panel (Included on Forge Front only)
• (8) 1/2 Inch Self Tapping Screws
• (4) 10-24 x 3/4 Hex Screws

Introduction

This kit is for use with decorative fronts installed using
the inside fit finishing method. Inside fit decorative fronts
may be recessed into non-combustible finishing material
up to 4 inches thick.
1 Hearth & Home Technologies • ARCH-KIT-36, ARCH-KIT-42, ARCH-KIT-50 Instructions • 2281-939 Rev. G • 10/19
ARCH-KIT-36, ARCH-KIT-42, ARCH-KIT-50
Installation Instructions
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
NOTICE: Proper clearances from the fireplace opening
to any finishing material thicker than one inch MUST be
maintained.
Top and side templates are included to ensure that
finishing materials thicker than one inch do not interfere
with the installation and operation of the door. Refer to
the appliance installation manual for more information
regarding the different finishing methods.
THREADED
INSERT (4)
ARCH FILL
PIECE (2)
ARCH STRIP (1)
TOP ARCH
TEMPLATE (1)
LEFT AND RIGHT
SIDE TEMPLATES

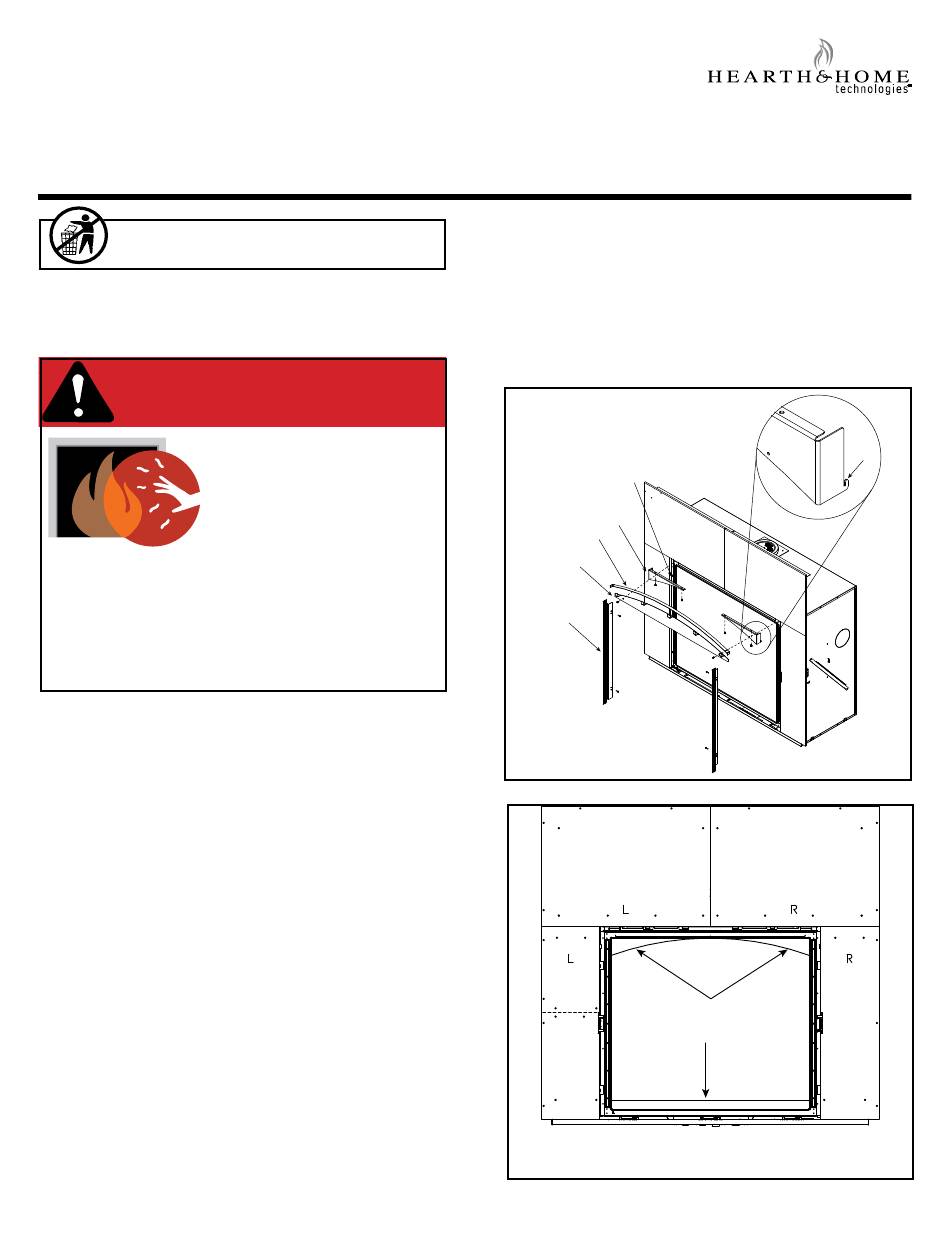

Figure 1. Arch Kit Components
TOP ARCH VANITY PANELS
BOTTOM VANITY PANEL
Note: Bottom vanity panel is used on Forge Arch
decorative fronts only.
Figure 2. Vanity Panels
NOTCH
