CAUTION! Risk of Fire! DO NOT store instruction manuals inside fireplace cavity.
High temperatures could cause a fire.
INSTALLER: Leave this manual with the appliance, not inside the appliance.
CONSUMER: Retain this manual for future reference. Do not store inside the appliance.
Contact your dealer with questions regarding installation, operation or service.
NOTICE: DO NOT discard this manual!

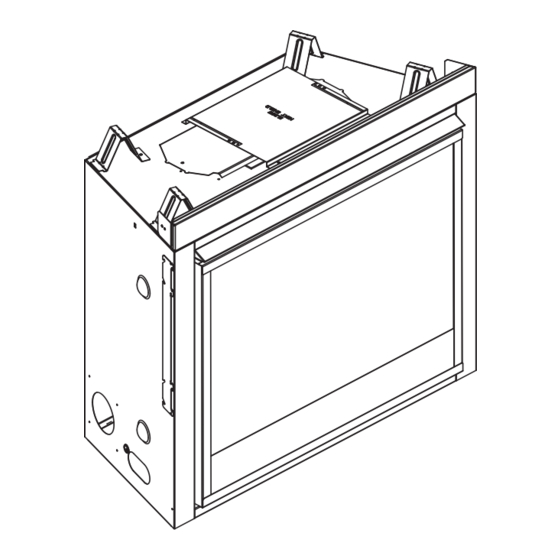

Models:
NOTE: NOT INTENDED FOR FIREPLACE
INSERT. PRIMARILY A DECORATIVE AND
NOT A HEATING APPLIANCE.
DO NOT PLACE ARTICLES ON OR AGAINST THIS
APPLIANCE.
DO NOT USE OR STORE FLAMMABLE MATERIALS
NEAR THIS APPLIANCE.
DO NOT SPRAY AEROSOLS IN THE VICINITY OF
THIS APPLIANCE WHILE IT IS IN OPERATION.
DO NOT MODIFY THIS APPLIANCE.
Owner's Manual

Operation and Maintenance

Ref No GMK10598
AS/NZS 5263.1.8
Hearth & Home Technologies • B36S-AU Owner's Manual • 2563-981 • 10/19
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly
could result in serious injury, death, or
property damage.
• DO NOT store or use gasoline or other flam-
mable vapors and liquids in the vicinity of this
or any other appliance.
• What to do if you smell gas
- DO NOT try to light any appliance.
- DO NOT touch any electrical switch. DO
NOT use any phone in your building.
- Leave the building immediately.
- Immediately call your gas supplier from
a neighbor's phone. Follow the gas sup-
plier's instructions.
- If you cannot reach your gas supplier, call
the fire department.
• Installation and service must be performed
by a qualified installer, service agency, or the
gas supplier.
DANGER
DO NOT TOUCH GLASS
NEVER ALLOW CHILDREN
A barrier designed to reduce the risk of
burns from the hot viewing glass is provided
with this appliance and shall be installed for
the protection of children and other at-risk
individuals.
HOT GLASS WILL
CAUSE BURNS.
UNTIL COOLED.
TO TOUCH GLASS.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B36S-AU and is the answer not in the manual?

Questions and answers

Summary of Contents for Hearth & Home B36S-AU

  • Page 1: Operation And Maintenance

    DO NOT SPRAY AEROSOLS IN THE VICINITY OF individuals. THIS APPLIANCE WHILE IT IS IN OPERATION. DO NOT MODIFY THIS APPLIANCE. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 2: Welcome

    Model Number TO BE INSTALLED ON WOOD FLOORING OR NON-COMBUSTIBLE FLOORING. See installation manual for details. Serial Number Model: Gas Type: Seri a l : MADE IN USA XXXX-XXX Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 3: Table Of Contents

    C. Contact Information ......25  = Contains updated information. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 4: Limited Lifetime Warranty

    Conditions, Exclusion, and Limitations listed Igniters, Electronic Components, and Glass 2 years Factory-installed fans Molded refractory panels 3 years Firepots and burnpots 2000-645F (7-19) Page 1 of 3 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 5 HHT (8) modification of the appliance not expressly authorized and approved by HHT in writing; and/or (9) interrup- tions or fluctuations of electrical power supply to the appliance. 2000-645F (7-19) Page 2 of 3 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 6 444 Swan Street 277 Lord Street 55 Marickville Rd. Richmond 3121 East Perth 6000 Marickville 2204 (03) 9429-5573 (08) 9228-2600 (02) 9505-8505 2000-645F (7-19) Page 3 of 3 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 7: Product Specific Information

    If the provided assembly is removed, it is recommended that a new gas shut-off be installed inside the envelope of the appliance before the gas valve. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 8: Important Safety And Operating Information

    • Keep remote controls out of reach of children. • Never leave children alone near a hot fireplace, whether operating or cooling down. • Teach children to NEVER touch the fireplace. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 9: General Operating Parts

    Make sure the appliance is compatible with gas type selected for installation site. • Conversions must be made by a qualified service technician using Hearth & Home Technologies specified and approved parts. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 10 Suggestions on how to further reduce TV temperatures: Increase “A” dimension. b. Increase “C” dimension, however, increasing “B” dimension beyond maximum recommended typically results in higher temperatures. Figure 3.4. Good Faith TV Guidelines Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 11: Before Lighting Appliance

    • Ensure that the glass is sealed and in the proper position and that the integral barrier is in place. WARNING! Risk of Fire or Asphyxiation! DO NOT op- erate fireplace with fixed glass assembly removed. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 12: Lighting Instructions (Ipi)

    Keep burner and control compartment clean. See installation and operating instruc- Propane Installation code, CSA B149.1. tions accompanying appliance. For additional information on operating your 593-913i Hearth & Home Technologies fi replace, please refer to www.fi replaces.com. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 13: Appliance Break-In

    This cures the materials used to manufacture the fire- place. NOTICE! Open windows for air circulation during fire- place break-in. • Some people could be sensitive to smoke and odors. • Smoke detectors could activate. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 14: Operation During A Power Outage

    Slide the ON/REMOTE/OFF switch to the ON position. NOTICE: Some functionality will be lost when using battery backup including remote control, fan, lights, or any other auxiliary functions that require household 240 VAC power. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 15 MODULE SELECTOR SWITCH FLAME HI/LOW STATUS NG/LP GAS-TYPE SWITCH INDICATOR LED SELECTOR SWITCH Figure 3.6 Control Module Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 16: Maintenance And Service

    CAUTION! Risk of Burns! The fireplace shall be turned • Reinstall decorative barrier front. off and cooled before servicing. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 17 If not using your fireplace for an extended period of time (summer months, vacations/trips, etc), to prevent unin- tended operation: • Remove batteries from remote controls. • Turn the ON/OFF/REMOTE switch on the control module to OFF. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 18: Maintenance Tasks - Qualified Service Technician

    Use caution when cleaning these areas. Screw tips that have penetrated the sheet metal are sharp and should be avoided. • Remove all foreign objects. • Verify unobstructed air circulation. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 19 • Verify batteries have been removed from battery back-up IPI systems to prevent premature battery failure or leaking. NOTE: Appearance of rock jig, pilot shield and media tray may vary between appliance models. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 20: Frequently Asked Questions And Troubleshooting

    In an Intellifire ignition system it is normal to see the pilot flame, but it should turn off when ON/ continually? OFF is turned off. Contact your dealer for additional information regarding operation and troubleshooting. Visit www.hearthnhome.com to locate a dealer. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 21 D. Pilot valve solenoid. Verify that 1.5 to 1.8 VDC is supplied to pilot solenoid from module. If below 1.5 volts, replace module. If 1.5 volts or greater, replace valve. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 22 E. Missing rear refractory bracket or gap Verify that refractory bracket is installed and verify that the behind rear refractory panel. rear refractory is pushed “down’ into the rear refractory bracket. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 23: Reference Materials

    • Install a switch lock or a wall/remote control with child protection lockout feature. • Keep remote controls out of reach of children. See your dealer if you have questions. Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 24: Service Parts

    Glass Latch Assembly Qty 4 req 2382-400 Lava Rock 4021-297 Mineral Wool 050-721 Shoulder Bolt Pkg of 25 319-835-25 Additional service part numbers appear on following page. 10/19 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 25 Orifice Propane (#55C) 2222-037 11.15 Power Cord Assembly Conversion Kits Conversion Kit NG N2P-B36S Regulator NG NGK-DXV-50 Regulator Propane SRVLPK-DXV-50 SRV593-528 Pilot Orifice NG Pilot Orifice Propane SRV593-527 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
  • Page 26: Contact Information

    6053165, 6145502, 6374822, 6484712, 6601579, 6769426, 6863064, 7077122, 7074035, 7098269, 7258116, 7322819, 7470729, 7726300, 8147240, 9625149 or other U.S. and foreign patents pending. 2000-945D Printed in U.S.A. - Copyright 2019 Hearth & Home Technologies • B36S-AU Owner’s Manual • 2563-981 • 10/19...
