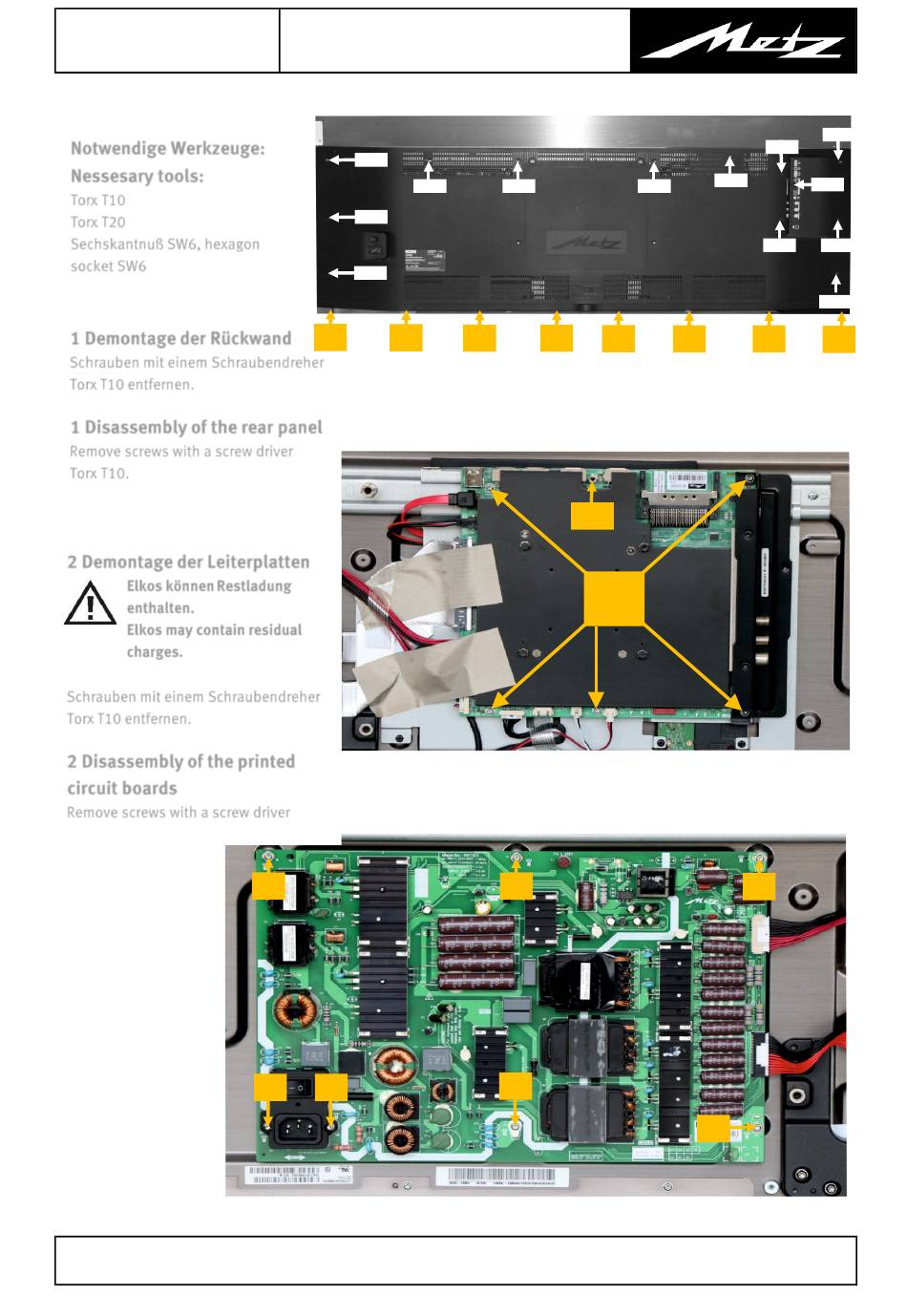

Fineo 55TY82 UHD twin
Notwendige Werkzeuge:
Nessesary tools:
Torx T10
Torx T20
Sechskantnuß SW6, hexagon
socket SW6
1 Demontage der Rückwand
Schrauben mit einem Schraubendreher
Torx T10 entfernen.

1 Disassembly of the rear panel

Remove screws with a screw driver
Torx T10.
2 Demontage der Leiterplatten
Elkos können Restladung
enthalten.
Elkos may contain residual
charges.
Schrauben mit einem Schraubendreher
Torx T10 entfernen.
2 Disassembly of the printed
circuit boards
Remove screws with a screw driver
Technische Änderungen und Irrtümer vorbehalten!
Technical changes and errors excepted!
Demontageanleitung
Disassembly instructions
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
SW6
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
T10
U1811_40200_00
T10
T10
T10
T10
T10
