Realtree RTLS-502 Manual page 5

MODEL: RTLS-502
15' TWO-MAN LADDERSTAND
Always Wear a Safety Harness with this Product
Practice Using at Ground Level
Weight Limit: 500 lbs.
Tree Size: 9"-18" diameter

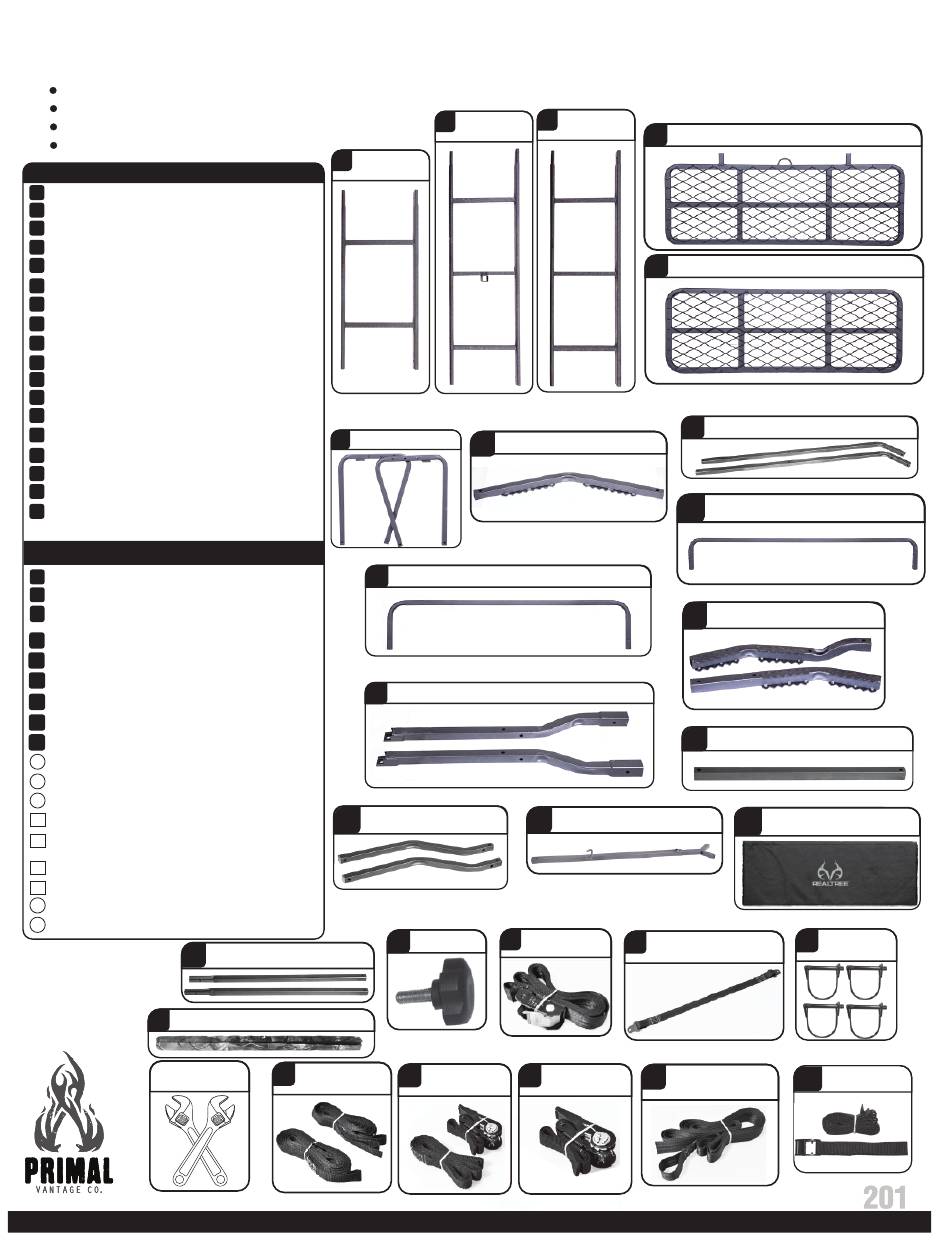

PARTS LIST
A
1 Top Ladder Section.................
B
1 Middle Ladder Section............
C
1 Bottom Ladder Section........... Part # PXBLS-555
D
1 Seat Platform.......................... Part # PXSP-555
E
1 Foot Platform.......................... Part # PXFP-555
F
2 Armrests................................. Part # PXAR-555
G
1 Tree Brace.............................. Part # PXTB-555
H
2 Platform Frames..................... Part # PXPF-555
I
1 Back Shooting Rail...................Part # PXBSR-555
J
1 Front Shooting Rail................. Part # PXFSP-555
K
2 Jaws........................................ Part # PXJW-555
L
2 Ladder Yokes.......................... Part # PXLY-555
M
1 Ladder Step............................ Part # PXLS-555
N
2 Seat Supports......................... Part # PXSS-555
O
1 Stabilizer Bar.......................... Part # PXSB-555
P
1 Seat Cushion........................... Part # PXSC-555
Q
2 Shooting Rail Sides................ Part # PXSRS-555
R
2 Rail Covers............................. Part # PXRC-555
2 Harness...................................
HARDWARE BOX P/N 502H
S
1 Knob....................................... Part # PXKB-555
T 1 Jaw Assembly Tree Buckle..... Part # PXJA-555
U
1 Horizontal Jaw
Assembly Strap....................... Part # PXAS-555
V
4 M6 Quickclips.......................... Part # 1615
W
2 Installation Straps.................... Part # PXIS-555
X
1 Ratchet Strap...........................Part # PXRS-555
Y
1 Jaw Ratchet Strap................... Part # PXJRS-555
Z
1 Jaw Assembly Vertical Strap... Part # PJAVS-555
AA 1 Stabilizer Buckle Strap............ Part # PXBS-555
2 M8x75mm Bolt w/3 washers...
75
65 2 M8x65mm Bolt........................
60 8 M8x60mm Bolt.......................
50 8 M6x50mm Bolt........................
53 2 M6x50mm Bolt........................
w/ 3 washers
40 2 M6x40mm Bolt........................Part # 1040
25 2 M6x25mm Bolt........................Part # 1025
45 5 M8x45mm Bolt.........................
55 4 M8x55mm Bolt.........................
Q
R
Rail Cover (2)
Tools Required
Adjustable Wrench
Distributed by Primal Vantage Company Inc., 2407 W. Euclid Ave., Littleton, CO 80120
CUSTOMER SERVICE DEPARTMENT 1-866-972-6168
A
Top Ladder
Section (1)
Part # PXTLS-555
Part # PXMLS-555
F
Armrest (2)
Part # 2019
J
L
Part # 1275
Part # 1285
Part # 1260
N
Part # 1050 Seat Support (2)
Part # 1053
Part # 1245
Part # 1255
Shooting Rail Sides (2)
Installation
W
Straps (2)
C
B
Bottom Ladder
Middle Ladder
Section (1)
Section (1)
G
Tree Brace (1)
Front Shooting Rail (1)
Ladder Yoke (2)
O
Stabilizer Bar (1)
T
Jaw Assembly
S
Knob (1)
Tree Buckle (1)
X Ratchet Y Jaw Ratchet
Strap (1) Strap (1)
D
Seat Platform (1)
E
Foot Platform (1)
H
Platform Frame (2)
I
Back Shooting Rail (1)
K
Jaws (2)
M
Ladder Step (1)
P
Seat Cushion (1)
V
Horizontal Jaw Assembly
U
Strap (1)
Z
Jaw Assembly AA
Vertical Strap (1)
PRIMALVANTAGE.COM/REALTREE
M6
Quickclip (4)
Stabilizer Buckle
Strap (1)
9
©2019 (rev. 1/19)
