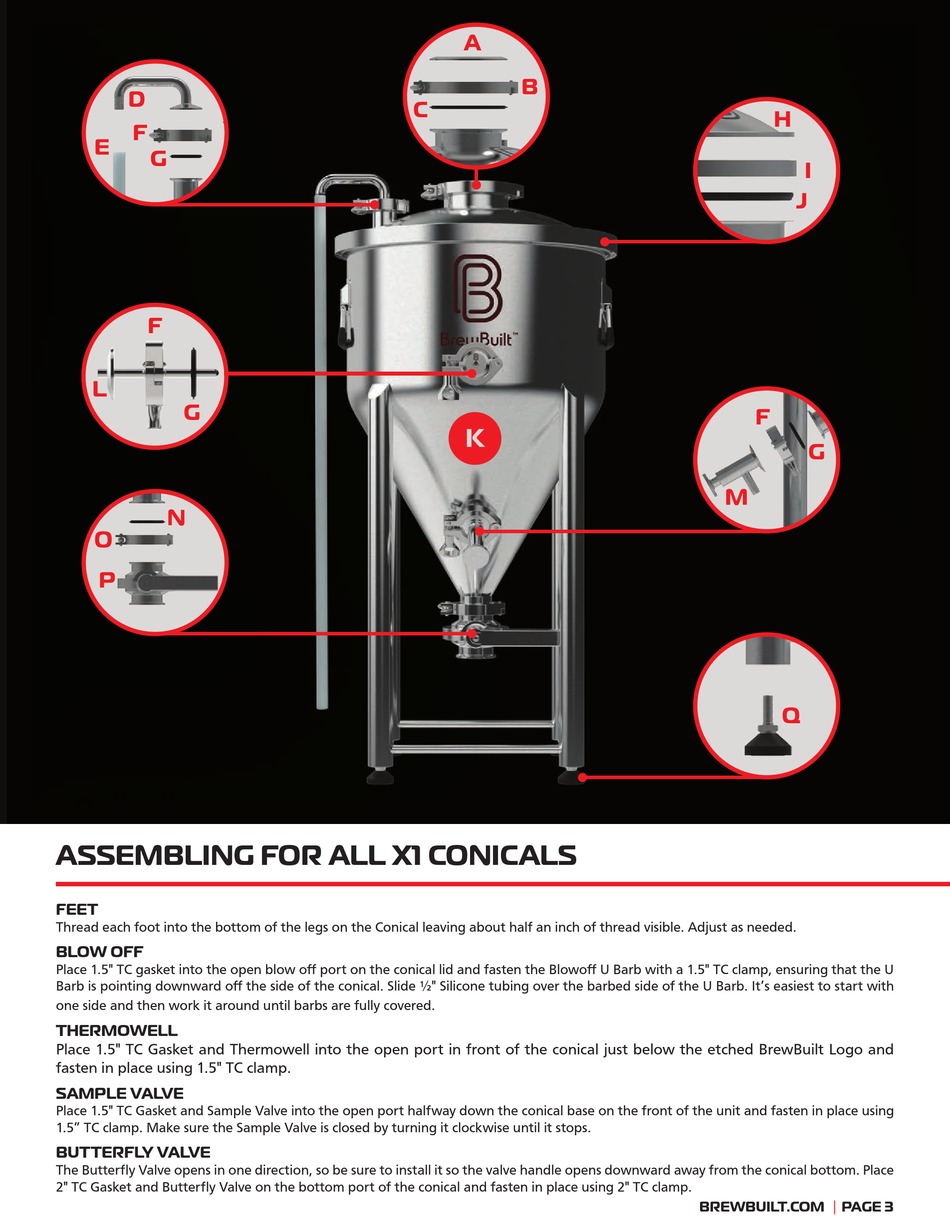

ASSEMBLING FOR ALL X1 CONICALS
FEET
Thread each foot into the bottom of the legs on the Conical leaving about half an inch of thread visible. Adjust as needed.
BLOW OFF
Place 1.5" TC gasket into the open blow off port on the conical lid and fasten the Blowoff U Barb with a 1.5" TC clamp, ensuring that the U
Barb is pointing downward off the side of the conical. Slide ½" Silicone tubing over the barbed side of the U Barb. It's easiest to start with
one side and then work it around until barbs are fully covered.
THERMOWELL
Place 1.5" TC Gasket and Thermowell into the open port in front of the conical just below the etched BrewBuilt Logo and
fasten in place using 1.5" TC clamp.

SAMPLE VALVE

Place 1.5" TC Gasket and Sample Valve into the open port halfway down the conical base on the front of the unit and fasten in place using
1.5" TC clamp. Make sure the Sample Valve is closed by turning it clockwise until it stops.

BUTTERFLY VALVE

The Butterfly Valve opens in one direction, so be sure to install it so the valve handle opens downward away from the conical bottom. Place
2" TC Gasket and Butterfly Valve on the bottom port of the conical and fasten in place using 2" TC clamp.
A
B
C
K
H
I
J
F
G
M
Q
