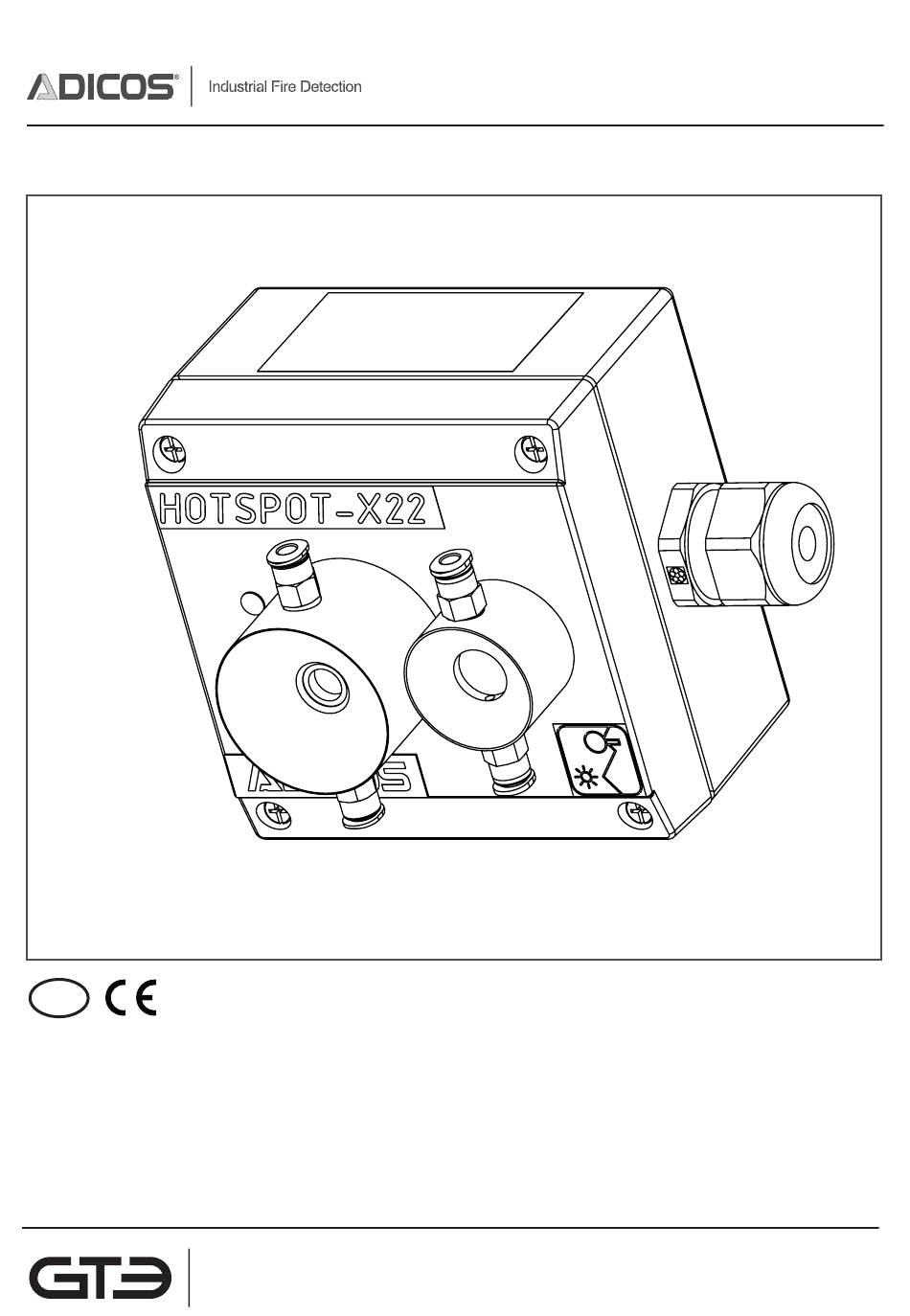

- Page 1 HOTSPOT-X22 Supplementary Instruction Manual for X22-Detectors IR-Temperature Detector GTE Industrieelektronik GmbH | Helmholtzstr. 21, 38 – 40 41747 Viersen | Germany | +49 2162 3703-0 | info@gte.de...
- Page 2 41747 Viersen GERMANY Support hotline: +49 2162 3703-0 E-Mail: support.adicos@gte.de © 2020 GTE Industrieelektronik GmbH – This document and all figures contained may not be copied, changed, or distributed without explicit approval by the manufacturer! Subject to technical changes! ADICOS and GSME are registered trademarks of GTE Industrieelektronik GmbH.
- Page 3 • Detection of hot surfaces • Detection of flames • Detection of moving hot spots (pockets of embers) • Monitoring of machinery and parts ADICOS HOTSPOT-X22 detectors are designed for operation within explosive atmospheres of ATEX zone 22. ADICOS 410-2410-017EN21...
-
Page 4: Table Of Contents
CONTENTS Table of Content About this manual ..........Objective. -
Page 5: About This Manual
AbouT THIS MAnuAl About this manual Objective This manual describes the special requirements on installation, wiring, commissioning, and operation of ADICOS detectors for explosive atmospheres of ATEX zone 22. They are exclusively addressed to knowledgeable specialist personnel (–› Chap. 2, Safety instructions). Explanation of symbols This manual features a continuous structure for best possible comprehension. -
Page 6: Safety Instructions
• Read and follow this manual carefully! Intended use ADICOS HOTSPOT-X22 are designated for the detection of fire scenarios in explosive atmospheres of ATEX zone 22. In this context, the operating parameters described in Chap. 8, »Technical data« must be met. Any deviating use requires prior consultation with the manufacturer. -
Page 7: Personnel Qualification
Handling electrical voltage DANGER! The electronics of ADICOS HOTSPOT-X22 detectors requires an electrical volt- age that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! • De-energize the entire detector system and secure against unintentionally... -
Page 8: Structure
STrucTurE Structure Overview Description ① Enclosure: ② Display elements ③ Purge air connection IR-Sensor ④ IR-Sensor ⑤ Purge connection camera ⑥ Explosion Proof cable gland ⑦ Camera 410-2410-017EN21 ADICOS... -
Page 9: Cable Assignment
STrucTurE Cable assignment Wire Color Signal Limit value contact black Operating voltage 24 ... 40 V DC non polarized white black Relay output X6 e Alarm NO white Relay output X6 a Alarm NO black Relay output X7 a Fault NC white Relay output X7 e Fault NC... -
Page 10: Installation
InSTAllATIon Installation Mounting on Mounting Plate WARNING! ADICOS HOTSPOT-X22 detectors must be mounted with closed enclosure. • Do not open enclosure! • Use ADICOS mounting plate! 410-2410-017EN21 ADICOS... -
Page 11: Mounting On Mounting Bracket
InSTAllATIon Mounting on Mounting Bracket WARNING! ADICOS HOTSPOT-X22 detectors must be mounted with closed enclosure. • Do not open enclosure! • Use ADICOS mounting foot! ADICOS 410-2410-017EN21... -
Page 12: Wiring
Wiring DANGER! The electronics of the ADICOS HOTSPOT-X22 detectors requires an electrical voltage that can trigger an explosion in potentially explosive atmospheres. • Do not open enclosure! • De-energize the entire detector system and secure against unintentionally reactivation for all wiring work! •... -
Page 13: Technical Data
TEcHnIcAl dATA Technical data General Model: HOTSPOT-X22 Item No.: 410-2001-120 Enclosure dimensions: 128 x 100 x 90 (h x w x l) Weight: (incl. 7 meter cable): Enclosure: Aluminum die casting, powder-coated Electrical properties Rated Voltages: DC 24 Voltage range: DC 21,6 …... -
Page 14: Appendix
AppEndIx NOTE! ADICOS X22-Detectors are rated Protection by enclosure “tc”. • An Ex barrier is not mandatory! Appendix ADICOS Mounting Plate 1 5 0 1 3 0 6 , 4 A - A 410-2410-017 EN21 ADICOS... -
Page 15: Adicos Mounting Bracket
ADICOS Mounting Bracket 8,50...
