GVision K10PS-F Specifications

1 0 . 4 " O p e n F r a m e T F T L C D M o n i t o r
Industrial Application
W h e r e W h e r e V e r s a t i l i t y V e r s a t i l i t y

Configuration

LCD Display
Pixel Pitch
Max. Resolution
Contrast Ratio
Brightness
Response Time ( Tr+ Tf )
Display Color
Effective Display Area
Viewing Angle (CR 10)
Backlight
Lamp Life
Input Signals
Signal Connector Analog
Digital
Video-in
Scan Frequency
Speakers
USB HUB
Touch panel
Key Control
Operating Condition Temperature
Humidity
Altitude
Storage Condition Temperature
Humidity
Power
Power Consumption
Power Management
Dimensions (WxHxD)
Dimensions (Carton 2 in 1)
Weight (Net)
Certification
* Specifications are subject to change without notice.
I/O Ports
DC in VGA
UNOT : mm
GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w GVision Incorporated T E L : + 8 8 6 - 2 - 8 2 2 6 - 5 5 11 / FA X : + 8 8 6 - 2 - 8 2 2 6 - 5 5 3 3 / w w w. g v i s i o n . c o m . t w
M e e t s M e e t s F l e x i b i l i t y F l e x i b i l i t y
K10PS-FA
10.4" TFT active matrix panel
0.264(H) x 0.264 (V) mm
SVGA 800 x 600
400:1 (typical)
2
220 Cd/m (typical)
45 ms (typical)
262K
211.2(H) x 158.4(V)
110 (H) x 80 (V)
CCFL x 1
20,000(hr)
Analogue VGA
D-sub 15 pin (VGA)
N/A
RCA, S-video (option)
H. scan 31 ~ 54KHz,
V. scan 56 ~ 85Hz
N/A
N/A
Resistive/Capacitive - RS232 or USB
A type (Option)
Power on/off with LED, Menu, Select,
Adjustment (+, - )
o o o o
0 C-50 C (32 F-122 F)
20%-80% (no condensation)
To 10,000 feet
o o o o
-20 C-60 C ( -4 F-140 F )
10%-90% ( no condensation )
Universal power adaptor
Input AC 100~240V , 50~60HZ
Output DC 12V/2A
18W
VESA DPMS Standard
302 x242 x 39 mm
430 x 310 x 118 mm
1.7 Kg
C-UL, FCC, CE

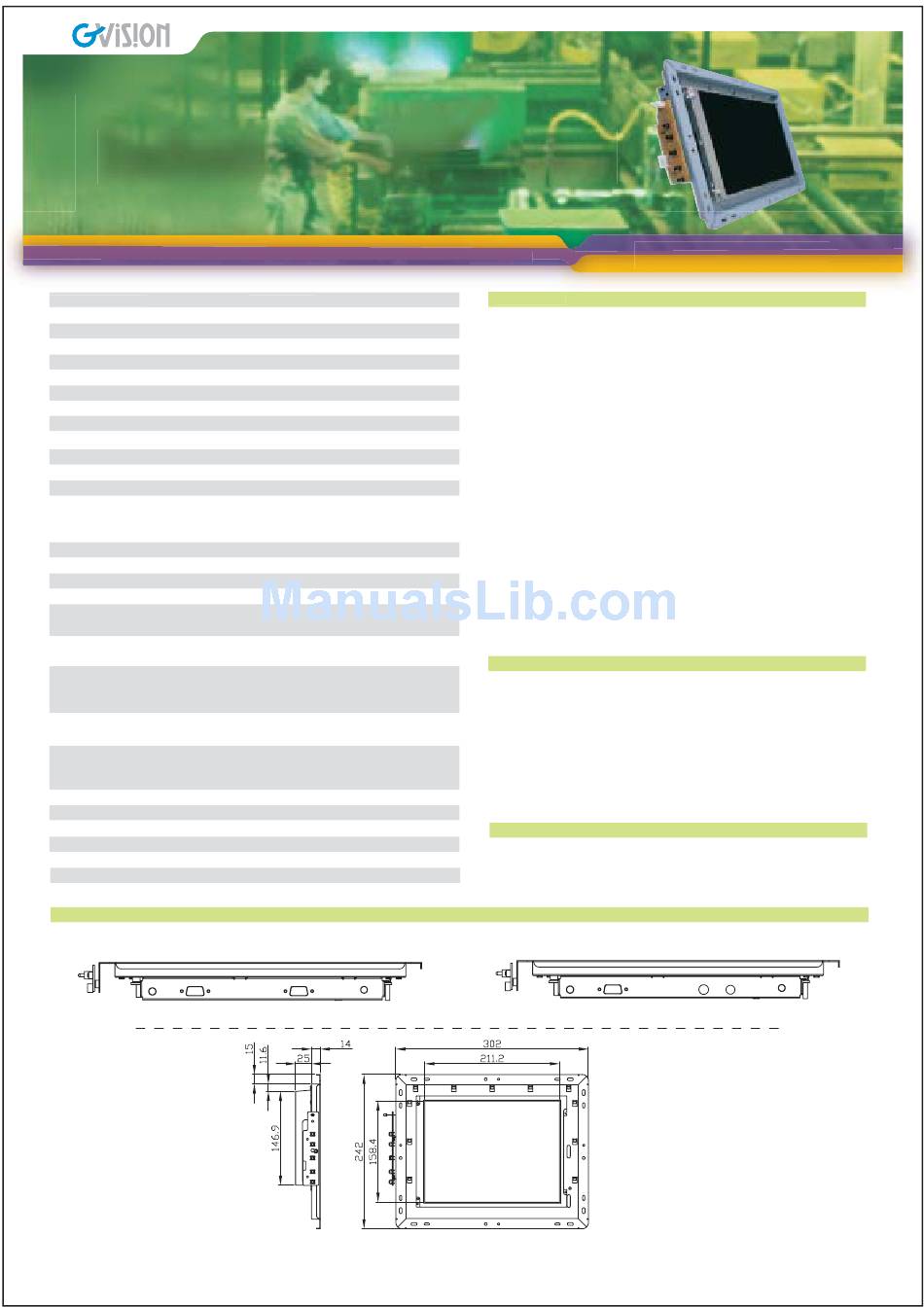

Mechanical drawing

Touch Audio
K10PS-FA K10PS FA K10PS FA
Featires :
* High contrast color TFT LCD open frame display support
resolution up to XGA 800x600. Compatible with IBM VGA,
VESA standards.
• Flexible mechanical designs for industrial application.
• Multi-signals: VGA, Composite video, s-video (Auto
detection of input signals).
• Composite video system PAL/NTSC and SECAM
compatible.
• Support DDC1/2B for Plug & Play compatibility.
• Advanced OSD control for picture quality adjustment.
• Optional touch solutions.
Optional Accessories :
• 3M 5 Wire resistive touch panel
• ELO 5 Wire resistive touch panel
• Anti-Glare tempered glass
• Customized touch solution acceptable.

Ordering Information :

• K10PS-FA VGA only
* K10PS-FW VGA, Video-in
Video I/O Ports
DC in VGA
Front Side
S-Video RCA Audio
