Page 1: Operation Guide

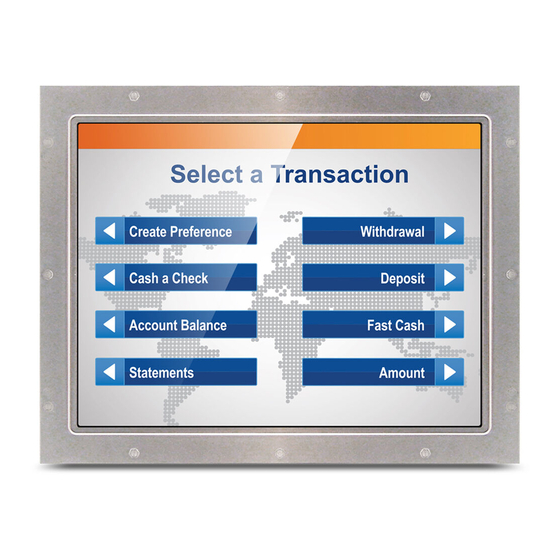

Operation Guide 15” TFT LCD Monitor On Screen Display Control 1024 x 768 Max. Resolution Video-in/Touch Screen Function... - Page 2 Key Control / Indicator Connector R0062130...
-
Page 3: Package Contents
Package Contents Included with your LCD monitor are following items: 15” TFT liquid crystal monitor D-sub 15 pin signal cable DVI 24 pin signal cable ( option) Power apdater 12V/3A AC power cable DC 24V-in cable ( option ) Operation guide... -
Page 4: Display Modes
Video in(RCA) This can be connected with the video-in RCA connector. Adjusting with the OSD Control To Display and Select the OSD Functions: Pressing ▲, ▼, , or once pops up the OSD function main menu. Pressing ▲ or ▼ a second time to select the different OSD control. Pressing button changes the value of the selected OSD control option. -
Page 5: Specifications
1024X768 VESA75 60.023 75.029 + / + Specifications Model W5TX / S5TX LCD Display 15.0” TFT Active Matrix Panel Display Size 304.1(H) x 228.1(V) mm Pixel Pitch 0.297(H) x 0.297(V) mm Max. Resolution XGA 1024 x 768 Contrast Ratio 300 : 1 (min.) / 400 : 1 (max.) Brightness 200 Cd/m (min.) / 250 Cd/m... - Page 6 Federal Communication Commission Radio Frequency International Statement This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
