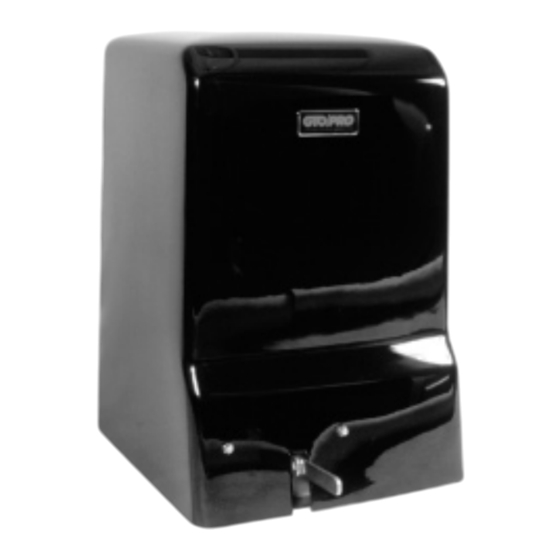

Ac powered slide gate operators

Advertisement

INSTALLATION INSTRUCTIONS FOR
GTO/PRO SL-5000 and GTO/PRO SL-6000
• READ ALL INSTRUCTIONS COMPLETELY before attempting
installation and use; failure to do so may result in serious injury or death!
• This unit must only be installed by an experienced technician!
• DANGER: HIGH VOLTAGE! Contact with gate operator circuitry
can cause serious injury or death! Operator power must be
disconnected before servicing!
• This gate operator produces a high level of force. Stay clear of the unit
while it is operating and exercise caution at all times.
This product meets and exceeds the requirements of UL 325, the standard which regulates gate operator safety,
as established and made effective March 1, 2000, by Underwriters Laboratories Inc.
DO NOT Install This Operator Without Roller Guards And Safety Edges!
Telephone (800) 543-GATE or (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com
AC Powered Slide Gate Operators
WARNING!
© 2000 GTO, Inc.
3121 Hartsfield Road • Tallahassee, Florida 32303
US

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SL-5000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for GTO SL-5000

  • Page 1 INSTALLATION INSTRUCTIONS FOR GTO/PRO SL-5000 and GTO/PRO SL-6000 AC Powered Slide Gate Operators • READ ALL INSTRUCTIONS COMPLETELY before attempting installation and use; failure to do so may result in serious injury or death! • This unit must only be installed by an experienced technician! •...
  • Page 2 The GTO/PRO SL-5000 and SL-6000 automatic gate operators are intended for use with vehicular slide gates. The operators can be used in Class I, II, III, and IV applications. VEHICULAR GATE OPERATOR CLASS CATEGORIES Residential Vehicular Gate Operator–Class I: A vehicular gate operator (or system) intended for use in a home of one-to-four single family dwelling, or a garage or parking area associated therewith.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS Gate Operator Class Categories ...Inside Cover Metric Conversion Chart ...Inside Cover Safety Instructions for the GTO/PRO-SL-5000 and GTO/PRO SL-6000 Slide Gate Operators ... 1 Important Safety Instructions for the System Designer ... 1 GTO Foot Pedal Release ... 1 Important Safety Instructions for the Installer ...
  • Page 4: Safety Instructions For The Gto/Pro-Sl-5000 And Gto/Pro Sl-6000 Slide Gate Operators

    Because GTO automatic gate operators are only part of the total gate operating system, it is the responsibility of the designer, installer, and purchaser to ensure the total system is safe for its intended use. Bypassing safety devices or neglecting to use safety devices with the gate operator is NOT acceptable.
  • Page 5: Important Safety Instructions For The Installer

    Review the operation of the system and become familiar with its safety features. Understand how to disengage and re-engage the operator with the foot pedal release (see GTO Pedal Release on page 1). This gate operator is intended for vehicular gates ONLY. A separate entrance or gate must be installed for pedestrian use (see page 5).
  • Page 6: Important Safety Instructions Specific To Secondary Means Of Protection Against Entrapment

    GTO gate operators utilize Type A, an inherent entrapment sensing system, as the primary type of entrapment protection. The GTO/PRO SL-5000 and GTO/PRO SL-6000 operators have provisions for the connection of Type B1, B2, or D protection to be used as the secondary type of entrapment protection.
  • Page 7: Important Safety Instructions For The Consumer/End User

    To operate this equipment safely, YOU must receive detailed instructions on the operation of the foot pedal release (see GTO Foot Pedal Release on page 1). If you feel you have not received full and proper instructions, contact your installer.
  • Page 8: Required Safety Precautions For Gates

    For this reason, safety devices such as safety edges MUST be installed. Furthermore, a walk-through gate must be installed if pedestrian traffic is expected near the gate. We recommend the GTO Bulldog Pedestrian Gate Lock (available as an accessory) for controlled access.
  • Page 9: Warning Labels

    Important Safety Instructions Warning Labels These warning signs and labels should be found at the locations specified below. If any of them are missing, immediately contact your installer for replacements. WARNING Moving Gate Can Cause Injury Or Death 1. KEEP CLEAR! Gate may move at any time. 2.
  • Page 10: Technical Specifications

    • Operator compatible with all types of horizontal slide gates. • GTO/PRO SL-5000: weight up to 1000 lb.; length up to 60 ft. (with an opening of 50 ft.) • GTO/PRO SL-6000: weight up to 2500 lb.; length up to 60 ft. (with an opening of 50 ft.) •...
  • Page 11: Parts Identification

    PARTS IDENTIFICATION GTO/PRO AC Slide Gate Operator Parts AUTOMATIC GATE OPERATORS WARNING Moving Gate Can Cause Injury Or Death Fully Assembled Operator Chain Brackets (2) ® GTO Transmitter (1) Gate Warning Signs (one for each side) Conforms to UL 325 STANDARD S ®...
  • Page 12: Installing The Gate Operator

    INSTALLING THE GATE OPERATOR THIS UNIT MUST ONLY BE INSTALLED BY AN EXPERIENCED TECHNICIAN. Preparation of the Gate Before installing the GTO/PRO slide gate operator, make sure: • the gate is properly installed. • the gate is plumb, level, and moves freely.
  • Page 13: Using The Mounting Template

    Using the Mounting Template The mounting template (see insert) is designed to simplify mounting the operator. It provides the installer with the proper locations for running power and accessory wiring conduits. The template is also marked with the correct distance between the operator mounting holes and shows the installer how to position the operator for the correct clearance between the housing and the gate.
  • Page 14: Removing The Operator Housing

    (included), one on each side of the bracket. Do not overtighten the nuts; they will be used to adjust chain tension. Attach chain to one chain adjuster bolt. Use #40 chain with the GTO/PRO SL-5000, and #50 chain with the GTO/PRO SL-6000.
  • Page 15: Connecting Power To The Operator

    Chain adjuster bolts: adjust outside nut until desired chain tension is achieved. Tighten inside nut to secure bolt (see illustration below). Release foot pedal to re-engage chain sprocket. Chain Bracket Chain Bracket and Adjustment Bolt Connecting Power to the Operator Have a licensed electrician run 115 Vac wiring into a Field Wiring Connection Compartment (ON/OFF) box.
  • Page 16: Adjusting The Limit Switches

    ADJUSTING THE LIMIT SWITCHES The limit switches determine how far the gate travels to open and close. The closer the limit nut is to the limit switch, the less distance the gate will travel to open or close. Adjust the limit switches by moving the limit nuts. MAKE SURE THE OPERATOR POWER IS OFF BEFORE ADJUSTING THE LIMIT SWITCHES.
  • Page 17: Gate Operator Control Board

    GATE OPERATOR CONTROL BOARD CLS. SENS. OPN. SENS. INERTIA CLOSE TIMER GTO Inc., Tallahassee, FL copyright 1999 Diagnostic LEDs PWR OK TIMER ON OBSTRUCT MAX TIME SENSOR ERR. LIM SW ERR. OPEN MTR. INTERN.ERR. 1/2 amp slow blow fuse REV FWD...
  • Page 18: Control Board Settings

    CONTROL BOARD SETTINGS THESE SETTINGS SHOULD BE ADJUSTED ONLY BY AN EXPERIENCED INSTALLER OR TECHNICIAN! RST/LEARN: 1) Use to set transmitter code in control board memory. 2) Press this button to clear the diagnostic and error LEDs. DIP switches (To change these settings, you must turn power OFF; move the switch;...
  • Page 19 (see Installing a Dual Slide Gate System on pages 22- 23) is compatible with this terminal. All four (4) connectors plus one (1) COMMON must be wired. GTO RCVR.: For connecting a GTO receiver ONLY. Other receivers may be connected to the 24VDC terminal block (see CAUTION at 24VDC).
  • Page 20: Setting Your Personal Transmitter Code

    SETTING A PERSONAL TRANSMITTER CODE All GTO transmitters are set to a standard code at the factory and are ready to operate the GTO/PRO SL-5000 & GTO/ PRO SL-6000 series operators. For safety and security, however, we strongly recommend that the factory setting be replaced with a personal code.
  • Page 21: Reinstalling The Operator Housing

    REINSTALLING THE OPERATOR HOUSING Check to make sure the roller guards, fence screen, safety edges (or photoelectric beams), warning signs, and pedestrian gate (if necessary) are installed (see pages 5-6) before fastening the housing to the operator. Also, verify that the chain is properly aligned and not kinked or binding along its path of travel. The control box should be closed and fastened with (3) screws.
  • Page 22: Compatible Safety Devices

    Although GTO strongly recommends the use of safety devices, we do not endorse any specific brand names. Below is a list of some products compatable with GTO operators systems, some of which require their own power supply. Check with the individual manufacturer for specific power needs.
  • Page 23: Installing A Dual System

    Setting Dual Gate Sequence SL-5000 and SL-6000 operators come from the factory with the Sequence 1 and 2 DIP switches set to OFF, for single gate operation. DIP Switches must be changes to accommodate dual gate operation. The chart below shows the various combinations to suite your specific application.
  • Page 24 Master Control Board (MAST) – DUAL GATE INTER- – FACE RCVR. Set DIP Switches for Swing Gates ST / LEARN SWNG/SLD MAST/SLV GATE R/L SEQUENC 1 SEQUENCE 2 TMR. OFF/ON EDGE 6 EDGE 5 The DUAL GATE INTERFACE RX TX terminal requires 22 AWG direct burial wire manufactured by Belden Inc.
  • Page 26: Maintenance

    Oil and adjust the chain when necessary. Check for wear on all moving parts, and tighten bolts as necessary. Check the gearbox for any sign of oil leakage. If the gearbox is leaking, call the GTO Service Department for assistance. DO NOT ADD OIL! Check rollers or hinges on the gate and lubricate if needed.
  • Page 27: Trouble Shooting Guide

    Install fresh batteries in the transmitter. If problem persists, the receiver may be damaged. Call the GTO Service Department. C. Disconnect the accessories from the control board and jumper the CYCLE terminal. If the unit operates;...
  • Page 28: Warranty And Repair Service

    NOTE: Verification of the warranty period requires copies of receipts or other proof of purchase. Please retain these records. After the warranty period, GTO or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO at (850) 575-0176 for more information.
  • Page 29: Installation Check List

    ___ Customer was instructed about proper use of transmitter and (or) other entry controls. ___ Customer was asked to fill out customer support card and mail it to GTO, Inc. ___ Customer was asked to retain all receipts (receipts provide proof of warranty).
