IMPORTANT:
intercom base unit's battery
to charge for 12 hours before
using the system for the first
time. See page 7 for details.

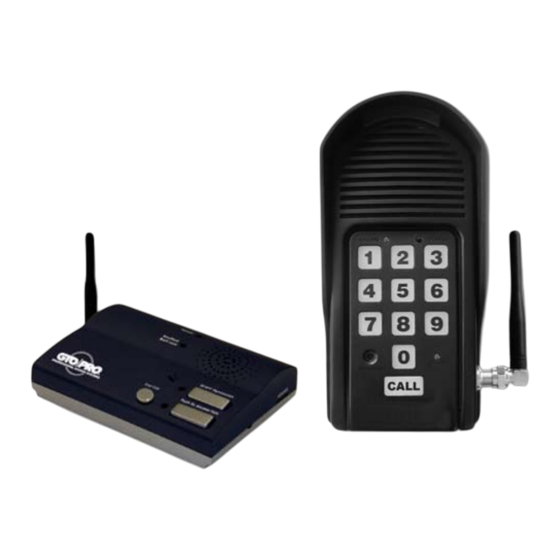

Wireless Gate Entry Intercom
Instructions for Wireless and Wired Installations
Crystal clear two-way communication up to 500 feet wireless or 1000 feet with extended antenna.
Thank you for purchasing the GTO Wireless Gate Entry Intercom. Please

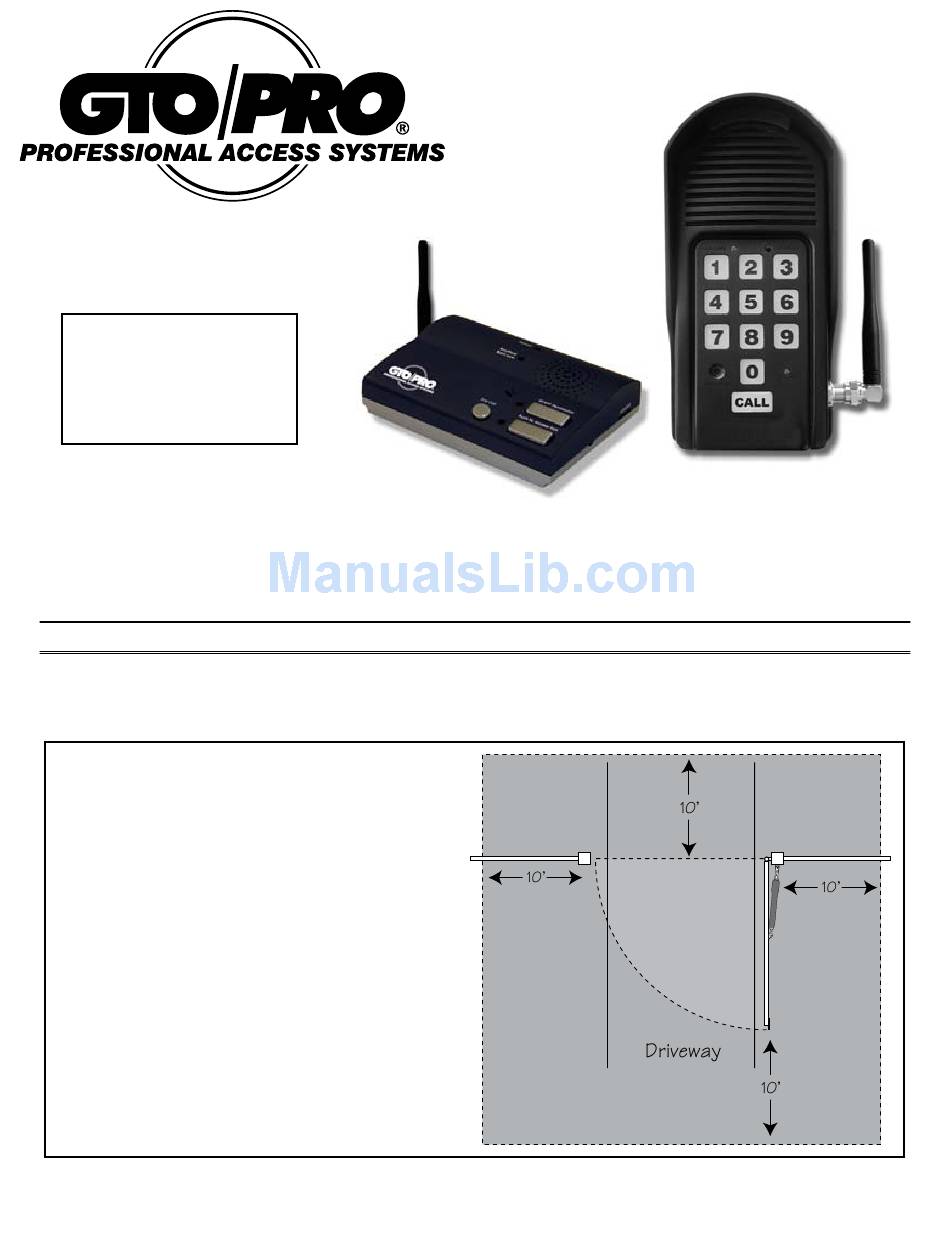

SAFETY NOTE: Never install the keypad
portion of this unit where a person can
reach through the gate to activate it, or
where a person can touch the gate while
activating the keypad. The recommended
minimum distance between the gate and
keypad is 10 ft.
Telephone (850) 575-0176 • Fax (850) 575-8912 • website www.gtoinc.com
rev - 05-01-07
Allow the
Base Unit
read the directions carefully and completely before installing.
GTO, Inc. • 3121 Hartsfield Road • Tallahassee, Florida 32303
Moving Gate
Area
NEVER INSTALL
any control device
within gray area
Keypad Unit
©2005 GTO, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO F3100MBC
Summary of Contents for GTO F3100MBC
- Page 1 Instructions for Wireless and Wired Installations Crystal clear two-way communication up to 500 feet wireless or 1000 feet with extended antenna. Thank you for purchasing the GTO Wireless Gate Entry Intercom. Please read the directions carefully and completely before installing.
- Page 2 RESET button. IMPORTANT: In areas of high radio frequency (RF) interference, the KEYPAD may need to be connected (hard wired) directly to the gate opener using 16 gauge (AWG) stranded, direct burial, low voltage wire (GTO part no. RB509 not included).
-
Page 3: Keypad Description
All codes are deleted. Default master code is 1234. ID SET button: This button is used only when there is another pair of GTO wireless intercom units nearby causing interference. Battery Holder: Use 4 AA batteries if hard-wired power supply is not used. -
Page 4: Control Board Connections
See Programming the Keypad section. Control Board Connections NOTE: If your control board doesn’t look like any of these diagrams, please call GTO Technical Service at 1-800-543-1236 or 850-575-4144 for additional support. PRO-1000, PRO-SL1000 and Old Mighty Mule Control Boards... -
Page 5: Programming The Keypad
Programming Interface: • All codes are four (4) digits in length. • Entry code is a four (4) digit code needed to activate the gate. • Master Code is needed to add, remove or reset entry codes. • Master Code also functions as the entry code under normal operation. -
Page 6: Intercom Description
BATTERY ACCESS Cover: Rechargable 3.6 Volt Ni-MH battery included. ON/OFF Switch: Turn OFF to conserver power when battery operated. ID SET button: This button is used only when there is another pair of GTO wireless intercom units nearby causing interference. -
Page 7: Connecting The Battery
Intercom Base Unit Installation Connecting the Battery Remove the battery access cover using a small phillips head screwdriver. Plug the rechargeable Ni-MH battery into the receptacle inside the battery compartment. See diagram to the right. When this is done, replace the battery access cover. - Page 8 Intercom ID Codes The Base and Keypad that came in this kit are programmed at the factory to communicate with each other, and do not need the ID Codes programmed. This Base is the MASTER or #1 unit. Adding Additional Base Units If you have purchased additional Base units to enhance your system, each additional unit’s ID Code must be programmed into the Keypad so...
- Page 9 Extending Antenna Range In areas of high radio frequency (RF) interference, the intercom may not work as a wireless system. In these areas the keypad antenna will need to be extended (run closer to the house) using RG59 or RG6 co-axial cable, which is the same type of cable used for cable TV.
-
Page 10: Test The System
Test the System IMPORTANT: The Base unit and the Keypad can not be within 30 feet of each other when operating. If units are closer than 30 feet the signal will be inconsistent as well as emit speaker feed back. Also, multiple Base units must be no closer than 10 feet from each other to prevent interference. - Page 11 After the one (1) year warranty period, GTO Inc. or one of its authorized service centers will make any necessary repairs for a nominal fee. Call GTO at 850/575-4144 for more information.
