Accepts up to 4
Intercom/Keypad
rev - 12/01/10
111009
base units

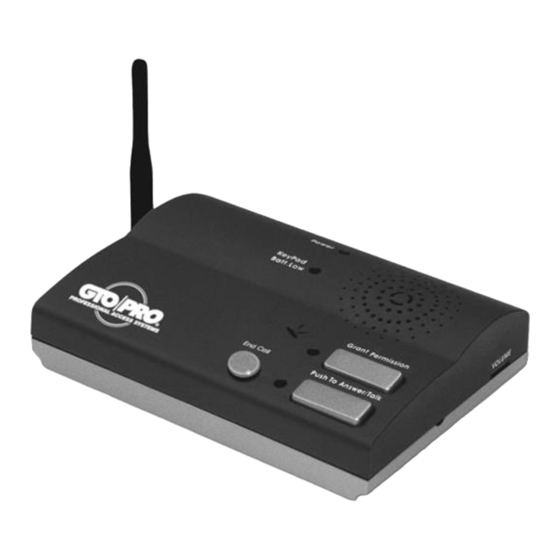

Indoor Base Station
• Increased Surveillance: Screen visitors and
solicitors safely from inside your home.
• Superior Range: Crystal clear two-way communication
up to 500 ft. (152.4 m).
• Stand Alone Keypad: Program up to 100 entry codes
for added security.
Motion activated backlit keypad
Attractive aluminum faceplate
Vandal resistant locked housing
• Access Control: Accept or deny access to your property
with the touch of a button.
• Interior Intercom : Mobile interior intercom can be
used anywhere in your home (battery and charger
included).
• Accepts up to 4 base stations: Kit includes one base
station with rechargeable battery.
• Exterior Intercom/Keypad : Powered with four "AA"
batteries (not included) or the gate operator's 12 Volt
DC power source.
•
Gooseneck Pedestal (F110/F100)
•
Additional Indoor Base Stations (F3101MBC)
*Due to FCC regulations and local RF environmental "noise," some applications may
require hard wiring between the two devices.
_________
Advertisement
Related Manuals for GTO F3101MBC
Summary of Contents for GTO F3101MBC
- Page 1 DC power source. Intercom/Keypad Indoor Base Station • Gooseneck Pedestal (F110/F100) • Additional Indoor Base Stations (F3101MBC) *Due to FCC regulations and local RF environmental “noise,” some applications may require hard wiring between the two devices. rev - 12/01/10 111009...
-
Page 2: How It Works
Visitors with access codes simply use their code to operate the gate. Temporary codes can be programmed to expire within a set number of days. GTO–Gates That Open, LLC • 3121 Hartsfield Road • Tallahassee, Florida 32303 Telephone (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com • www.gtoaccess.com... - Page 3 ©2010 Gates That Open, LLC Printed in China for GTO Estate Intercom/Keypad Features Keypad • The keypad illuminates beeps press key. night, keypad will illuminate when proximity sensors detect motion near keypad face. • When a valid code entered, the...
- Page 4 FCC WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
- Page 5 Keypad and Base Unit Used to connect the keypad to gate opener control board (hard-wired installations). Overview Power Input: To connect keypad to gate opener power source (hard-wired Calling Light: installations). DIP Switches: Turns RED when calling; turns Match keypad DIP switch settings to GREEN when call is answered.
- Page 6 You will need to hard-wire your keypad to the gate opener if you: • Do NOT have a GTO Entry Transmitter. • Have a GTO Access Systems GP Series gate opener. • Live in an area with high radio frequency interference.
- Page 7 Step 1: At the gate, set the keypad DIP switches to match your Entry Transmitter’s DIP switch settings. NOTE: If you have not adjusted your gate opener’s Entry Transmitter from the factory setting, see the “Personalize Transmitter Settings” section in your gate opener’s installation manual.
- Page 8 rev - 12/01/10...
- Page 9 This keypad and base unit are synced at the factory to communicate with each other. This base unit is considered to be “unit #1” when adding more base units to the system. 5. Sync Additional Base Units (optional) If you purchased additional base units (F3101MBC), you must sync each additional unit with the keypad so they can communicate.
-
Page 10: Hard-Wired Installation
• If more than 20 key presses are entered without matching any Entry Codes, the STATUS light will flash rapidly, the error tone will sound for 1 second, and the keypad will go into “lock-down” mode for 40 seconds. • If more than 10 seconds elapse between key presses, the keypad will beep 3 three times and go into “idle”... - Page 11 Please retain those records. The contents of all material available on this installation manual are copyrighted by Gates That Open, LLC (“GTO”), unless otherwise indicated. All rights are reserved by GTO, and content may not be reproduced, downloaded, disseminated, published, or transferred in any form or by any means, except with the prior, written permission of GTO. Any reprinting of GTO...
- Page 12 Copyright infringement is a violation of federal law. GTO®, GTO/PRO®, Mighty Mule® are registered trademarks of GTO - Gates That Open, LLC. GTO Access Systems™ is a trademark of GTO - Gates That Open, LLC. These marks are the exclusive property of GTO - Gates That Open, LLC (“GTO”). All rights are reserved by GTO, and these marks may not be used, in any form, without the prior, written permission of GTO.
