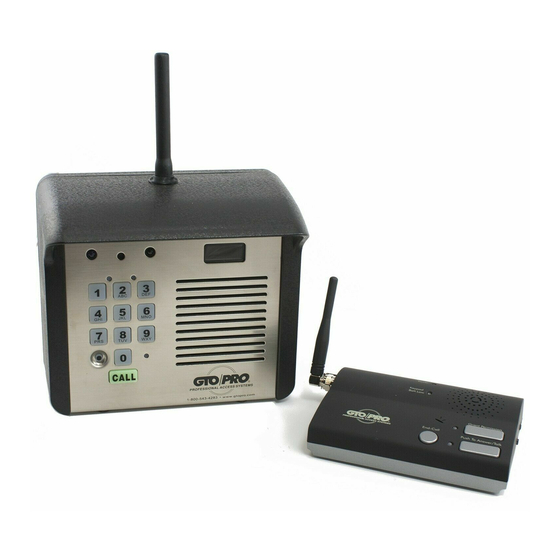

F3100MBC
Wireless Estate Intercom
WIRELESS
G
F
H
How it Works:
A visitor without an entry code presses the CALL button on
the keypad. The base (indoor) unit and the keypad will ring.
A user at the base (indoor) unit answers the call by pressing
the PUSH TO ANSWER/TALK button. The user at the base
unit then presses the GRANT PERMISSION button to allow
the visitor to operate the gate. The keypad's GRANTED
light comes on, indicating that the visitor can now push any
number key on the keypad to open the gate.
Visitors with access codes simply use their code to operate
the gate. Temporary codes can be programmed to expire
within a set number of days.
GTO–Gates That Open, LLC • 3121 Hartsfield Road • Tallahassee, Florida 32303
Telephone (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com • www.gtoaccess.com
rev - 12/01/10
Installation Manual
A
B
D
PROFESSIONAL RESIDENTIAL

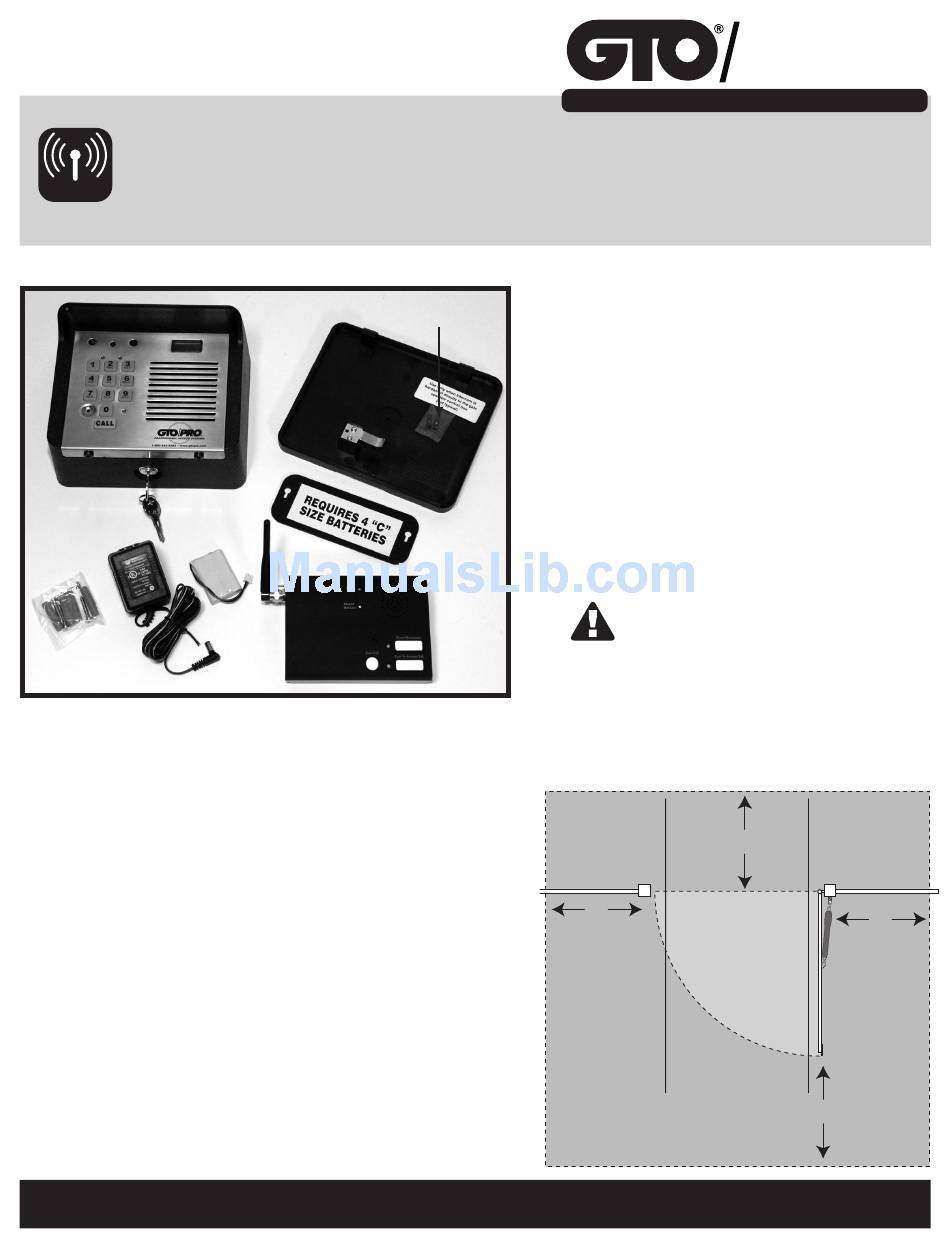

Kit Includes:
C
A. Keypad
B. Keypad Cover
C. Jumper (required for hard-wired installation)
D. Keypad Battery Cover
E. Base Unit
F. Base Unit Rechargeable Battery
G. Transformer
H. Screws for mounting Keypad Cover
E
NEVER install the keypad portion of this
system where a person can reach through
the gate to activate it, or where a person can
touch the gate while activating the keypad.
The
recommended
between the gate and keypad is 10 ft.
10'
NEVER INSTALL
any control device
within gray area
ACCESS
SYSTEMS
WARNING
minimum
10'
Moving Gate
Area
Driveway
©2010 Gates That Open, LLC
distance
10'
10'
Printed in China for GTO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO F3100MBC
Summary of Contents for GTO F3100MBC
- Page 1 Driveway NEVER INSTALL any control device within gray area GTO–Gates That Open, LLC • 3121 Hartsfield Road • Tallahassee, Florida 32303 Telephone (850) 575-0176 • Fax (850) 575-8912 • www.gtoinc.com • www.gtoaccess.com ©2010 Gates That Open, LLC rev - 12/01/10...
- Page 2 Estate Intercom/Keypad Features Keypad • The keypad illuminates and beeps at the press of any key. At night, the keypad will illuminate when the proximity sensors detect motion near the keypad face. • When a valid code is entered, the STATUS light will blink rapidly, the keypad will beep three times, and the GRANTED light turns green. • The keypad remains active for 40 seconds after entering a valid code: pressing any key on the keypad while the gate is in motion will stop the gate; pressing any key while the gate is stopped will cause the gate to reverse direction. After 40 seconds, the keypad will beep 3 three times and go into “idle” mode, and the GRANTED light will turn off. • If more than 20 key presses are entered without matching an Entry Code, the STATUS light will flash rapidly, an error tone will sound for 1 second, and the keypad will go into “lock-down” mode for 40 seconds. • If more than 10 seconds elapse between key presses, the keypad will beep 3 three times and go into “idle” mode. Master and Entry Codes • Up to 100 Entry Codes may be programmed into the keypad. • Temporary Entry Codes can be programmed to expire within one to seven (1–7) days. • Entry Codes remain stored in memory even when the keypad batteries go dead. • All Entry Codes are deleted by pressing the RESET button on the keypad; Master Code defaults to “1234.” Base Unit • The base unit is powered by a rechargeable battery (included); the charge is maintained by the transformer. • The base unit can be disconnected from the transformer allowing it to be moved anywhere within range. • Up to three additional base units can be added to the system. NOTE: The keypad, not the base station, initiates the call and operates the gate. The base station is for answering calls and granting “permission”...
- Page 3 Keypad and Base Unit Overview Relay Output: Used to connect the keypad to gate Presence Calling Light: opener control board (hard-wired Sensors Turns RED when calling; turns installations). GREEN when call is answered. Power Input: Granted Light: To connect keypad to gate opener power Turns GREEN when access source (hard-wired installations).
- Page 4 You will need to hard-wire your keypad to the gate opener if you: • Do NOT have a GTO Entry Transmitter. • Have a GTO Access Systems GP Series gate opener. • Live in an area with high radio frequency interference.
- Page 5 4. Program the Keypad • A Master Code is needed to add, remove, or program Entry Codes. • Factory default Master Code is “1234.” • Keypad can only enter “program” mode from “idle” mode. • Keypad will beep three times before going into “idle” mode (more than 10 seconds between key presses).
- Page 6 Intercom ID Codes This keypad and base unit are synced at the factory to communicate with each other. This base unit is considered to be “unit #1” when adding more base units to the system. 5. Sync Additional Base Units (optional) If you purchased additional base units (F3101MBC), you must sync each additional unit with the keypad so they can ID SET button communicate.
- Page 7 HARD-WIRED INSTALLATION You will need two pairs of 16 gauge (AWG) stranded, direct burial, low voltage wire (RB509), one pair to hard-wire the communication between the keypad and the gate opener, the other to exend the life of the four “C” batteries. NOTE: The four “C”...
-
Page 8: Troubleshooting
